Easy Installation Big P3.91 Magnet Front Service Led Display Panel
- 220.00 >=12 pieces
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Chip: | KN light; |
| Weight: | 7KG; | Supply Ability: | 1000 Square Meter/Square Meters per Month; |
| Usage: | Indoor; | Display Function: | Video; |
| Drive method: | 1/16 scan; | Certificates: | CE, RoHS; |
| Pixels: | 3.91mm; | Cabinet material: | die casting aluminum; |
| Cabinet size: | 500x500mm; | Model Number: | SRY-I-P3.91; |
| Port: | Shenzhen; | Place of Origin: | Guangdong China (Mainland); |
| IC: | ICN2038s; | Brand Name: | SRYLED; |
| Tube Chip Color: | Full Color; | Maintanence: | Front side; |
| Module size: | 250x250mm; | Packaging Detail: | 6-8pcs packed in 1pcs flight case.; |
| Screen Dimension: | customized; | Pixel pitch: | 3.91mm; |
Features
1, Seamless connection, Wireless led modules.
2, Special design for the mask to realize higher contrast and larger viewing angle.
3, Signal backup and power backup.
4, Brightness and chromaticity calibration.

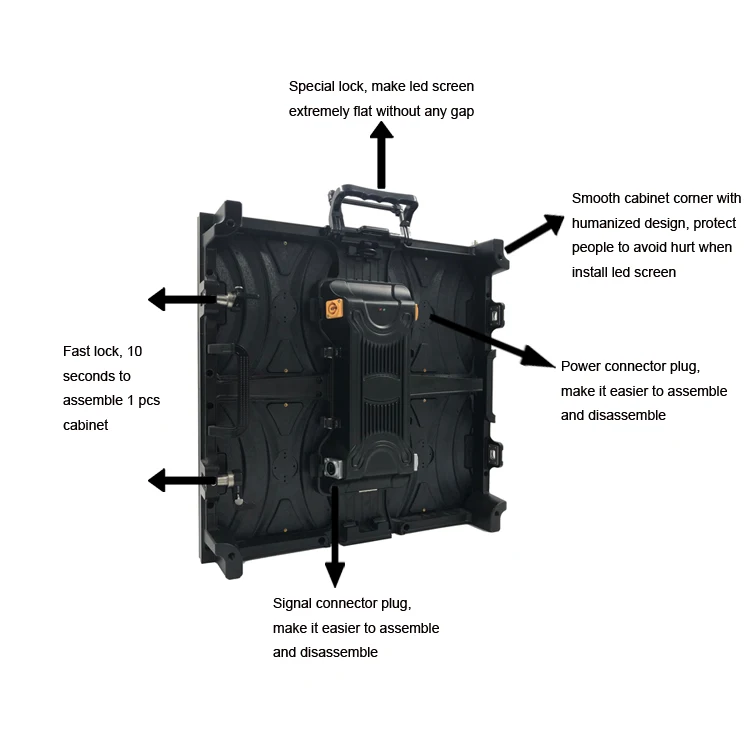

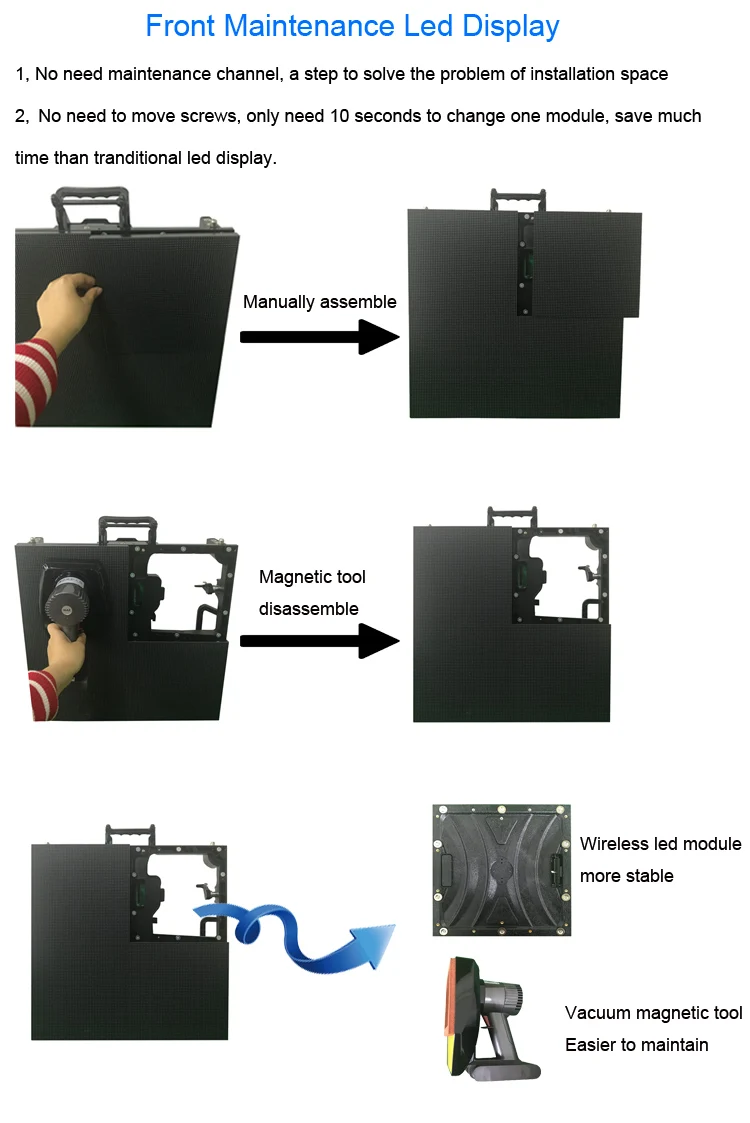

5, Can maintain from front side by magnetic tool.
Specification
Pixel Pitch | 3.91mm |
Pixel Density | 65536dots/sqm |
Color Configuration | 1R1G1B |
Module Size | 250mm x 250mm |
Module Resolution | 64dots x 64dots |
| Cabinet Material | Die casting Aluminum |
| Led Color | Black |
Brightness | 1200 cd/sqm, adjustable by software |
Viewing Distance | 4m-40m |
Viewing Angle | H: 140°; V:140° |
Refresh Rate | 2880HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10%, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30℃~+70℃ |
Working Temperature | -20℃~+50℃ |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP43 |
Operating Humidity | 10%~90% RH |
Certificate | CE, RoHS |

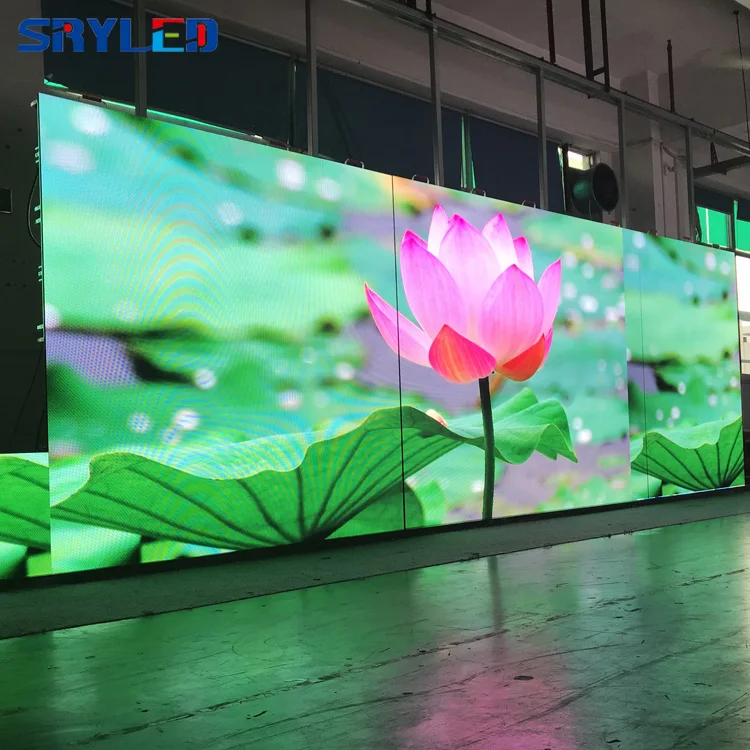

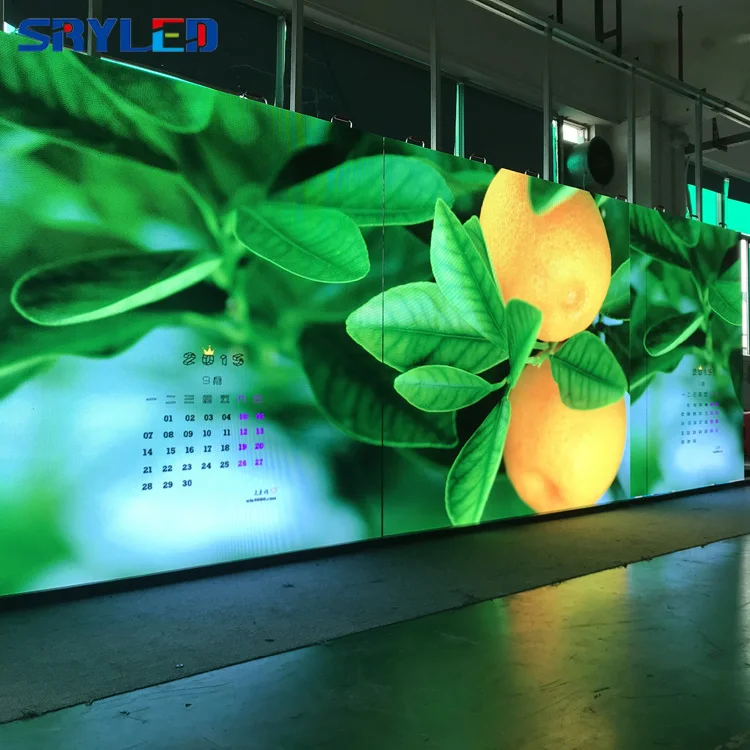

You can use P3.91 indoor rental led display in concert, stage background, meeting room, resturant, exhibition etc.
