Huidu HD-R512/R516/R320 LED display receiving synchronous and asynchronous control system card Products from Shenzhen Caixin Technology Co., Ltd.

Product Details

payment terms:	Western Union, T/T, MoneyGram	Packaging Details:	Aton box
port:	hub 12	Origin:	China

Product Description

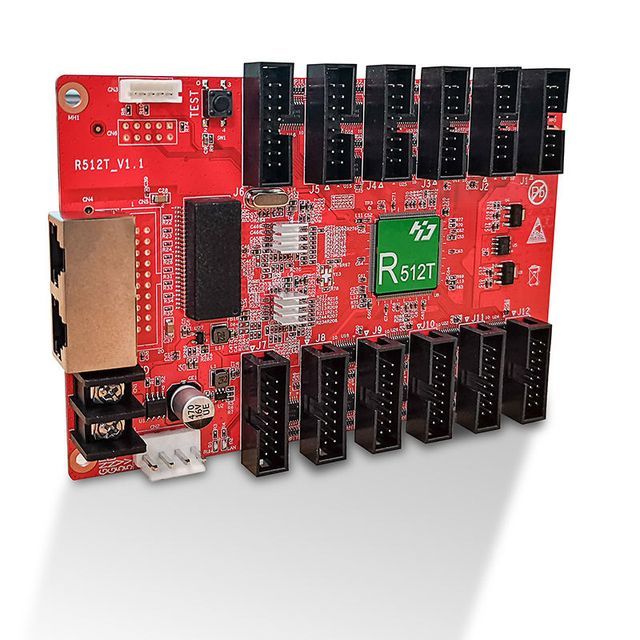

HD-R512
Function
parameter
use sending card
Dual-mode sending box, asynchronous sending card, synchronous sending card, VP series video processor.
module type
Compatible with all common IC modules, supports most PWM IC modules.
scanning method
Support any scan mode from static to 1/64 scan
communication method
Gigabit Ethernet
Control range
Recommended: 65,536 pixels (128*512)
Outdoor module width ≤ 256, indoor module width ≤ 128
Multi-card connection
Receiving cards can be placed in any order
grayscale
256~65536
smart settings
Smart settings can be completed in a few simple steps, and can be set to be aligned with the screen through the screen layout
unit board
test function
The receiving card integrates the screen test function to test the display brightness uniformity and the flatness of the display module.
Communication distance
Category 5 and Category 6 network cables within 80 meters
port
5V DC power supply*2, 1Gbps network port*2, HUB75E*12
Input voltage
4V-6V
strength
5W

HD-R516

Function
parameter
use sending card
Dual-mode sending box, asynchronous sending card, synchronous sending card, VP series video processor.
module type
Compatible with all common IC modules, supports most PWM IC modules.
scanning method
Support any scan mode from static to 1/64 scan
communication method
Gigabit Ethernet
Control range
Recommended: 131,072 pixels (128*1024)
Outdoor module width ≤ 256, indoor module width ≤ 128
Multi-card connection
Receiving cards can be placed in any order
grayscale
256~65536
smart settings
Smart settings can be completed in a few simple steps, and can be set to be aligned with the screen through the screen layout
unit board
test function
The receiving card integrates the screen test function to test the display brightness uniformity and the flatness of the display module.
Communication distance
Category 5 and Category 6 network cables within 80 meters
port
5V DC power supply*2, 1Gbps network port*2, HUB75E*16
Input voltage
4V-6V
strength
5W
HD-R320
Function
parameter
suitable for sender
Dual mode play box, asynchronous controller,
Synchronous sending card, three-in-one video processor
module type
Compatible with all common IC modules, supports most PWM IC modules.
scanning method
Support any scan mode from static to 1/64 scan
communication method
Gigabit Ethernet
Control range
Recommended: 98,304 pixels (128*768)
Recommended width pixels≤128
Multi-card connection
Receiving cards can be placed in any order
grayscale
256~65536
smart settings
Smart settings can be completed in a few simple steps, and the screen layout can be set to be arbitrarily aligned with the screen
unit board
test function
The receiving card integrates the screen test function to test the display brightness uniformity and the flatness of the display module.
Communication distance
Category 5 and Category 6 network cables within 80 meters
port
5V DC power supply*2, 1Gbps network port*2, HUB320*8
Input voltage
4.2V-5.5V
strength
5W
