Hot Sale LED Video Panel Full Color P3 Indoor Outdoor Church LED Display LED Screen
- 8.00 >=40 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| type: | Driver IC | payment terms: | Western Union, T/T, Paypal |
| size: | 192*96mm | Origin: | Guangdong, China |
| port: | Shenzhen | pack: | SMD 2121 |
| brand: | CVT | Supply capacity: | 10000 pieces per day |
| Packaging Details: | Aton box | Pixel resolution: | 64*32 points |

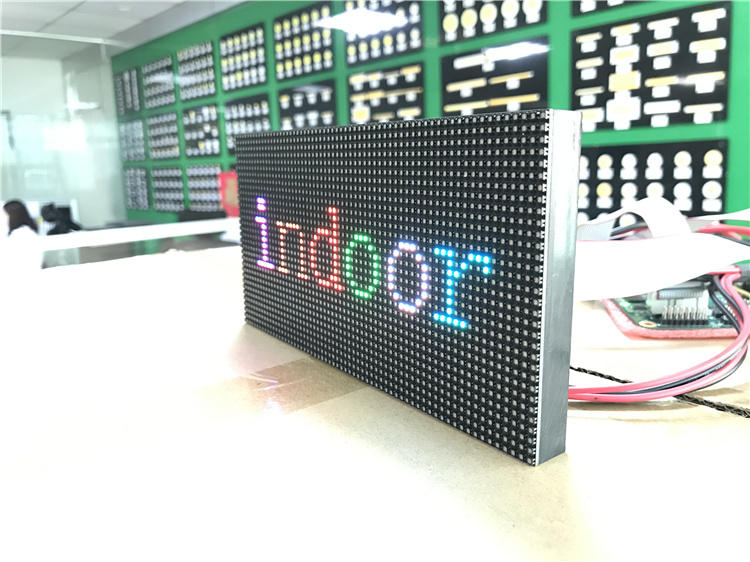

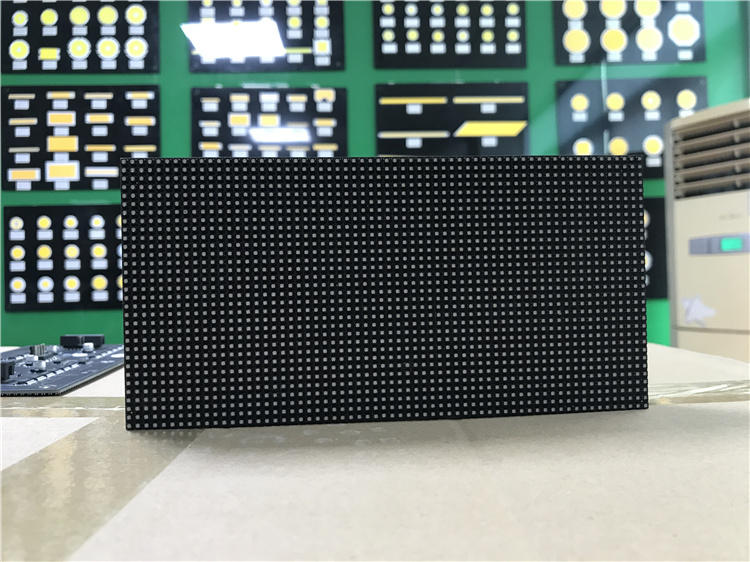

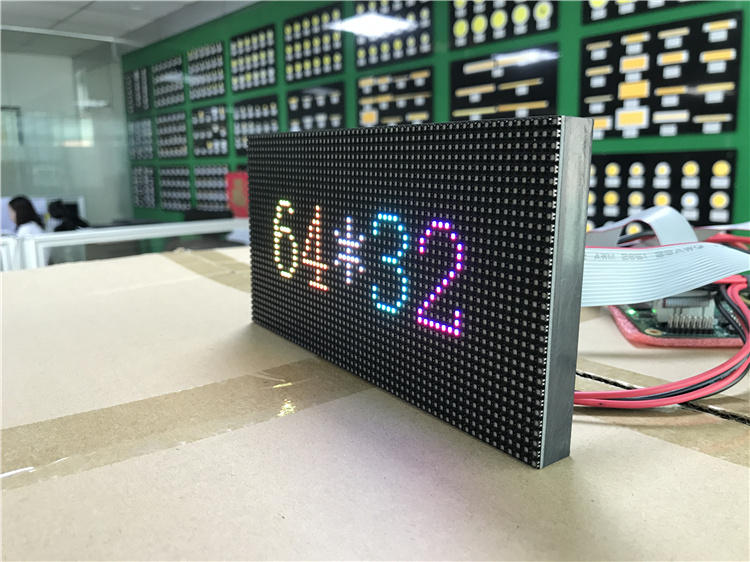

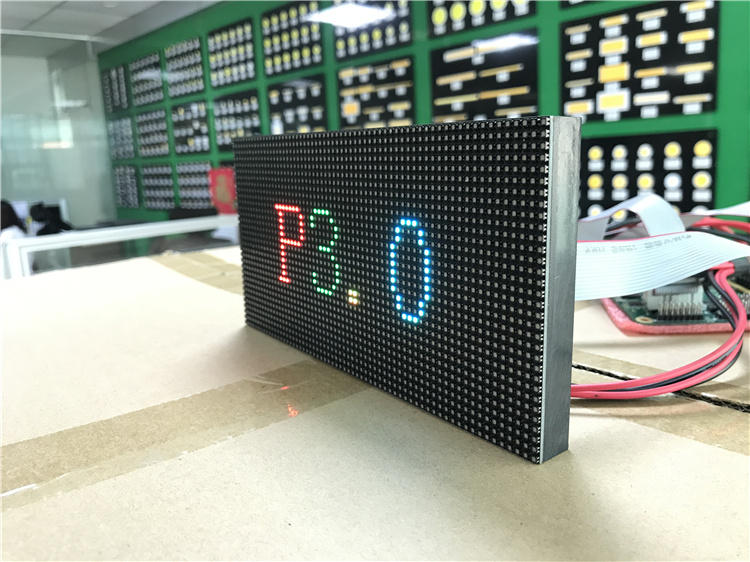

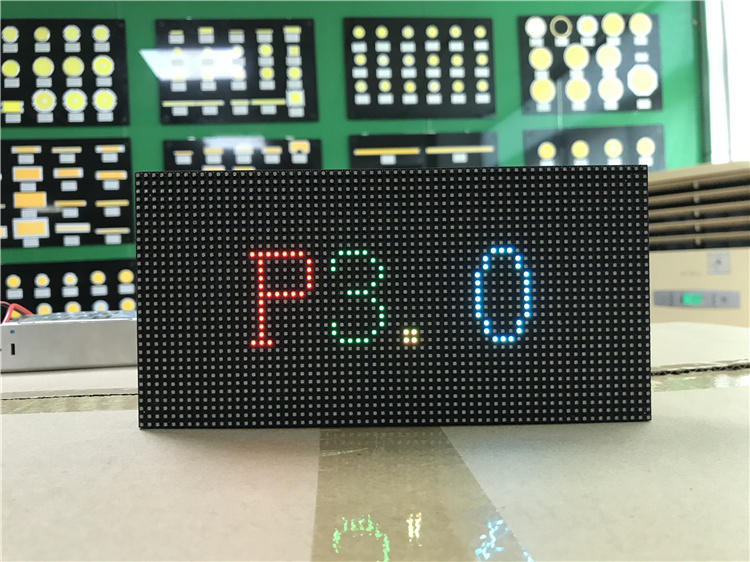

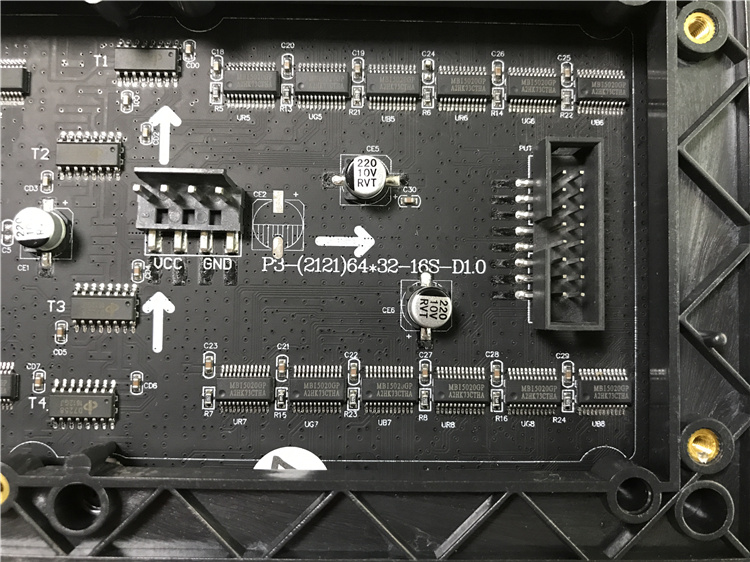

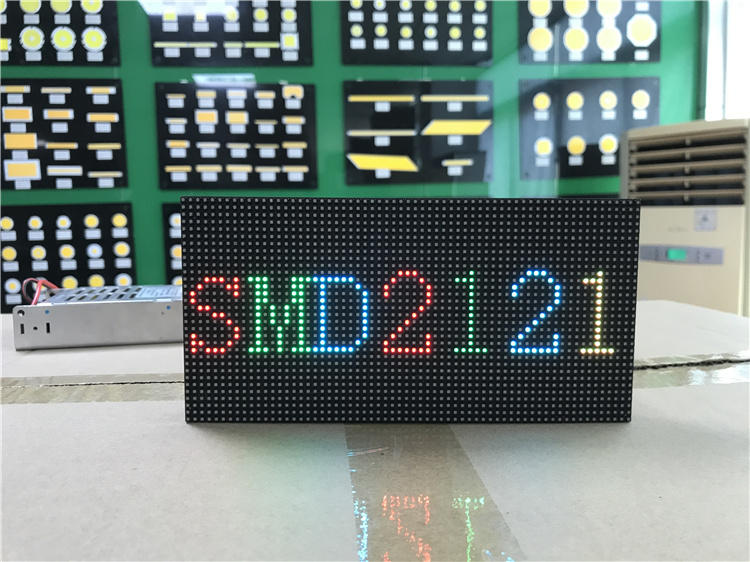

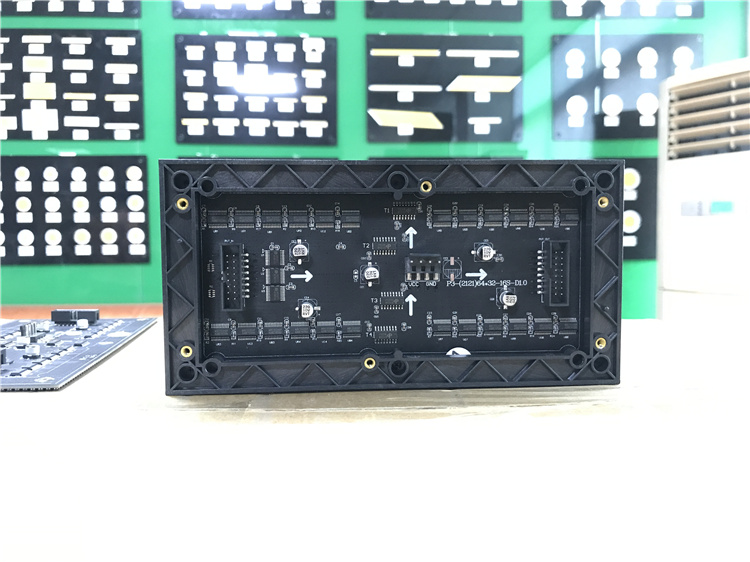

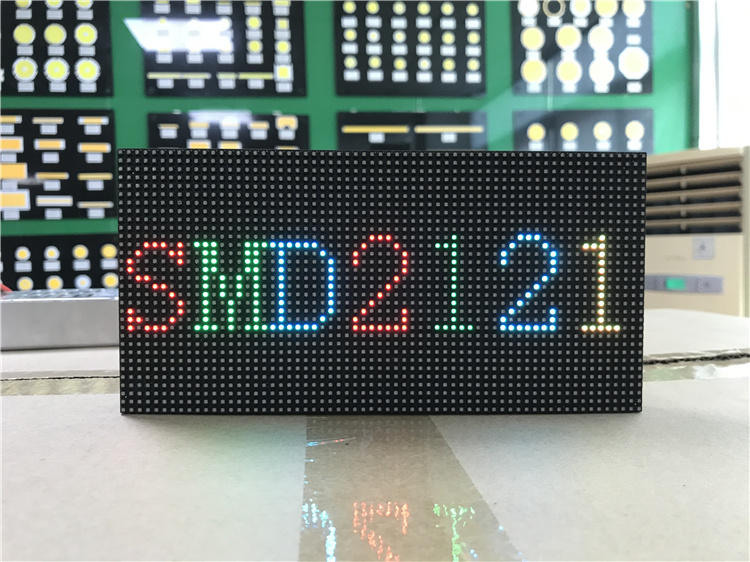

detailed picture

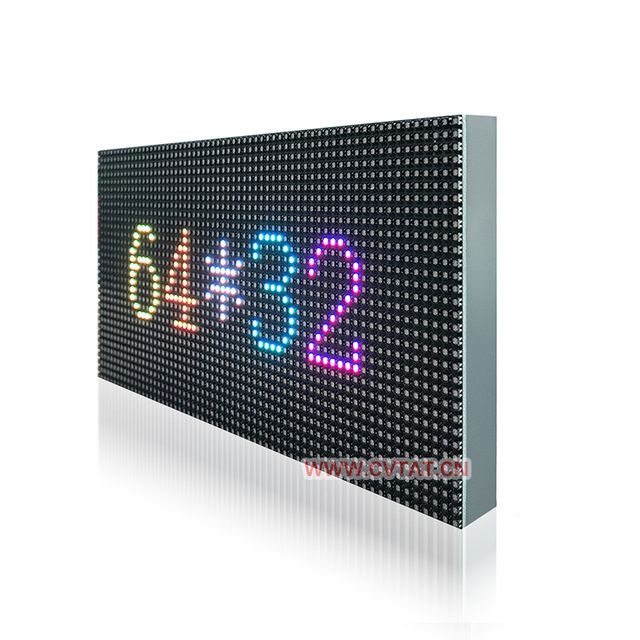

Hot Sale LED Video Panel Full Color P3 Indoor Outdoor Church LED Display LED Screen
unit module | thing | scope |
model | P3-16S | |
module size | 192mm*96mm | |
pixel pitch | 3mm | |
pixel density | 111111/㎡ | |
pixel configuration | 1R1G1B | |
unit module | Encapsulation | SMD 2121 |
pixel resolution | 64 points (width)*32 points (height) | |
Maximum power | 23W | |
weight | 0.16 kg | |
drive type | constant drive | |
scanning method | 1/16 scan | |
port type | Hub 75E | |
white balance brightness | ≥1200cd/m2 | |
Operating Voltage | DC 5V | |
average power consumption | <270W/㎡ | |
Maximum power consumption | <680W/㎡ | |
current | <18mA (single LED) | |
drive unit | Constant current driver IC | |
refresh rate | >1920HZ | |
strength | grayscale/color | |
strength | 16384 levels of grayscale/16.7 million colors | |
MTBF | >9000 hours | |
switch; power switch | automatic switch | |
The main technical parameters | drive unit | Constant current driver IC |
The main technical parameters | refresh rate | >1920HZ |
grayscale/color | ||
65536 levels of grayscale/16.7 million colors | ||
MTBF | >9000 hours | |
switch; power switch | automatic switch |
