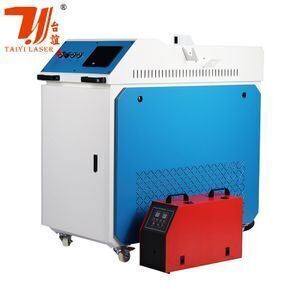

1000W 1500W 2000W Handheld Laser Welders Portable Fiber Laser Welding Machine

Product details
Weight (KG):200;Machinery Test Report:Provided;
Place of Origin:Guangdong China;Showroom Location:Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia;
Laser power:1000W 1500W 2000W optional;Laser Head Brand:Qilin;

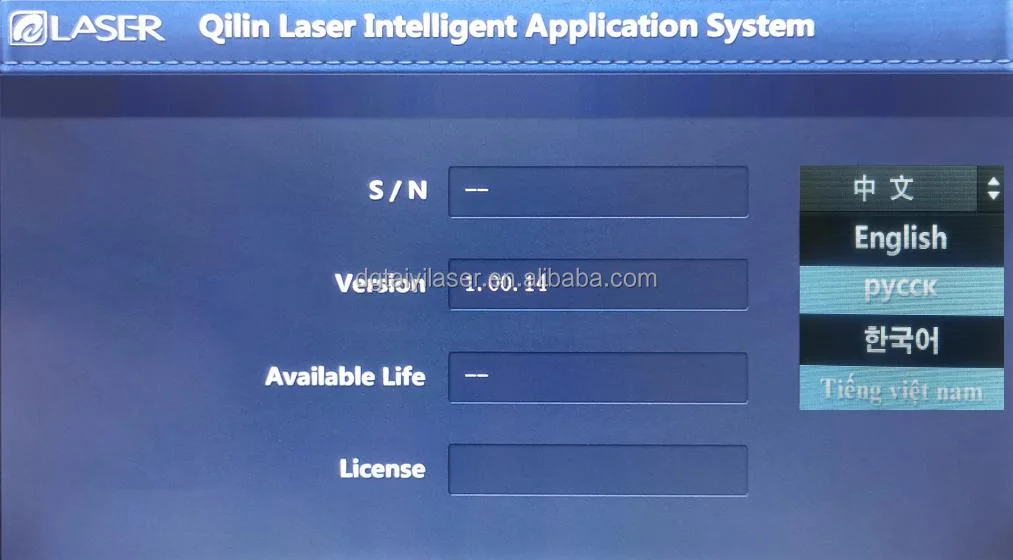

Product name:Handheld laser welding machine;Control System:Qilin Control System;
Application material:Metal;Single package size:100X150X150 cm;
Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Restaurant,Construction works ,Energy & Mining,Advertising Company;Cooling System:Water Cooling;
Dimensions:600*1200*1200mm;Power Supply:220V/50Hz/60hz;
Core Components:Laser Source;Selling Units:Single item;
Key Selling Points:Easy to Operate;Warranty:2 years;
Laser source:TAIYI Brand;Video outgoing-inspection:Provided;
Packaging Detail:High standard wooden case with international export standard;Usage:Metal Welding;
Laser type:Fiber Laser;Single gross weight:200.0 KG;
Condition:New;Certification:ce;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;Marketing Type:Ordinary Product;
Local Service Location:Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;Max. Output Power:1000W/1500W/2000W;
Laser wavelength:1070nm;Welding head:Qilin;
After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Wavelength:1070nm;
Laser Source Brand:TAIYI;Warranty of core components:2 years;
Brand Name:TAIYI;

1000W 1500W 2000W Handheld Laser Welders Portable Fiber Laser Welding Machine

Product Name Handheld Laser Welding Machine
Laser Power   1000W 1500W 2000W(optional)
Laser Source TAIYI(optional)
Welding Head Qilin BWT15(optional)
Laser Wavelength 1070nm
Pulse Width 0.5-15ms
Pulse Frequency ≤100Hz
Spot adjusting range 0.1-3mm
Repeating precision ±0.01mm
Cabinet size 600*1200*1200mm
Cooling System Water Cooling
Voltage 220V/3-Phase/50Hz





+

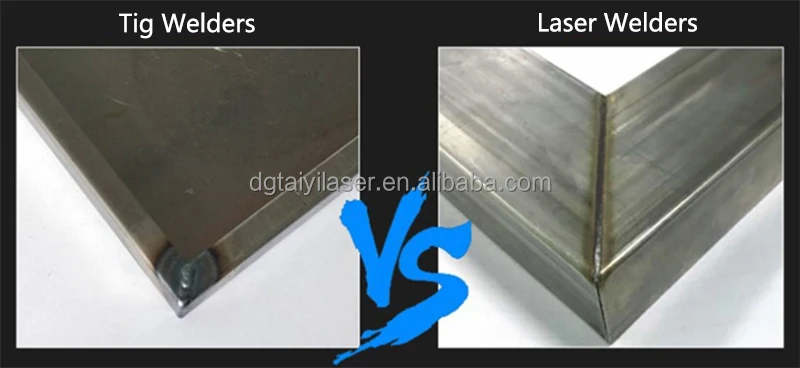

  Tig Welders Laser Welders
Heat input Very high heat Very low calories
Deformation Easy to deform No deformation
Welding spot Large welding spot Fine welding spot, adjustable spot
Exterior Unsightly, need polishing Smooth and beautiful, no need to sand
Perforation Easy to pierce Not easy to perforate, can be controlled
Protective gas Need argon Need argon
Precision general Precision
Processing time Long time Short time
Safety Ultraviolet light, radiation Radiation-free

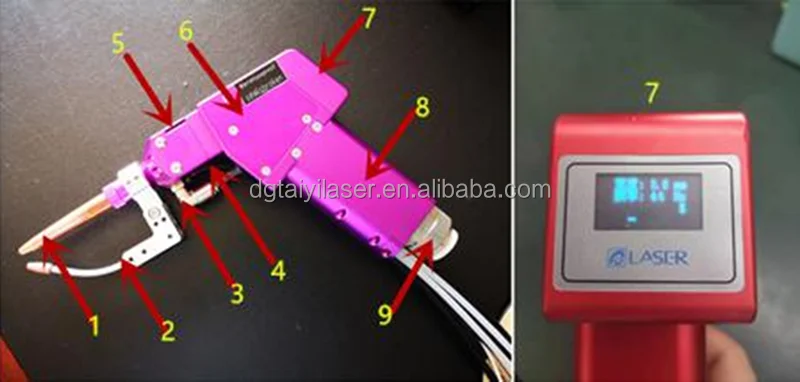

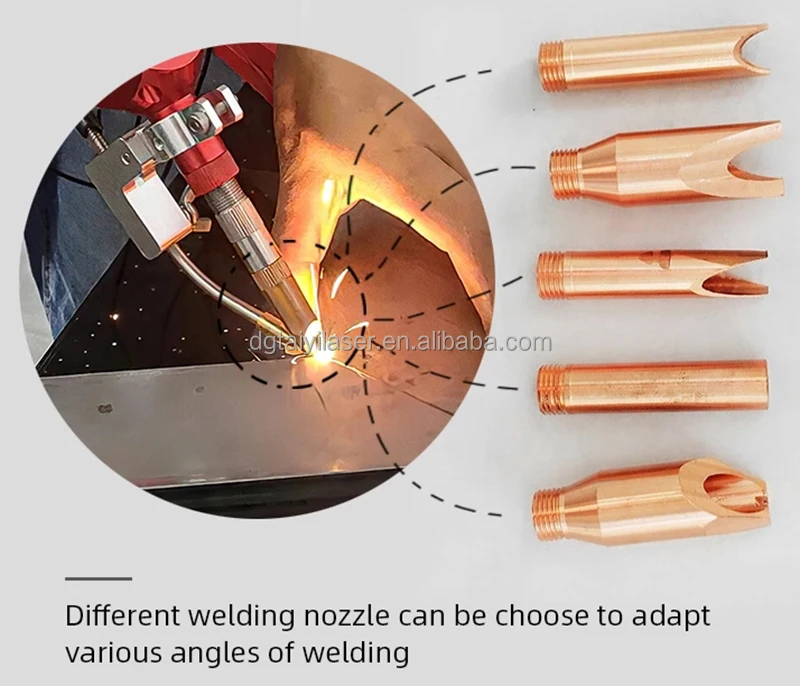

1. Nozzle

Customer can change the corresponding nozzle according to different welding processes, and can twist the copper nozzle to adjust the focal length, and the adjustable range of the focal position is ±15mm.

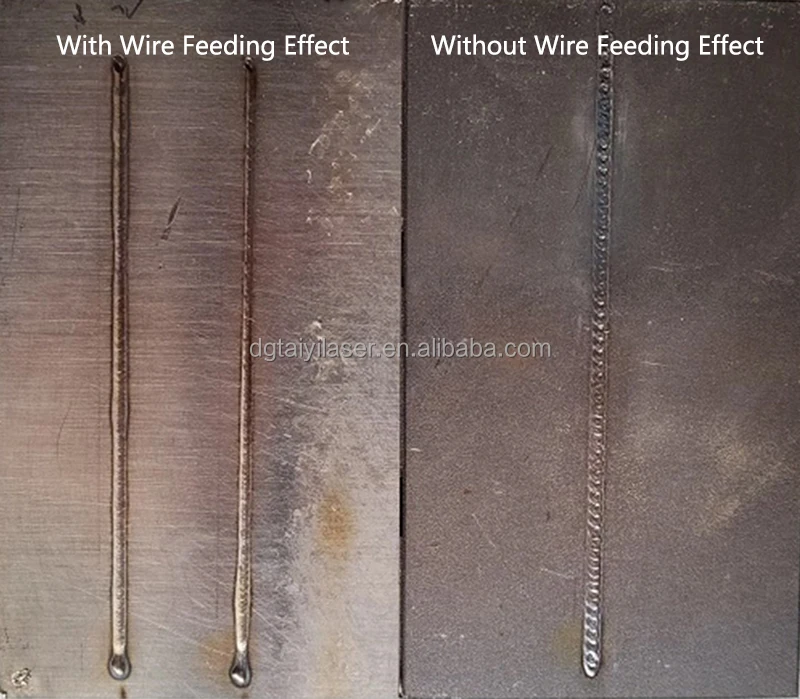

2. Wire Feeding Device:

Lightweight bend wire feeding structure, wire feeding Angle position can be adjusted conveniently.



3. Trachea Interface

Protective gas inlet.



4. Lead Signal Line

It is communicated with copper nozzles. When welding, contact with iron plate ground wire will produce a circuit, which plays a role of safety protection.



5. Protective Lens Mounting Port

The protective lens is equipped with water-cooled structure, so the protective lens can last longer. It is recommended to wipe the dust of protective lens once a day with alcohol-free cotton swab.



6. Circulating Water Channel

Cold water circulating structure is used to cool the reflector and gun body.

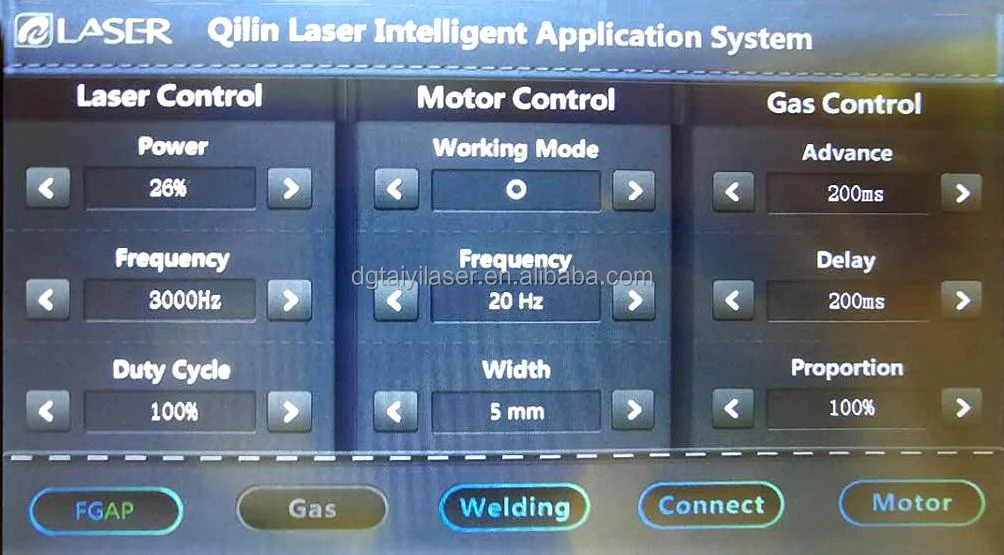

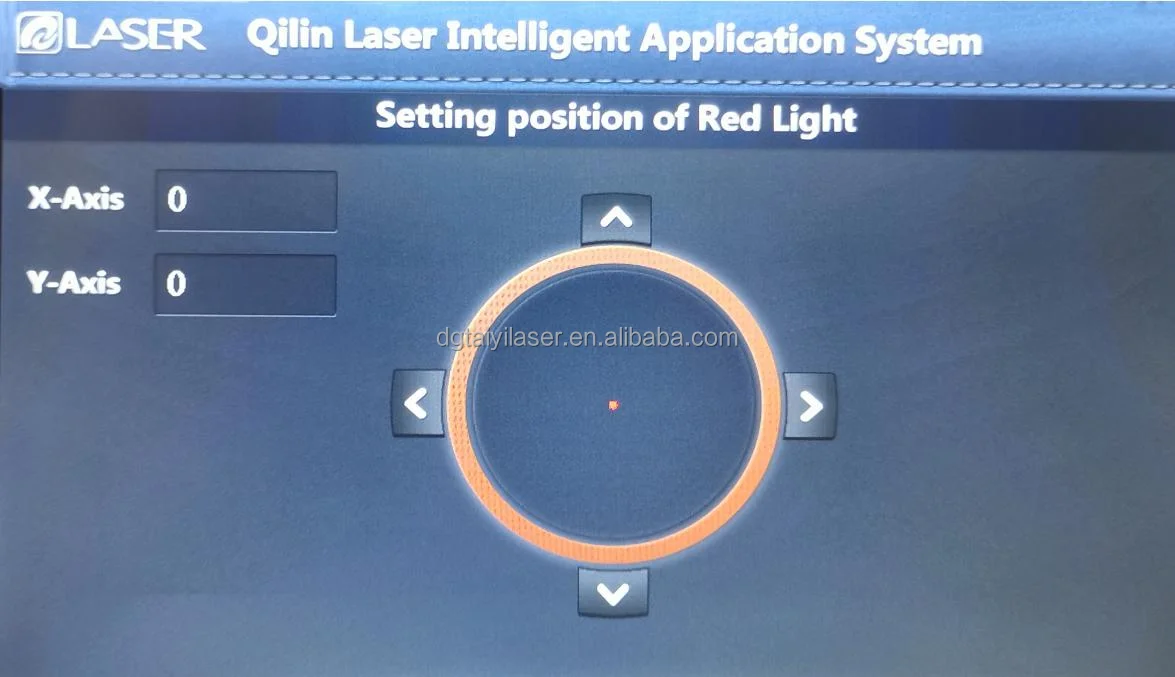

7. LCD

Used to show whether the parameters and signal state set by the system are normal.



8. Gun Handle

Aluminum a process, light and light grip comfortable.

After changing the structure of head and the position of the trigger button, it can be  used for both left and right hands.



9. QBH Protective Cover

Connect with the laser end, pay attention to cleaning during installation to avoid dust entering the gun body.

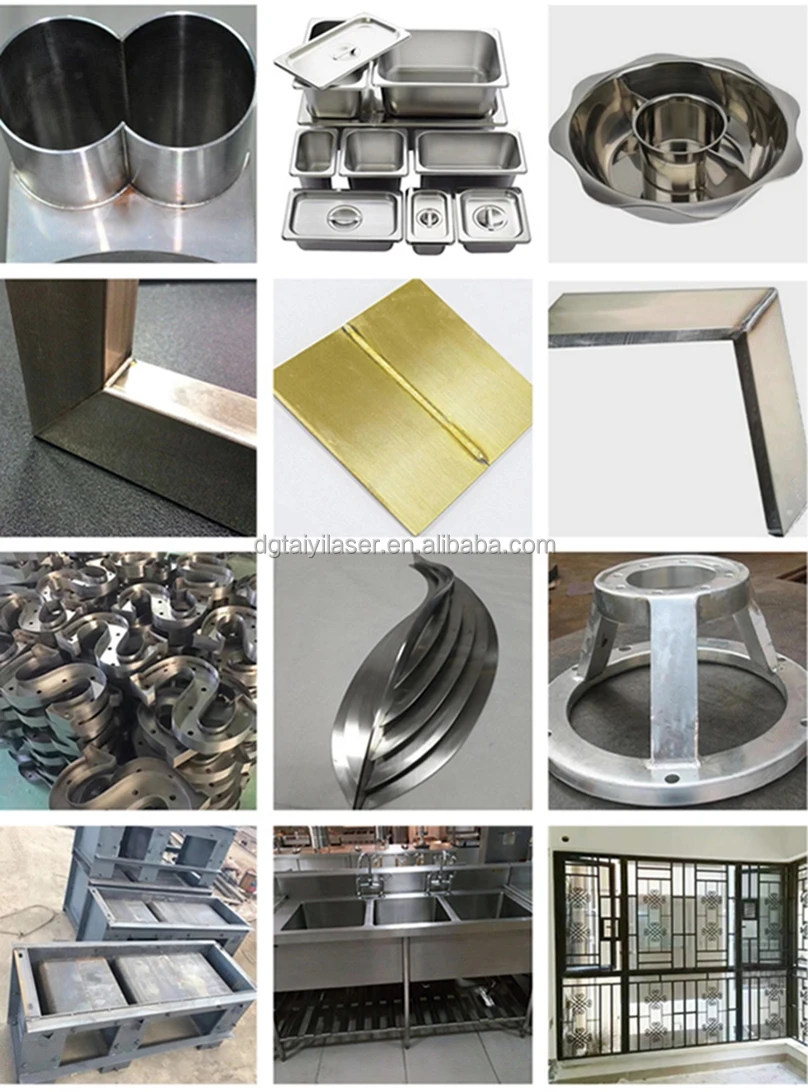

Application Industries:

Machine shell sheet metal welding,Kitchen cabinets,staircase elevator,Food Machinery,shelf, oven,stainless steel door,window guardrail,distribution box,medical equipment,communications equipment,craft gifts,household and other industries.

Application Materials:
Stainless steel, copper, aluminum, gold, chromium, silver, titanium, nickel and other metals or alloys, it can also be used for a variety of welding between different materials.



1.After Sales

We provide 1-3 year’s guarantee and life-long maintenance for our products. Free repairing or replacement (except for wearing parts) is available for our products for their functional defects (except for artificial or force majeure factors) within warranty period. After warranty period, we only charge artifacts according to the actual situation.



2.Quality Control

Skilled and strict Quality Inspection Team is available during the material purchasingand production procedure.

All finished machine we delivered are 100% strictly tested by our QC departmentand engineering department.

We will provide detailed Machine pictures and Test videos to customers before delivery.



3.OEM Service

Customized and OEM orders are welcome due to our aboundant experiences.All the OEM services are free, customer only need to provide us with your logodrawing. function requirements, colors etc.

No MOQ required.



4.Privacy

None of your personally identifiable information ( such as your name, address, emailaddress, bank info, etc ) will be disclosedor shared with any third partes.

Contact All of your inquiries or questions or helps will be answered within 24 hours,even in holiday. Also, please feel free to call us if you have any emergency questions.



5.Payment terms

Alibaba Trade Assurance ( New,safe and popular payment terms)

30% T/T paid in advance as deposit, the balance paid before shipment.

lrevocable LC at sight.

Other payment terms: Paypal,Western Union and so on.



6.Documents Support

All Documents for clearance customs support : Contract ,Packing list,CommercialInvoice,Export declaration and so on.

Dongguan Taiyi Laser Technology Company Limtied was founded in 2001 . We have an outstanding technical team with 20 years of manufacturing experience.It is a high-tech comprehensive laser machinery and equipment manufacturer in laser industry,specializing on theteaching ,researching,development,production and sales.

We have established 3 standardized Intelligent equipment manufacturing factories,which are respectively located in Dongguan Guangdong,Huanggan Hubei and Gujarat India.Our product includes laser marking machine ,laser welding machine,laser cutting machine and laser cleaning machine.Our after service network has already covered more than 100 countires.
