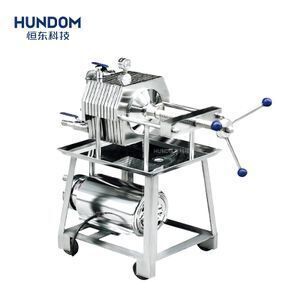

Stainless steel automatic Beer/wine/oil plate and frame filter press equipment

Supplier: Guangzhou Hundom Machinery Equipment Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Nicole Chen
Price: $700.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	According to model;	Machinery Test Report:	Provided;
Usage:	Food ,chemical ,pharmaceutical ,ects;	Video outgoing-inspection:	Provided;
Flow:	1-8t/h;	Packaging Detail:	plywood case;
Marketing Type:	New Product 2020;	Supply Ability:	100 Set/Sets per Month;
Outlet:	19-32mm;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Food & Beverage Shops;
Local Service Location:	None;	Material:	SS304 and SS316;
Warranty:	1 Year;	Core Components:	Engine;
Brand Name:	HUNDOM;	Automatic Grade:	Semi-automatic;
After-sales Service Provided:	No overseas service provided,Online support;	Membrane filter:	0.8um;
Filter layer:	10;	Showroom Location:	None;
After Warranty Service:	Video technical support,Online support;	Warranty of core components:	3 years;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Port:	Guangzhou/shenzhen;
Voltage:	220v/380v/customized;	Name:	Plate and frame filter machine;
Condition:	New;	Place of Origin:	China;
Inlet:	19-50mm;	Power:	1100-2200;

Product Description

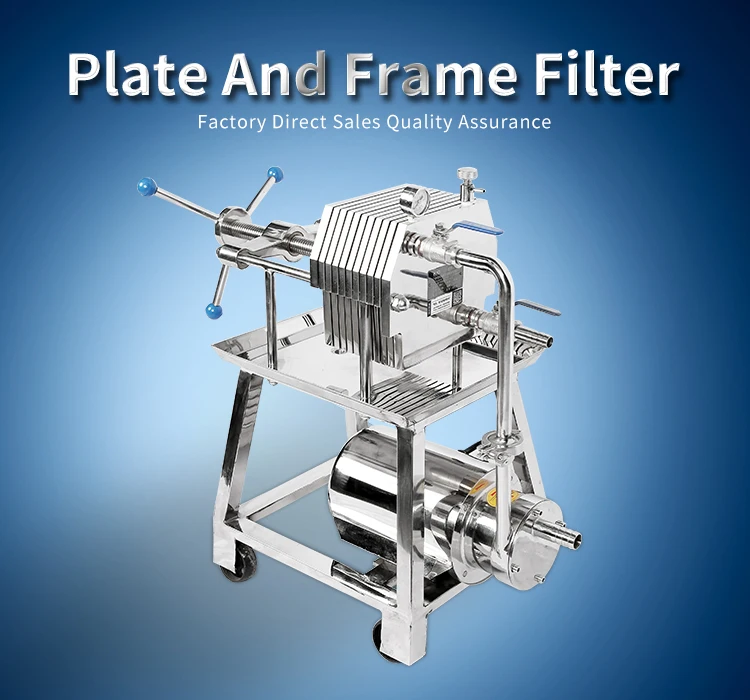

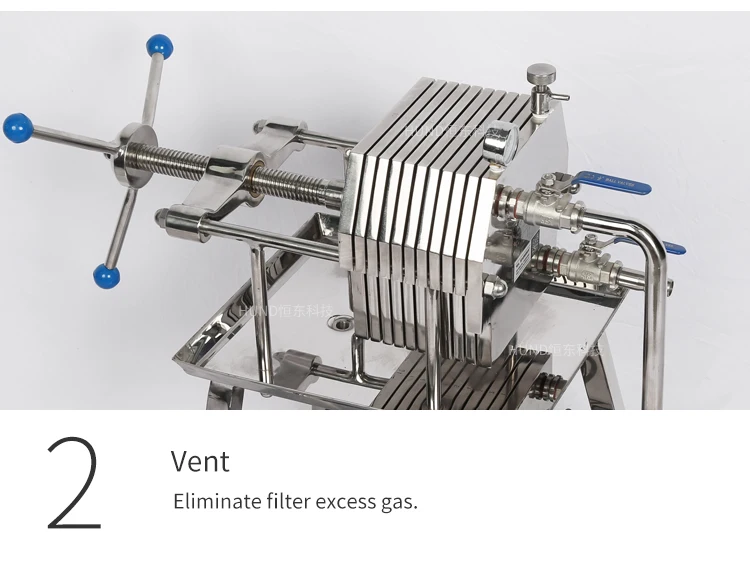

Stainless steel automatic Beer/wine/oil plate and frame filter press equipment

Working principle:

The equipment is multi-layer plate frame filter, which is applicable to the process operation with the requirements of fine filtration and semi-fine filtration such as purification,sterilization and defecation with sealed filtration in the liquid with low viscosity and little slagging content under the concentration of 50%. By directly adopting microporous filtration film,it can realize the sterile filtration without passing the microporous film.The equipment has characteristics such as large filtration area,large flow and wide applicable range, so it is widely used in the fields of pharmacy, chemical industry and food etc. The effect will be better if used for filtration of injection liquid medicine in pharmacy factories.

Technical Parameters:

Model	DL-150	DL-200	DL-300	DL-400
Filter plate diameter	150	200	300	400
Layer No.	10	10	10	10
Flow	1.5T/h	3T/h	5T/h	8T/h
Power(kw)	0.75	1.1	1.5	2.2
Weight(kg)	156	175	226	157
Length	600	650	650	700
Width	500	500	500	600
Height	800	900	1050	1200
