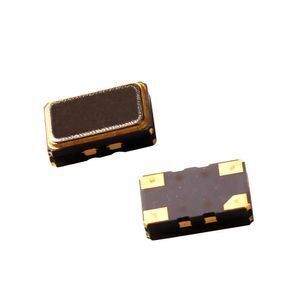

3225 0.5PPM 28.8MHz Temperature Compensated SMD TCXO

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.69 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Frequency:	28.800MHz;	Package:	Tape and Reel;
Pushing (MHz/V):	/;	Voltage - Supply:	3.3v;
D/C:	/;	Current - Supply (Max):	/;
Shipment:	DHL, UPS, TNT,Fedex, EMS,China Post;	Supply Ability:	100000 Piece/Pieces per Month;
Supplier Type:	Original manufacturer;	Port:	Shenzhen;
Base Resonator:	/;	Model Number:	WTL2.02583ZX;
Frequency Stability:	±0.5ppm;	Power (dBm):	/;
Tuning Voltage (VDC):	/;	Package Type:	Surface Mount,SMD;
Frequency Range:	10MHz-52MHz;	Cross Reference:	/;
Phase Noise Typ (dBc/Hz):	/;	Operating Temperature:	-30+85'C;
Cetificate:	ISO9001, ISO14001, RoHS;	Icc Max:	/;
Factory:	Yes;	Load Capacitance:	10pF;
Item:	28.8MHz TCXO;	Place of Origin:	Guangdong China;
Warranty:	Global 180 Days Return;	Nominal Frequency:	28.800MHz;
Brand Name:	WTL;	Payment Terms:	L/C,T/T,Western Union;
Media Available:	datasheet;	Fan Out Type:	Clipped Sine Wave;
About Us:	20 Years Experience;	Payment:	T/T, Western Union, PayPal,Credit Card;
Application level:	Industrial;	Frequency - Center:	28.800MHz;
Brand:	oscillator;	Dimensions:	3.2*2.5mm;
Frequency Tolerance:	±0.5ppm;	Packaging Detail:	Tape and Reel, 3000pcs/Reel;

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

FEATURE

1. Typical 3.2*2.5*0.9 mm ceramic SMD package

2. For automatic assembly

3. Compactness and light weight

4. Low power consumption

5. VCTCXO available

6. Low thickness

ELECTRICAL SPECIFICATIONS

*3.22.5 mm SMD TCXO**
Item	Specifications
P/N	WTL2.02583ZX
Package	3.2*2.5 /4 SMD
Frequency	28.800MHz
Supply Voltage	3.3V
Frequency Tolerance (at 25°C)	± 0.5ppm
Output	Clipped Sine Wave
Temperature Range	-30°C--+85°C
Aging(at 25°C)	± 1ppm/year maximum
