Wire&Cable Making Machine,250 Cage Type Stranding machine

Supplier: Chaohu Jinye Electrical Machinery Co., Ltd.
Region: Anhui, China
Contact: Mr. kevin diao
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Standard wooden case;	Model Number:	JLY250/400/500/630;
Color:	Customized;	Usage:	Stranding;
Brand Name:	JINYE;	Payment Terms:	L/C,T/T;
Delivery Detail:	Shipped in 90 days after payment;	Place of Origin:	Anhui China (Mainland);
Supply Ability:	100 Set/Sets per Year;	Port:	Shanghai;

Product Description

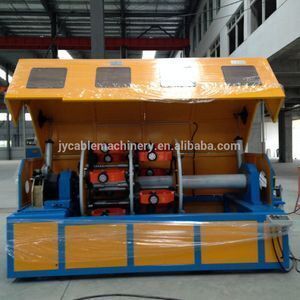

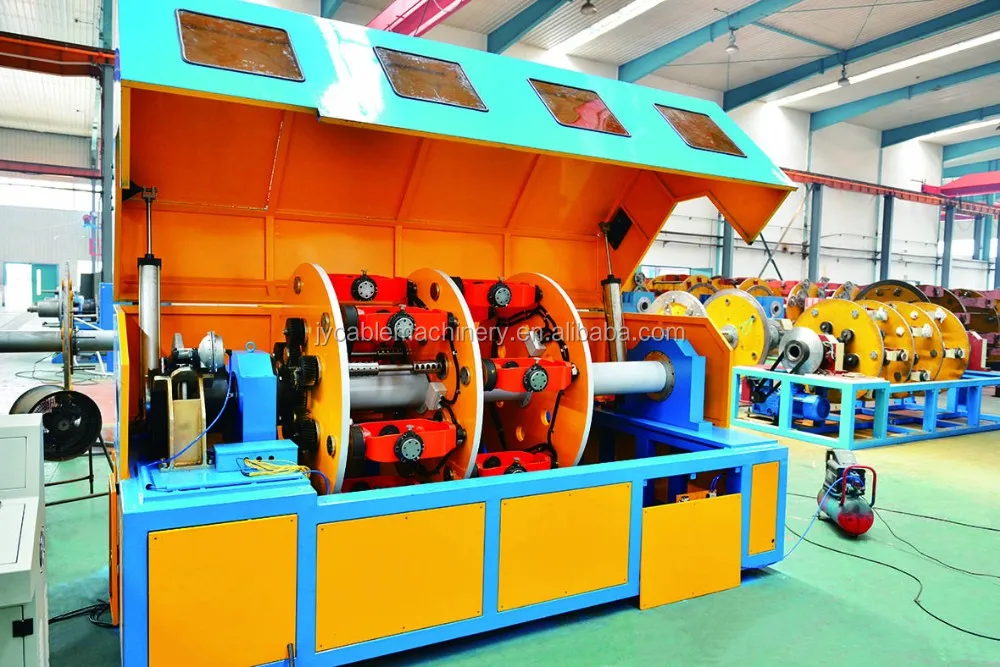

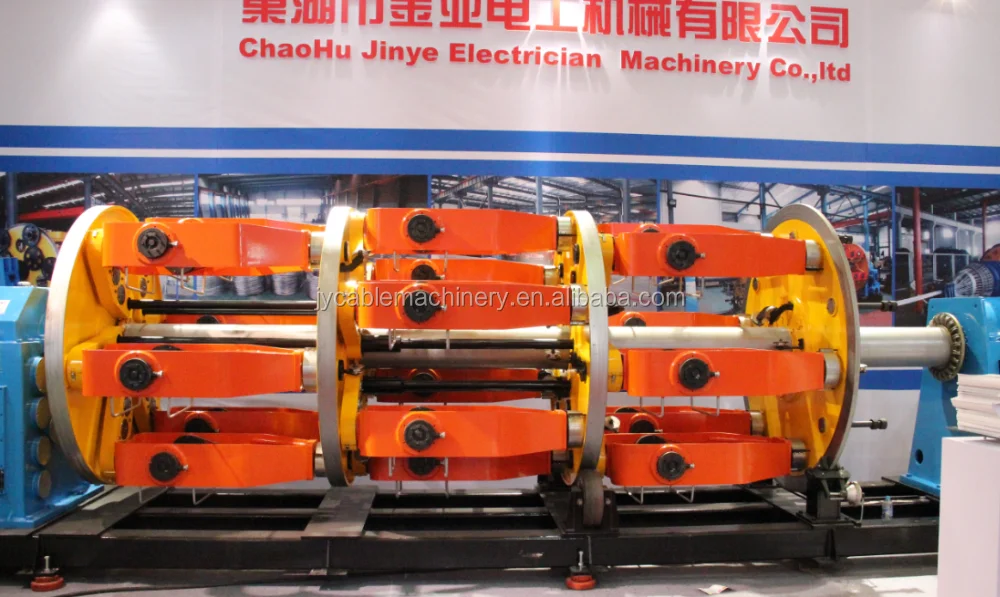

Wire&Cable Making Machine,250 Cage Type Stranding machine

The machine is used for stranding copper wires with backtwist, stranding large-section soft copper conductors, rubber-insulated wires, also for steel wire armoring.

Main Features
1.The main shaft is made of one seamless steel tube, supported by double-row roller bearings on both ends.

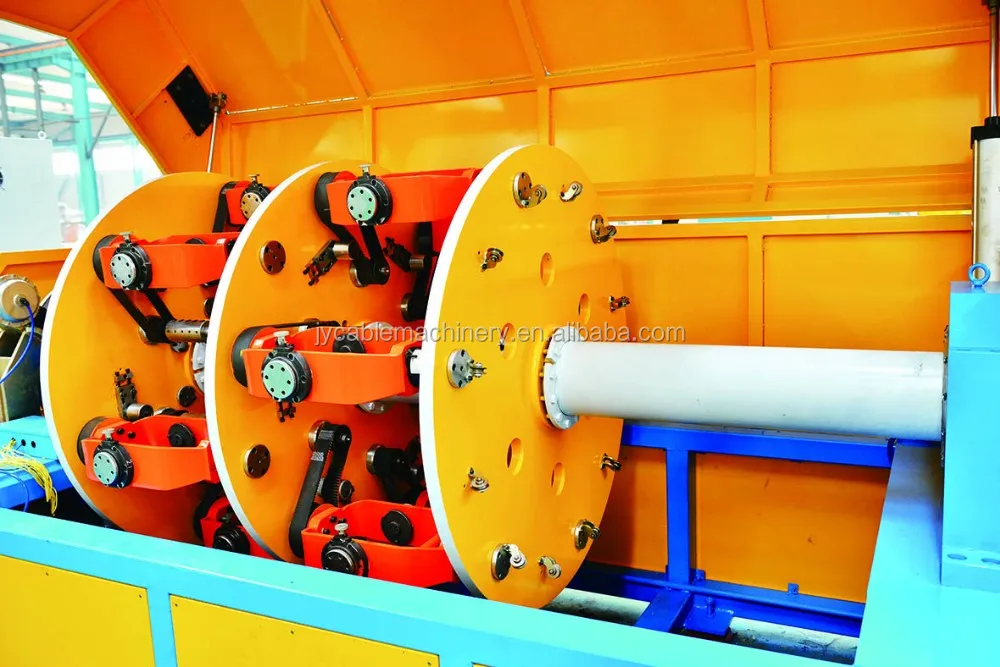

2.Each cradle is engaged by one group of gears with the backtwist gear which is around the main shaft to complete back-twisting motion. This gear system also eliminate of the cradle vibration in the case of cradle one-line connection transmission and accumulated error on the gear gaps.
3.The wire tension is controlled by electric-magnetic hysteresis brake, each wire tension is kept stable and balance through PLC control. The dog pin for the bobbin has spring inside, easily for loading and unloading the bobbin.

Main Technical Data

Model	Single wire dia. (mm)				Max. RPM of the cage (r/min)
Model	Cu	Al	Steel	Strands wire	6 disc	12 disc	18 disc	24 disc
JLY250	Φ0.4-2.0	Φ0.5-2.0	Φ0.4-1.5	Φ0.65-2.5	145	127	112	98
JLY400	Φ1.0-2.5	Φ1.5-3.0	Φ1.0-2.0	Φ8	130	115	102	90
JLY500	Φ1.5-4.0	Φ1.8-5.0	Φ1.0-3.5	Φ10	130	115	102	90
JLY630	Φ1.5-4.5	Φ1.8-5.0	Φ1.5-5.0	Φ10	115	102	90

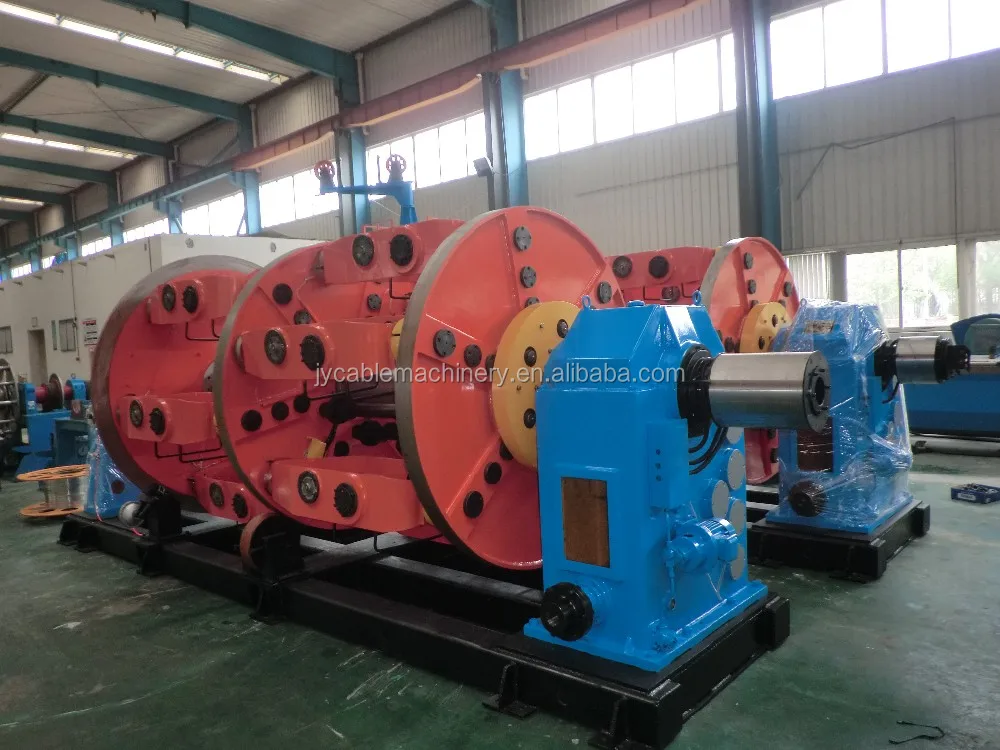

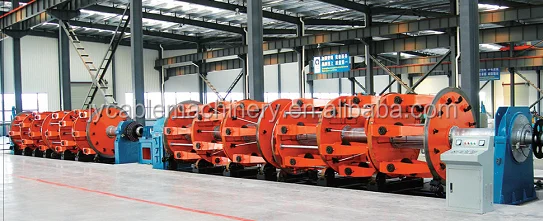

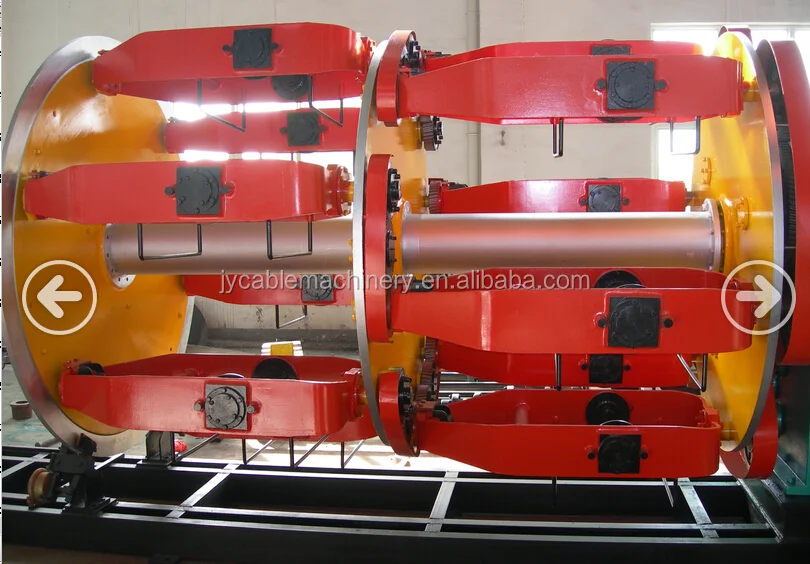

Detailed Images

Packing & Delivery

Standard Wooden Case Packing

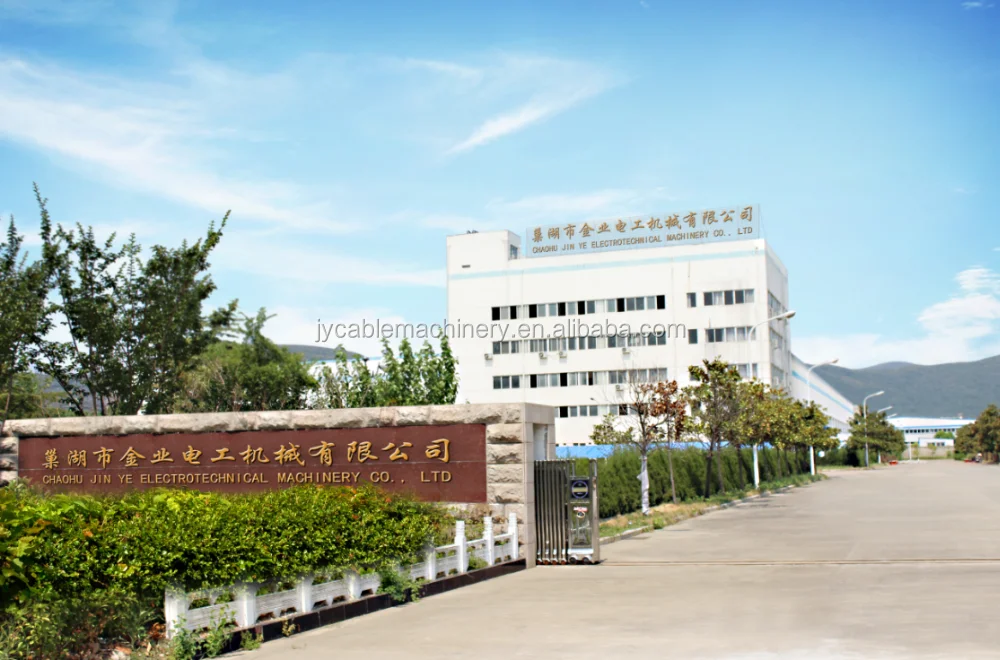

Our Company

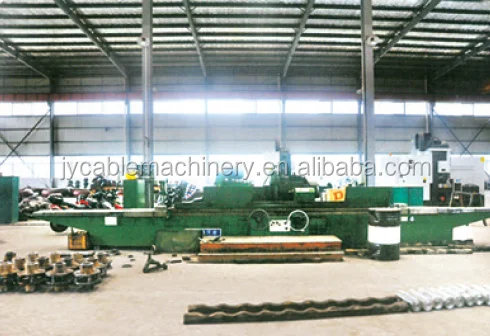

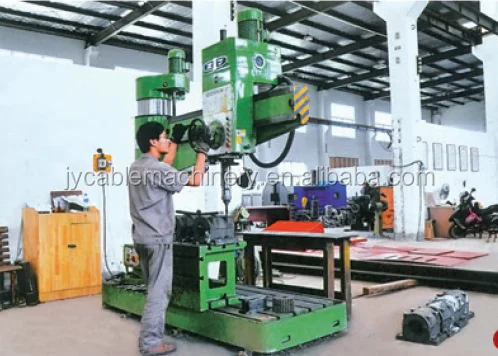

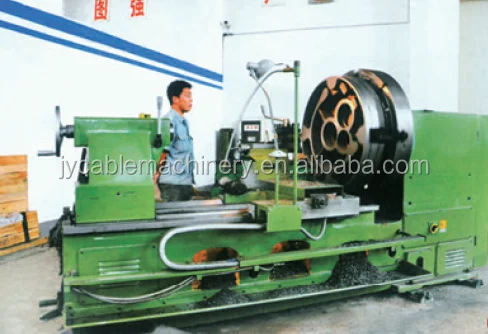

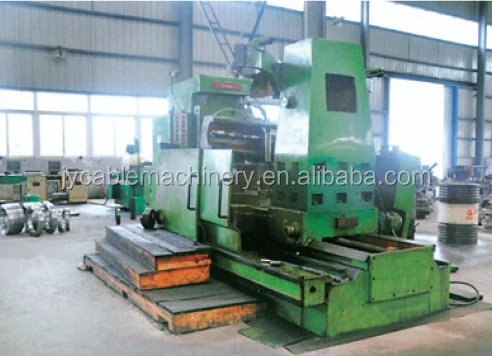

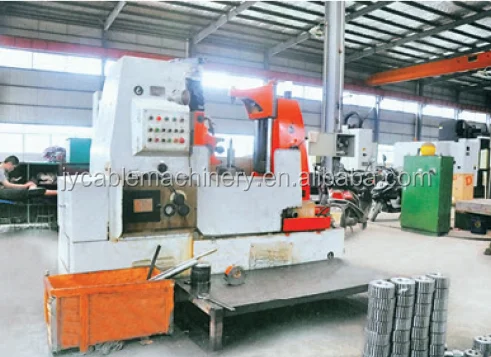

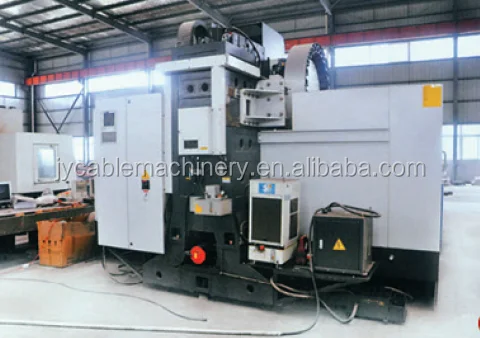

Advanced Processing Equipment

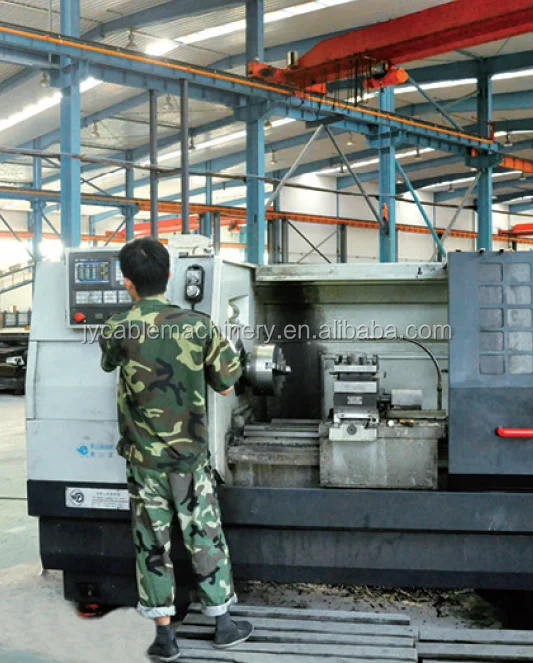

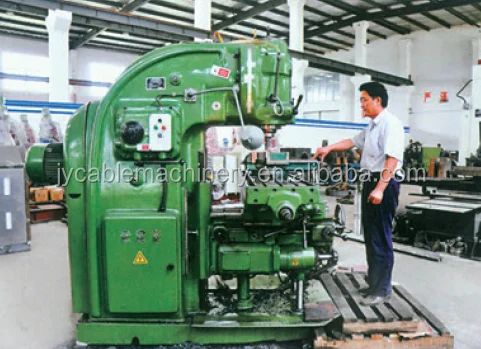

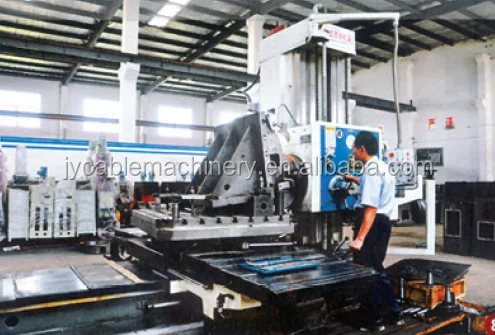

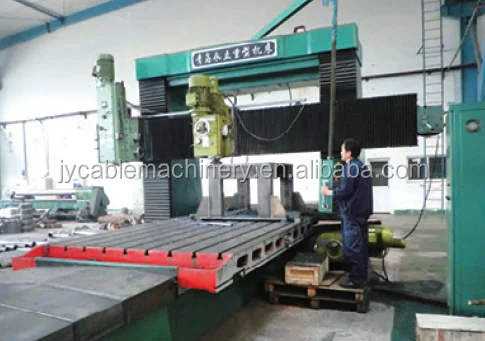

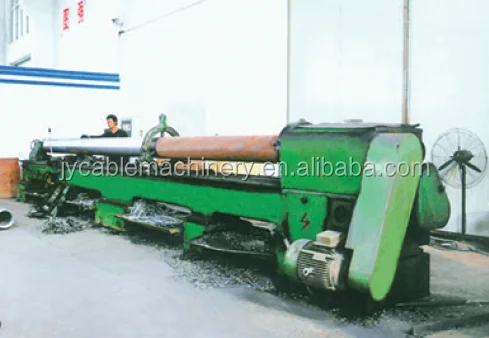

Based on the value of "Advanced Production", our company introduced many sets of advanced production equipment, such as beam drilling machine, guangzhou CNC lathe, planer type milling machine with movable cross rail and cylindrical grinding machine, etc. Our company also owns a strong R&D team with high qualification and skillfulness, encouraging them to make great progress in the market competitions.
