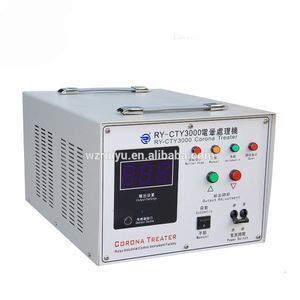

Corona Treater for film machine corona treatment machine

Click here to contact
Product details
Product name:corona treater corona treatment machine;Input Voltage and Frequency:AC 220V±10%,50/60Hz;
Machinery Test Report:Provided;Installation Way:Vertical type;
Place of Origin:Zhejiang China;Video outgoing-inspection:Provided;
Operation Frequency:15-30Hz;Supply Ability:100 Set/Sets per Week corona treater;
Port:NIngbo&Shanghai;Core Components:Engine;
Local Service Location:None;Payment Terms:T/T;
Package Preview:;Max Processing Width:3KW ≤1300mm;
After-sales Service Provided:No after-sales service,Online support,Video technical support;Condition:New;
Marketing Type:New Product 2020;After Warranty Service:Video technical support,Online support;
Showroom Location:None;Warranty of core components:1 Year;
Applicable Industries:Machinery Repair Shops,Food & Beverage Factory,Printing Shops,other;Warranty:1 Year;
Key Selling Points:High Productivity;Brand Name:RUIYU;

Corona Treater for film machine corona treatment machine

banner



Product Description



Main Features

1) Adopt import IGBT power module of full bridge inverter circuit.

2) Automatic phase-locked control technology.

3)Single chip power set mode to achieve power regulation.

4) With the input  of the three-phase short of phase, short circuit,over-current protection function.

5) With the function of no material stop and open stop protection.



THE MAIN TECHNICAL PARAMETERS
Model RY-CTY2000 RY-CTY3000 RY-CTG2000 RY-CTB RY-CTFY RY-CTY4000X2
Input voltage and frequency AC 220V 50/60Hz AC 220V 50/60Hz
Operation frequency(Hz) 15-30
The max output(KW) 2 3 2 2 - 4  8
The max processing width(mm) Double-sided plastic film /
Single-sided metal film		 1000 1300 1200 1000-1500 2500
Application Materials PE,PP,PS,PETP,OPP,PA,PVC Plastic film and aluminum-plated steel,Laser film,Aluminum foil metallic film.
Transformer Type Oil-immersed type  Dry type Oil-immersed /  Dry type Oil-immersed type
Structure Integrated type:Transformer is installed in the treater Integrated type /
Spilt type		 Spilt type:Transformer on the outside
Weight(Kg) 7.1 11.5 18 22 4.35 38
Dimensions(mm) 390 x  235 x  225 410x305x225 595 x 182 x 350 300 x 205 x 202 450 x 350 x 1120
Company Information



FAQ

1.The power supply for eliminating devices is 220 AC per hour. 380 V are strictly prohibited. Wiring shall be used when used end reliably with machine metal body and ground connection otherwise
easy damage eliminator.

2.The grounding end of discharge rod must be grounded reliably and electro-acupuncture must be
 perpendicular to electrostatic objects.The closer distance is, the better electrostatic effect is.

3.When machine works, operator must not contact or close to high voltage output end-point electro acupuncture.

4.High voltage output lines shall be separated from ground lines and cannot be near any metal.

5.When cleaning maintenance, you must cut off power.

6.Discharge body and fixed bracket should be often cleaned with gasoline.

7.During transportation storage and use no two leaching or contacting corrosive objects shall be
allowed.

8.In use, if sparks are detected or no spark output is found, typically 630 VIf the capacitor failure is due to failure, replace 500 V and 1.5uF capacitor, which is normal recovery.
