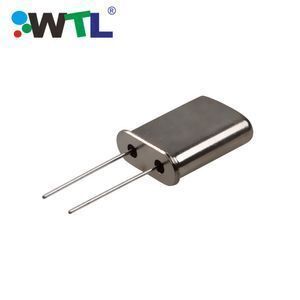

WTL Customized HC-49T 20pF 30ppm 455KHz Crystal Oscillator

Product details
Place of Origin:Guangdong China;Brand:WTL;
Cetificate:ISO9001, ISO14001, SGS, RoHS;Model Number:WT9;
Frequency Stability:±30ppm;Frequency Tolerance:±30ppm;
About Us:19 Years Experience;Supply Voltage:-;
Supply Ability:1000000 Piece/Pieces per Month 455KHz Crystal Oscillator;Frequency Range:455.000KHz;
Load Capacitance:20pF;Shipment:DHL, UPS, TNT, Fedex, EMS,China Post;
Nominal Frequency:455.000KHz;Package Type:Throught Hole,DIP;
OEM/ODM:Welcome;Operating Temperature:-20+70℃;
Payment Terms:L/C,T/T,Western Union,Paypal;Sample:Accept;
Brand Name:WTL;Item:455KHz Crystal Oscillator;
Packaging Detail:DIP 100pcs/bag,1000/box(WTL Customized HC-49T 20pF 30ppm 455KHz Crystal Oscillator);Payment:T/T, Western Union, PayPal,Credit Card;
Package:OPP Bag + Carton;Warranty:Global 180 Days Return;
Dimensions:HC-49T;Port:Shenzhen;

WTL Customized HC-49T 20pF 30ppm 455KHz Crystal Oscillator



WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



ELECTRICAL SPECIFICATIONS

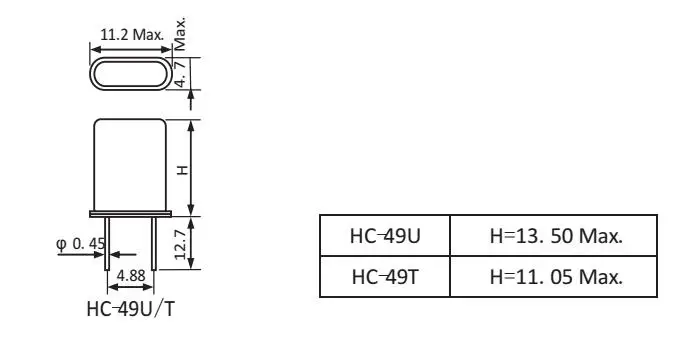

Resistance Welded HC-49/T Package

Item

Specifications

Frequency

455.000KHz

Load Capacitance(CL)

20pF

Frequency Tolerance (at 25°C)

± 30ppm

Frequency Stability Over Operating
Temperature Range

± 30ppm

Operating Temperature Range

-20°C--+70°C

Storage Temperature Range

-40°C--+85 °C

Shunt Capacitance (C0)

7pF Max

Driver Level(Typical)

100µW Typical

Aging(at 25°C)

± 5ppm/year maximum



WTL Customized HC-49T 20pF 30ppm 455KHz Crystal Oscillator

Packaging & Shipping



Our Services



1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ



1.What is the general lead-time of the products?

ProductLead Time
HC49 Series1-2 weeks
SMD Crystal1-4 weeks
DIP Oscillator1-2 weeks
SMD Oscillator1-3 weeks
TCXO2-8 weeks
Watch Crystal1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.



3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.



4.What is the WTL main material?

TypeVendor
Crystal Bar

South Urals,Russia- Crystal Factory, TF

Base

SMI/NTK/KYOCERA(JP)

IC

NPC- Japan

Top Cover

Hua Nu Dike/Yoshikawa Corporation (JP)

Conductive Glue

Three Bond – (JP)
