scale production pass test quality control bridge rectifier
- 13.00 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Peak Repetitive Reverse Voltage: | 2400V; | IFSM: | 1850/2000A; |
| Dimensions: | 110*50*28mm; | Media Available: | datasheet,Photo; |
| Type: | Bridge Rectifier; | Safety: | CE; |
| Payment Terms: | L/C,T/T,Western Union,paypal; | Application: | power supply; |
| Junction Temperature: | -40 to +150 ℃; | product name: | scale production bridge rectifier; |
| Port: | SHAGNHAI; | Supplier Type: | Original manufacturer,ODM; |
| Brand Name: | YZPST; | VFM: | 1.35V; |
| Mean On-State Current: | 200A; | Place of Origin: | Jiangsu China; |
| Package Type: | Throught Hole; | Certification: | ISO9001:2008; |
| Model Number: | YZPST-MDS200-24(FUJI); | VISO: | 2500V; |
| Packaging Detail: | The packing of the Three Phase rectifier bridge : 1. Anti-electrostatic packaging 2. Carton box 3. Blister packaging; | IRRM: | 6.0mA; |
| Supply Ability: | 1000 Piece/Pieces per Week scale production pass test quality control bridge rectifier; | Peak Non-Repetitive Reverse Voltage: | 2500V; |
scale production bridge rectifier

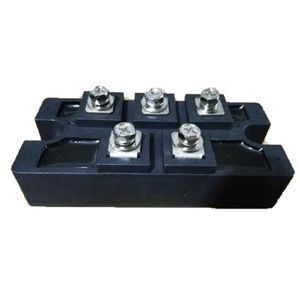

Three phase rectifier bridge MDS200-24 (FUJI)
Product Description
|
Three Phase |
IdAV = 200 A |
|||
|
Rectifier Bridge |
VRRM = 1000-2400V |
|||
|
|
|
|||
|
VRRM (V) |
VRSM (V) |
TYPE |
||
|
1000 |
1100 |
MDS200-10 |
||
|
1200 |
1300 |
MDS200-12 |
||
|
1600 |
1700 |
MDS200-16 |
||
|
1800 |
1900 |
MDS200-18 |
||
|
2200 |
2300 |
MDS200-22 |
||
|
2400 |
2500 |
MDS200-24 |
||
Packaging & Shipping
Our Company
Our Company
Certifications
FAQ
|
Contact Name |
John Chang & Sam Chow |
|
TEL |
+86-514-87782298,87782296 |
|
Fax |
+86-514-87782297,87367519 |
|
WEB |
yzpst.com;Pst888.com;yzpstcc.com;yzpst.net |
Contact us
