three terminal two way switch triacs BTA08

Supplier: Yangzhou Positioning Tech. Co., Ltd.
Region: Jiangsu, China
Contact: Mr John Chang
Price: $0.12 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Supplier Type:	Original manufacturer,ODM;	Type:	triac,triac;

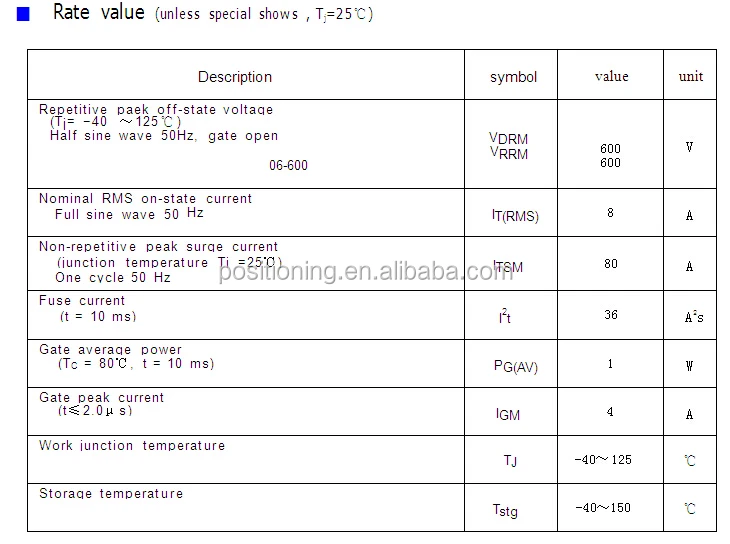

PG(AV):	1W;	Model Number:	YZPST-BTA08;
Packaging Detail:	The packing of the Triacs : 1. Anti-electrostatic packaging 2. Carton box 3. Blister packaging;	Supply Ability:	10000 Piece/Pieces per Week three terminal two way switch triacs BTA08;
IGM:	4A;	Brand:	triac;
SAFETY:	CE;	Payment Terms:	L/C,T/T,Western Union,paypal;
Application:	Motor speed control;	Brand Name:	YZPST;
IT(RMS):	8A;	Media Available:	datasheet,Photo;
Applications:	Motor speed control;	Place of Origin:	Jiangsu China;
VDRM / VRRM:	600V;	Package Type:	Plastic package;
Certifcation:	ISO9001:2008;	Product name:	three terminal two way switch triacs BTA08;
Port:	SHANGHAI;	Work junction temperature:	-40 ~+125℃;

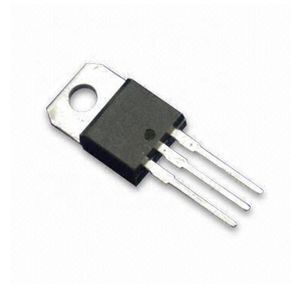

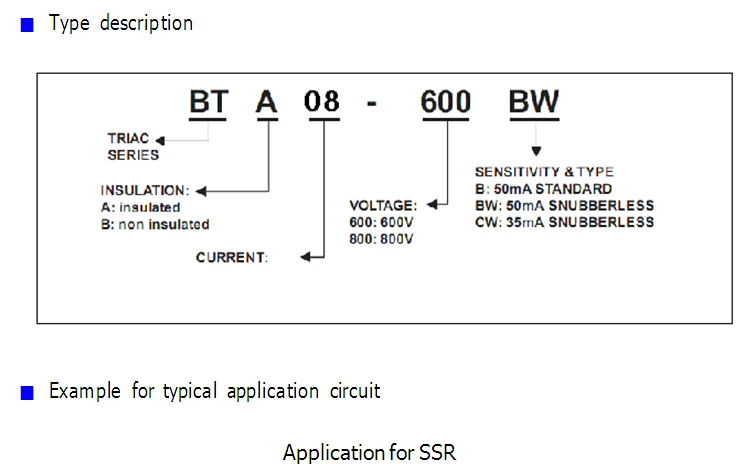

YZPST-BTA / BTB 08 Serise Triacs

TO-220AB

Product Description

Available either in through-hole or surface-mount packages, the BTA/BTB08 - 600CW triac series is suit able for g eneral purpose AC switching.

They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in lig ht dimmers, motor speed controllers, ...

The snubberless versions (BTA/BTB...W series) are specially recommended for use on inductive loads, thanks to their high comm utation performances. By using an internal ceramic pad.

Feature

*The third quadrant sensitine trigger structure ,

The best match for commutating ability and gate sensitivity .

*Diffusion and glass passivated technolgy.

Ensure specification reliability and uniformity.

*Match the appropritate gate specification as high temperature requirement.

Main application

*Washing machine vacuum cleaner dimmer.remote switch .

*AC moter conrtol equipment.
