transistor bta16 triac for Washing machine to 220
- 0.16 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| IT(RMS): | 16A; | Package Type: | Throught Hole; |
| Work junction temperature: | -40 ~+125℃; | Port: | SHANGHAI; |
| Place of Origin: | Jiangsu China; | Type: | Triode Transistor; |
| VDRM / VRRM: | 600V; | Brand Name: | YZPST; |
| Certification: | ISO9001; | Model Number: | YZPST-BTA16; |
| SAFETY: | CE; | Packaging Detail: | The packing of the Triacs : 1. Anti-electrostatic packaging 2. Carton box; |
| Payment Terms: | L/C,T/T,Western Union,paypal; | Supply Ability: | 10000 Piece/Pieces per Week trigger structure triac; |
Trigger structure triac

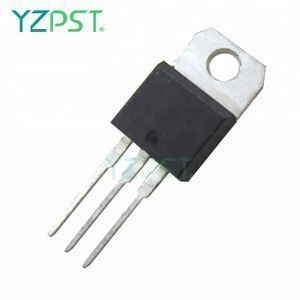

BTA16 TO-220AB
Product Description
Feature
*The third quadrant sensitine trigger structure ,
The best match for commutating ability and gate sensitivity .
*Diffusion and glass passivated technolgy.
Ensure specification reliability and uniformity.
*Match the appropritate gate specification as high temperature requirement.

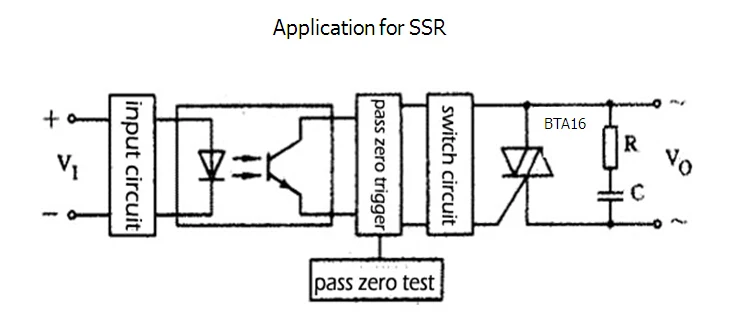

Main application
*Washing machine vacuum cleaner dimmer.remote switch .
*AC moter conrtol equipment.
*Switching inductive load.

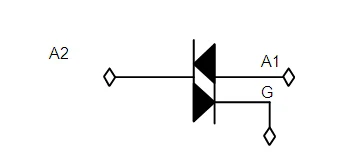

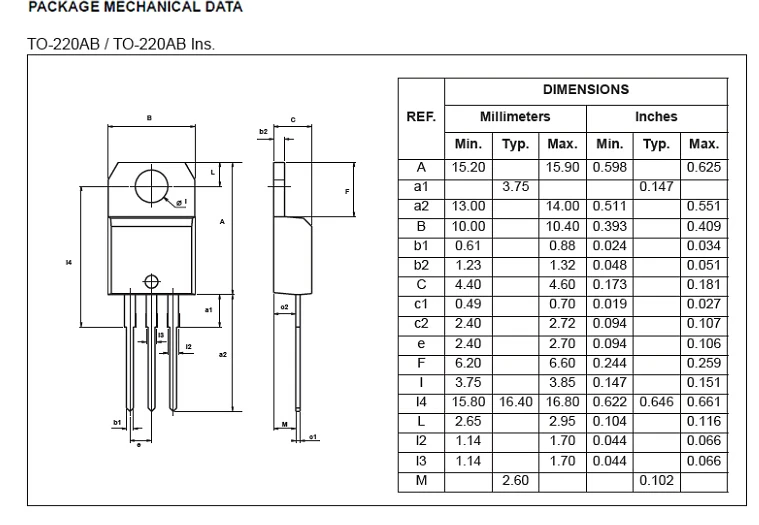

Outline and pin array
*TO-220
