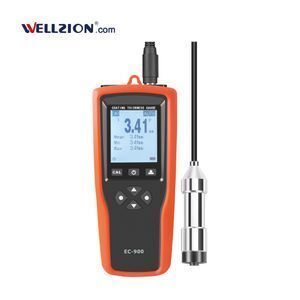

EC-900,Max to 5000um Replaceable Probe Film Coating Thickness Gauge
-
Supplier: Xiamen Wellzion Electronics Technology Co., Ltd. -
Region: Fujian, China -
Contact: Ms Melissa Zhang -
Price: $275.00 /piece -
Min. Order: 1 piece
Product details
| Single package size: | 32X28X9 cm; | Resolution: | 0~99.9um(0.1um), others(1um); |
| Packaging Detail: | carton box Film Coating Thickness Gauge; | Selling Units: | Single item; |
| Brand Name: | WELLZION; | Place of Origin: | Fujian China; |
| Measuring Range: | 0~5000um; | Product Name: | Film Coating Thickness Gauge; |
| Model Number: | EC-900; | Single gross weight: | 1.5 KG; |
| Website: | www.wellzion.com; | Type: | Film Coating Thickness Gauge; |
| Accuracy: | ±(2%+1um); |
EC-900,Max to 5000um Replaceable Probe Film Coating Thickness Gauge
Contact Us Directly
For quick reply
For more discounts
For update info : www.weLLzion.com
Function & Benefits
- 0~5000um measurement range(Decided by probe)
- With separated design for easy replace probe
- LCD shows mean, maximum, minimum and standard deviation
- User can set alert limit and red backlight indication
- Support zero and multi-point calibration
- Readings can be stored, recalled and deleted
- Connect with PC via USB and download readings
- Up to 5 measurement groups supported
Specifications
| Measuring Principle | Magnetic(F),Eddy current(N) |
| Measuring Range | Decided by probe |
| Accuracy | ±(2%+1um) |
| Resolution | 0~99.9um(0.1um), others(1um) |
| Readings Memory | 2000 readings |
| Power Supply | 3pcs 1.5V AAA battery |
| Units | um, mm, mils |
| Storage Environment | Temperature: -10 to 60°C |
| Operation Environment | Temperature: -10 to 50°C |
| Dimension | 158mm*68mm*34mm |
| Weight | 170g |
+
| Probe | Range | Accuracy | Part No. |
| External probe, F and N | 0~1500um | ±(2%+1um) | 0102 2215 |
| External probe, F and N | 0~2000um | ±(2%+1um) | 0102 2220 |
| External probe, F and N | 0~2500um | ±(2%+1um) | 0102 2225 |
| External probe, F and N | 0~3000um | ±(2%+1um) | 0102 2230 |
| External probe, F and N | F: 0~5000um; N: 0~3000um | ±(2%+1um) | 0102 2250 |
