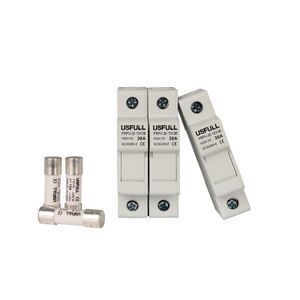

USFULL Solar PV DC 1000V 15A 20A 25A 32A Fuse with Fuse Holder
- 0.58 piece
| Type: | Dc Fuse; | Reted voltage: | 1000V; |
| Payment Terms: | T/T,Western Union,MoneyGram,cash; | Place of Origin: | Zhejiang China; |
| Usage: | PV System,LOW VOLTAGE; | Packaging Detail: | Packaged by export standard packing; |
| Size: | 10*38mm; | Rated current: | 30A; |
| Brand Name: | USFULL; | Safety Standards: | IEC; |
| Pole: | 1P; | Port: | shanghai or ningbo; |
| Model Number: | FRPV-30; | Breaking Capacity: | High; |
| Material: | Copper; |
| SPECIFICATION | |
| Product Model | FRPV-30 |
| Pole | 1P |
| Rated Voltage | DC 1000V |
| Rated Current | 1-32A |
| Short-Circuit Breaking Capacity | 33KA |
| Max. Power Attenuation | 3.5KW |
| Protection Grade | IP20 |
| Connection | 2.5-10mm² |
| Operation Ambient Temperature | -30℃ to +70℃ |
| Resistance and Damp Hot | Class 2 |
| Elevation | ≤2000 |
| Installation Way | TH35-7.5/ DIN35 Rail Installation |
| RH(relative air humidity) |
when +20℃, not exceed 95%; when +40℃, not exceed 50% |
| Pollution Class | +3 |
| Installation Enviroment | the place of no abvious vibrate&impact |
| Installation Class | III |
| Dimension | 80x18x60 mm |
| Weight | 0.07KG |
About Us
FAQ:
Q 1: When can I receive quotation and DC fuse details after sending the inquiry?
A: We will reply you within 24 hours.
Q 2: What's the difference between you and other suppliers?
A: We have our own design box with PC/PPT material.
Q 3: Do you provide DC fuse samples?
A: Yes, welcome to make sample order.
Q 4: What's the delivery time?
A: About 1-25 days. The specific delivery time depends on the quantity purchased.
Q 5: What payment methods can you accept?
A: We accept T/T, L/C, D/A, D/P, O/A, WESTERN UNION, PAYPAL, CASH.
Q 6: What's your transportation method?
A: We can deliver by express, by air, by sea, by train and by land.
Q 7: How do you control the quality?
A: All the products must be tested after finished production.
