USFULL DC breaker 4P 1000v DC MCB 16A 32A 63A 2P 500V DC disjuntor disyuntor Solar PV Breaker

Supplier: Zhejiang Fullwill Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr USFULL GROUP
Price: $5.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Case of circuit breaker:	re-resistant and shockproof plastic;	Function of circuit breaker:	Protect overload and shortcircuit;
Packaging Detail:	packaged by Standard Export Carton.;	Rated Frequency:	50/60hz;
Port:	Ningbo,Shanghai;	Brand Name:	USFULL;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T;	Rated Voltage:	12V-1000V;
Poles Number:	1P,2P,3P,4P;	Performance of circuit breaker:	Reliable and excellent;
Certificate of circuit breaker:	CE;	Place of Origin:	Zhejiang China;
Pole of circuit breaker:	1P, 2P, 3P, 4P;	Supply Ability:	300000 Piece/Pieces per Month 1200;
Model Number:	FMB7;	Type:	MINI;
BCD Curve:	C;

USFULL DC disjuntor disyuntor 1000v DC MCB MCCB 16A 32A 63A 125A

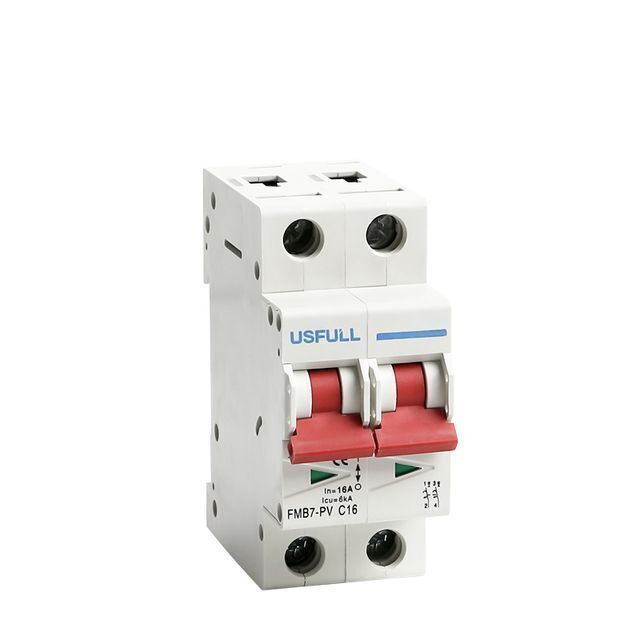

Solar DC Mini Circuit Breaker (DC MCB)
Specifications
FMB7-PV 63 Series Circuit Breaker			FMB7-PV 63
Frame Degree Rated Current (A)			63
Pole			1P, 2P, 3P, 4P
Rated Operating Voltage( V DC)			DC12V -DC1200V
Rated Current In (A)			1-63A
Rated Insulation Voltage Ui ( V DC)			1200VDC
Rated Impact Voltage Uimp (kV)			4
Ultimate Breaking Capacity Icu (kA)			6
Run Breaking Capacity lcs (%lcu)			75%
Curve Type			C
Trip Type			Thermal-magnetic
Mechanical	Actual average value		20000
	Standard value		8500
Electric	Actual average value		2500
	Standard value		1500
Condition and Installation
Wiring capacity (mm2)			Ins 32A, 1~25 mm2, I≥40A, 10~35mm2
Ambient temperature (C )			-20~+70
Altitude			≤2000
Relative humidity			≤9 5%
Pollution Level			3
Installation Environment			No obvious shock and vibration
Installation category			Class II
Installation			DIN Standard rail
Dimensions (W) x(H) x (Deep)	W	17.5	35	52.5	70
	H	80	80	80	80
	Deep	71	71	71	71
Weight (kg)		0.12	0.24	0.36	0.48

FAQ

Q1: What's the rated current range you can offer?
A1: We offer DC MCB from 1A to 125A, and DC MCCB from 63A to 630A.

Q2: What's your DC MCB quality?
A2: Our DC MCB is designed for solar pv system, all the parts in the DC MCB are for direct current standard. Not all the MCB are DC MCB!

Q3: What's your production capacity of DC MCB?
A3: We can make 300,000 pole one month. If you have order plan, feel free to contact me, I will tell you delivery time according to your demand.

Q4: Do you have a catalogue? Can you send me the catalog to check all your products?
A4: Yes, We have product catalogue. Please contact us for catalog.

Q5: Can you help me to select suitable products?
A5: Sure, please send us inquiry and tell us your demand, we will have professional team to support you in model selection.
