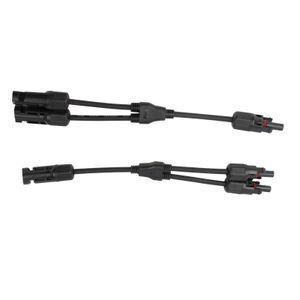

USFULL Y Type Branch Plug 2 to 1 PPO IP67 1000VDC Solar PV Connector for Connecting

Click here to contact
Product details
Application:Connect solar panels;Insulation Material:PPO;
Pins:2P, 3P, 3P,4P, 5P;Protection Level:IP67 ( mated );
Terminal Connection:Crimping;Port:NINGBO&SHANGHAI AND ANY CHINESES SEAPORT;
Packaging Detail:Carton packaging;Payment Terms:L/C,Western Union,D/P,D/A,T/T,cash;
Cable Outer Diameter:4 - 6 Square mm;Gender:Male and Female;
Supply Ability:200000 Pair/Pairs per Month;Type:MMCX;
Flame Class:UL94-V0;Rated Voltage:1000VDC;
Place of Origin:Zhejiang, China;Model Number:Y Type;
Product Name:PV Branch Connector;Contact Material:Copper alloy / Tin plated;
Brand Name:USFULL;Connector Type:2Y;
Rated Current:22A, 30A;

USFULL Y Type Branch Plug 2 to 1 PPO IP67 1000VDC Solar PV Connector for Connecting

Product Description



PV Branch Connector
Connector Type: 2Y/3Y/4Y/5Y/6Y
Rated Voltage: 1000V DC
Rated Current: 20A(4mm²), 30A(6mm²)
Test Voltage: 6000V DC
Cable Outer Diameter: 2.5mm² ~ 6mm²
Ambient Temperature Range: -40℃ ~ +110℃
Degree of Protection, Mated: IP67
Contact Resistance: ≤1mΩ
Insulation Resistance: >500mΩ
Contact Material: Copper alloy, Tin plated
Insulation Material: PPO
Terminal Connection: Crimping
Flame Class: UL94-V0
Safety Class: Ⅱ

Company Information



About Us






FAQ



Q 1: What's your company's main products? Are you a manufacturer or a trader?

   A: Our main products cover dc breaker, dc fuse, dc surge protective device, pv connector,

        pv combiner box and solar pump inverter, etc.

        We're a professional manufacturer and exporter more than 15 years.

Q 2: How do you control quality?

    A: Firstly, all raw material we selected the high quality one.

       Secondly, our professional and skilful workers care every details in handling the producing.

       Thirdly, our quality control department specially responsible for quality checking in each process.

       Finally, our product strictly follow ISO9001 quality control system, all products must be tested

       after finished production.

Q 3: Do you provide pv connector sample?

     A: Yes, welcome to make sample order.

Q 4: How long is the delivery time?

    A: Please contact our sales person and tell us your demand, we will tell you the delivery time.

Q 5: What's your payment term?

    A: We accept T/T, L/C, D/A, D/P, WESTERN UNION, PAYPAL, CASH.

Q 6: What's your after-sales service?

    A: All our the customers can enjoy the after-sales service for “eighteen months quality warranty,

        and lifetime technical support”.

Q 7: How do you make our business long-term and good relationship?

     A: We offer good quality and competitive price to ensure our customers benefit.

         We respect every customer and we sincerely do business and make friends with them,

          no matter where they come from.
