Fuse connection 1A 2A 3A 4A 5A 6A 7A 8A 10A 12A 15A 20A 25A 30A 35A 40A 50A 60A 65A 75A 80A 100A 120A 200A Connection 3V 11
- 0.40 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Supply capacity: | 10000000 pieces per year | model: | K type |
| OEM production: | accept | Packaging Details: | carton |
| Package preview: | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | |
| Breaking capacity: | High | Tail material: | tinned copper |
| brand: | Ica | port: | Ningbo, Shanghai |
| Name: | Type K fuses for push-out fuses | button: | fixed or movable |
| safety standard: | International Electrotechnical Commission | product name: | expulsion fuse |
| Origin: | Zhejiang, China | standard: | IEC282 |
| usage: | high pressure | Fuse element: | silver |
| port: | Ningbo, Shanghai | Other types: | H type, T type |
| Package Size: | 45*35*30cm/500pcs |

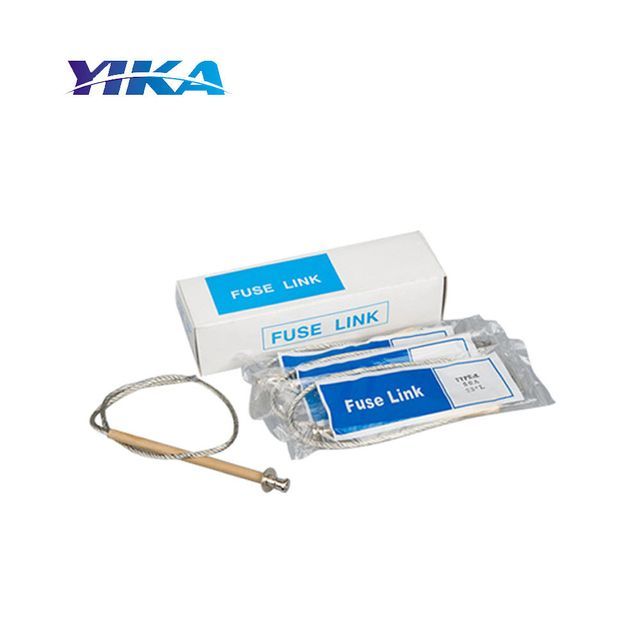

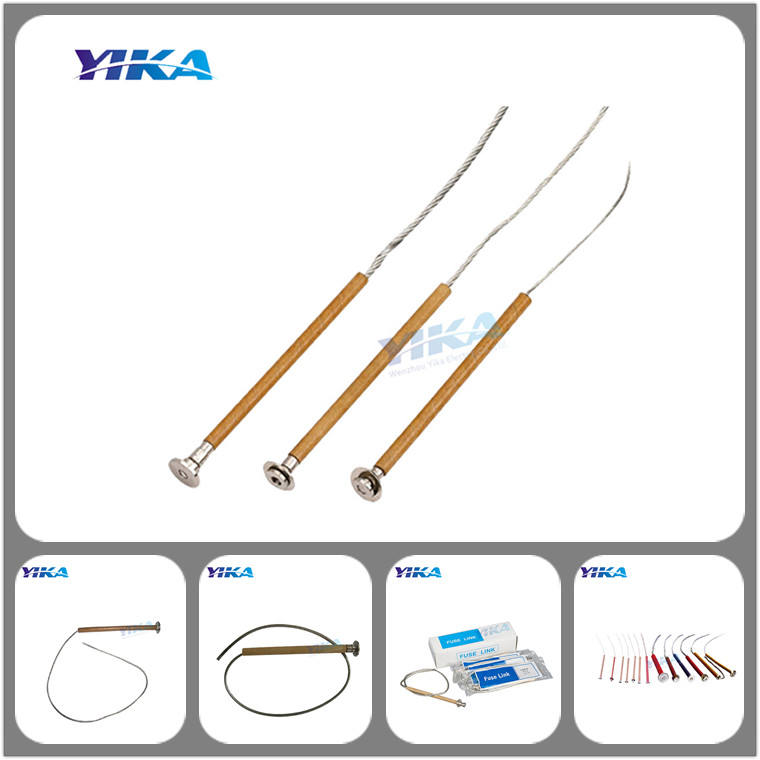

Fuse 1A 2A 3A 4A 5A 6A 7A 8A 10A 12A 15A 20A 25A 30A 35A 40A 50A 60A 65A 75A 80A 100A 120A 200A Type K 11KV 33KV Expulsion fuse
Fuse 1A 2A 3A 4A 5A 6A 7A 8A 10A 12A 15A 20A 25A 30A 35A 40A 50A 60A 65A 75A 80A 100A 120A 200A Type K 11KV 33KV Expulsion fusedetailed image
Product Description
Jet fuse specifications:
Fuses are used for 11-36KV dropout fuses.
Fuse elements are available in precisely tested materials, high-purity silver, or silver-copper eutectic or nickel-chrome eutectic, depending on current rating. The fuse core wire is extruded by a high-precision mold. The cross-section is inspected with a laser micrometer to ensure accuracy, and carefully assembled to ensure that no cracks, shrinkage or distortion affect the time-current accuracy.

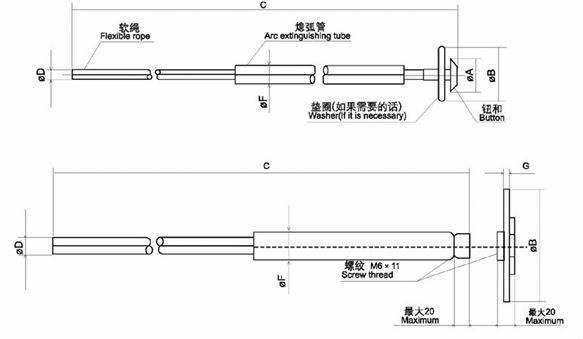

| rated current (A) |
Dimensions (mm) | Number / Box | ||||
| A | Second | C | Man | f | ||
| 1 to 40 | 12.5±0.2 | 19.0±0.3 | Note 1 | 2.0 | 6.5 | 500 |
| 50 to 100 | 12.5±0.2 | 19.0±0.3 | 5.0 | 8.0 | 500 | |
| 120 to 200 | 19.0±0.3 | no Applicable |
7.0 | 12.0 | 250 | |
| Note 1: The lengths of push-out fuses for 11KV and 33KV are 585mm and 787mm respectively. | ||||||

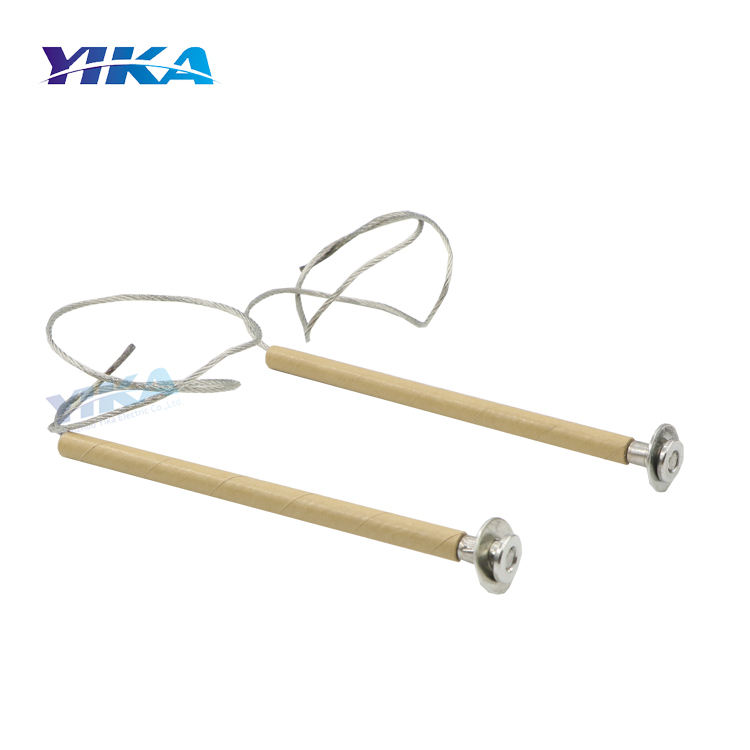

| Fuses, Type K, With fixed or detachable button heads, |
||||||

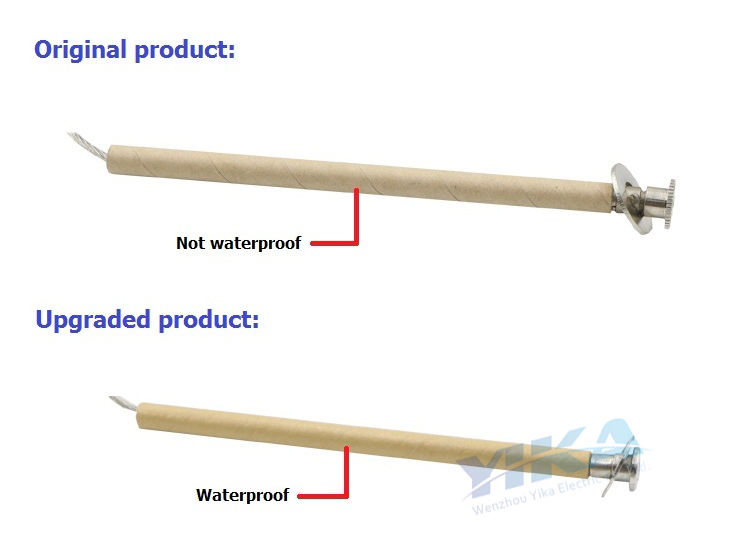

advantage

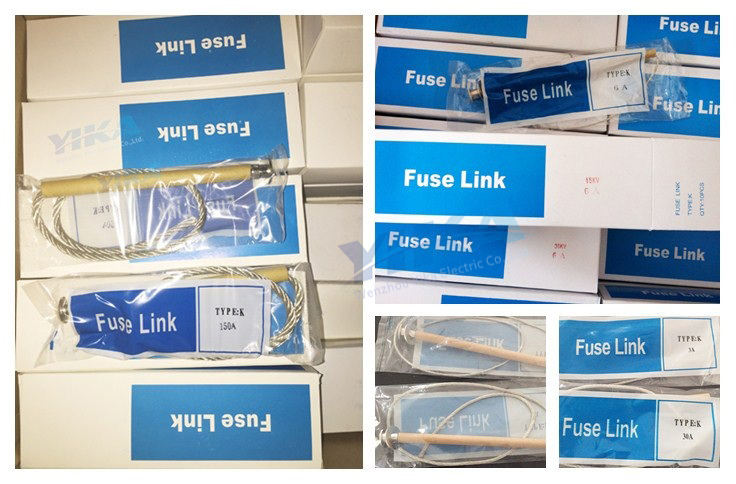

Package
