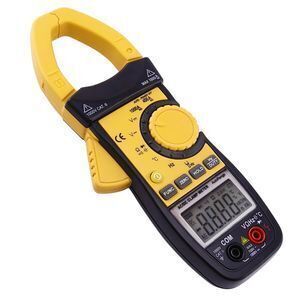

Digital AC/DC Clamp Meter Multimeter Thermometer Ohm Diode Resistance Frequency

Specifications

• Accuracy:
  ±% of reading ±number of least significant digits at 18~28 °C, with relative humidity up to 75%. All specifications assume less than 1 year since calibration. Temperature coefficient: 0.1 x specified accuracy / °C


• General Specifications:
  • Maximum Voltage: 1000 V DC or 700 V AC RMS
  • Altitude: < 2000m

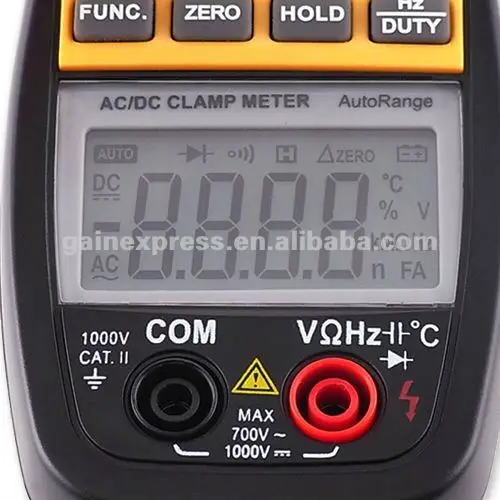

  • Display: LCD 3999 counts Update 2 ~ 3 per second
  • Ranging Method: Auto Range Mode
  • Polarity Indication: "-" display for negative polarity
  • Over Range Indication: LCD will display "OL"
  • Low Battery: icon will appears on LCD
  • Jaw Capability: 40mm, Max conductor size

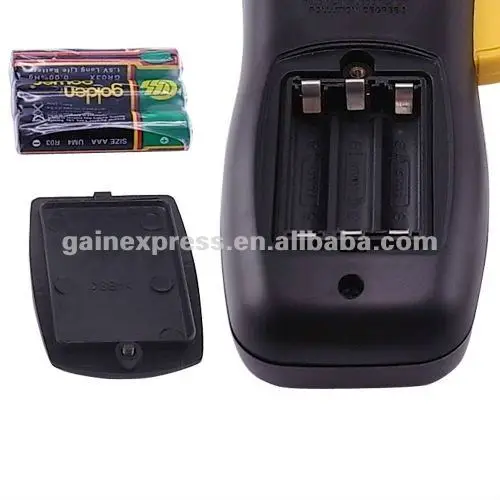

  • Power: 3 x 1.5V AAA Batteries
  • Operating Temperature: 5~35°C
  • Storage Temperature: -10~50°C


• DC Voltage


  Range	Resolution	Accuracy
  *400 mV	*0.1mV	±(0.8 % of reading + 5 digits)
  *4V	*1mV
  *40V	*10V
  *400V	*0.1V
  *1000V	*1V	±(1.0 % of reading + 5 digits)

  - Input Impedance : 10MΩ (ohm)
  - Overload Protection: 1000 V DC or 700 V AC RMS

• AC Voltage


  Range	Resolution	Accuracy
  *4V / 50Hz	*1mV	±(1.2 % of reading + 5 digits)
  *40V / 50Hz	*10mV
  *400V / 50Hz	*0.1V
  *700V / 50Hz	*1V	±(1.5 % of reading + 5 digits)

  - Input Impedance : 10MΩ (ohm)
  - Frequency Range: 40~400Hz
  - Overload Protection: 1000 V DC or 700 V AC RMS


• DC Current


  Range	Resolution	Accuracy
  *400A	*0.1A	±(3.0 % of reading + 5 digits)
  *1000A	*1A

  - Overload Protection: 120 % ranges for 60 seconds max.

• AC Current


  Range	Resolution	Accuracy
  *400A	*0.1A	±(3.0 % of reading + 5 digits)
  *1000A	*1A

  - Overload Protection: 120 % ranges for 60 seconds max.
  - Frequency Range: 50~60Hz


• Resistance


  Range	Resolution	Accuracy
  *400Ω	*0.1Ω	±(1.0 % of reading + 5 digits)
  *4kΩ	*1Ω
  *40kΩ	*10Ω
  *400kΩ	*0.1kΩ
  *4MΩ	*1kΩ
  *40MΩ	*10kΩ	±(2.0 % of reading + 6 digits)

  - Overload Protection: 250V DC or RMS, AC for all ranges


• Capacitance


  Range	Resolution	Accuracy
  *4nF	*1pF	±(4.0 % of reading + 10 digits)
  *40 nF	*10pF
  *400 nF	*0.1nF
  *4 µF	*1nF
  *40 µF	*10nF	Not Specified

  - Overload Protection: 250 V DC or rms, AC for all ranges


• Frequency Measurement


  Range	Resolution	Accuracy
  *40 Hz	*0.01 Hz	±(0.1 % of reading + 1 digits)
  *400 Hz	*0.1 Hz
  *4 kHz	*1 Hz
  *40 kHz	*10 Hz
  *100 kHz	*0.1 kHz

  - Measurement Range: 1 V to 10 V RMS. 10~100kHz


• Frequency Measurement for Clamp


  Range	Resolution	Accuracy
  *40 Hz	*0.01 Hz	±(0.1 % of reading + 1 digits)
  *400 Hz	*0.1 Hz

  - Measurement Range: 40~400Hz / > 20A


• Temperature


  Range	Resolution	Accuracy
  *-40~0°C	1°C	±(1.0 % of reading + 6°C)
  *1~400°C		±(1.0 % of reading + 3°C)
  *401~750°C		±(1.0 % of reading + 5°C)



• Audible Continuity and Diode Test


  Range	Description
  *Audible Continuity	*If continuity exists (about less  *than 30Ω), built-in buzzer will sound
  *Diode	*Show the approx. Forward Voltage  *of the diode

  - Duty Cycle: 0.1~99.9 %

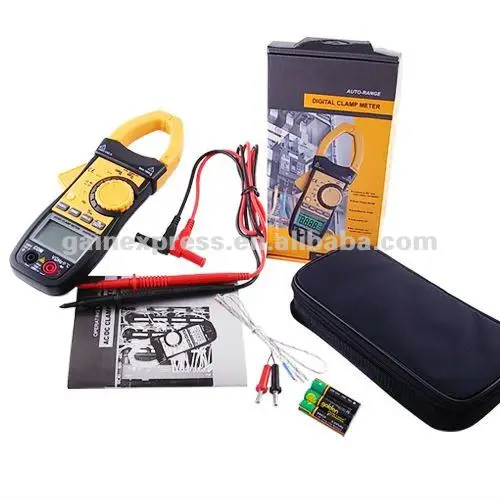

• Professional Multifunction AC/DC Clamp Meter
• 3 x 1.5V AAA Battery (FREE)
• 1 x "K" type thermocouple
• 1 x Test Leads
• 1 x Protective Zippered Carrying Pouch
• English Instruction Manual
• Standard packaging box
