ASDA-B2 Delta AC servo drive and motor driver

Supplier: Wuxi Dekong Technology Co. Ltd
Region: Jiangsu, China
Contact: Mr Dennis ZHAO
Price: $100.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	Delta;	Condition:	drive and motor;
Packaging Detail:	new and original Delta Package;	Model Number:	ASDA-B2;
Port:	Shanghai;	Place of Origin:	China;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Supply Ability:	1000 Piece/Pieces per Week;
Type:	Servo;

sales of the brand

Product Description

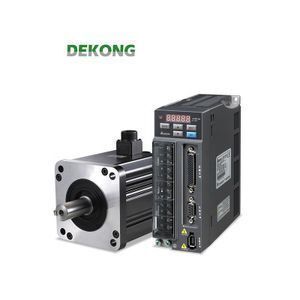

Delta ASDA-B2 series servo motor and drive

To meet the requirements of general-purpose machine tools and enhance the competitive advantage in the industrial automation market, Delta Electronics, Inc. is pleased to announce that the new high-performance and cost-effective ASDA-B2 series servo motors and drives has launched into the market.

Specifications

High-resolution encoder with 17-bit (160,000 p/rev) is equipped as a standard feature which satisfies the application needs of high precision positioning control and stable rotation at low speed.

Satisfy High Precision Positioning Requirements

Support pulse input (up to 4Mbps) and analog voltage two kinds of command.

Built-in position, speed and torque three control modes (speed and torque mode could be controlled via internal parameters or analog voltage command).

There auto notch filters are provided to suppress the mechanical resonance automatically and make the system operate more smoothly.

Offer Easy-To-Install Solution for Simple Start-Up

Motor sizing software is offered for the customers to conduct the estimation of the equipment conveniently.

ASDA-Soft configuration software (tuning software) is provided for the customers to meet the performance requirements quickly.

Easy-to-use digital keypad is ideal for setting parameters and monitoring the servo drive and motor directly.

Servo motor provides brake, oil seal etc. optional configurations for the requirements of different applications.

Reduce Maintenance and Wiring Cost for Versatile Operation

Existing power cables and encoder cables for ASDA series could be used still. When upgrading, there is no need to purchase new accessories.

The control circuit and main power circuit is separated, safety is increased and maintenance is much easier.

400W and above servo drive is built-in with regenerative resistor, significantly save the wiring and cost.

Two analog input terminals (CN5) are provided, easily monitor and the status of the servo motor.

ASD-B2-0121-B	B2 100W Servo Driver
ASD-B2-0121-F	B2 100W Servo Driver DMCNET
ASD-B2-0221-B	B2 200W Servo Driver
ASD-B2-0221-F	B2 200W Servo Driver DMCNET
ASD-B2-0421-B	B2 400W Servo Driver
ASD-B2-0421-F	B2 400W Servo Driver DMCNET
ASD-B2-0721-B	B2 750W Servo Driver
ASD-B2-0721-F	B2 750W Servo Driver DMCNET
ASD-B2-1021-B	B2 1KW Servo Driver
ASD-B2-1021-F	B2 1KW Servo Driver DMCNET
ASD-B2-1521-B	B2 1.5KW Servo Driver
ASD-B2-1521-F	B2 1.5KW Servo Driver DMCNET
ASD-B2-2023-B	B2 2KW Servo Driver
ASD-B2-2023-F	B2 2KW Servo Driver DMCNET
ASD-B2-3023-B	B2 3KW Servo Driver
ASD-B2-3023-F	B2 3KW Servo Driver DMCNET
ASD-B2L-0421-B	B2L 400W Servo Driver
ASD-B2L-0721-B	B2L 750W Servo Driver
ASD-B2L-1021-B	B2L 1KW Servo Driver
ECMA-C20401ES	B2 100W with keyway
ECMA-C20401FS	B2 100W with keyway with Brake
ECMA-C20401GS	B2 with Oil Seal with keyway
ECMA-C20401HS	B2 with Oil Seal with keyway with Brake
ECMA-C20602RS	B2 200W with keyway with screw hole with Oil Seal
ECMA-C20602SS	B2 200W with keyway with screw hole with Oil Seal with Brake
ECMA-C20604RC	B2 400W with keyway 3 meters extension cable with Oil Seal
ECMA-C20604RS	B2 400W with keyway with screw hole with Oil Seal
ECMA-C20604SS	B2 400W with keyway with screw hole with Oil Seal with Brake
ECMA-C20804R7	B2 400W with keyway with screw hole with Oil Seal 80 frame
ECMA-C20804S7	B2 400W with keyway with screw hole with Oil Seal with Brake 80 frame
ECMA-C20807R6	B2 750W with keyway with Oil Seal
ECMA-C20807RC	B2 750W with keyway 3 meters extension cable with Oil Seal with screw hole
ECMA-C20807RS	B2 750W with keyway with Oil Seal with screw hole
ECMA-C20807SS	B2 750W with keyway with screw hole with Oil Seal with Brake
ECMA-C20907RS	B2 86 frame with Oil Seal with keyway750W
ECMA-C21010RS	B2 1KW Light Inertia with keyway with screw hole with Oil Seal
ECMA-C21010SS	B2 1KW with keyway with screw hole with Oil Seal with Brake Light Inertia
ECMA-C21020RS	B2 2KW with keyway with screw hole with Oil Seal Light Inertia
ECMA-C21020SS	B2 2KW with keyway with screw hole with Oil Seal with Brake Light Inertia
ECMA-E21310RS	B2 1KW with keyway with screw hole with Oil Seal
ECMA-E21310SS	B2 1KW with keyway with screw hole with Oil Seal with Brake
ECMA-E21315RS	B2 1.5KW with keyway with screw hole with Oil Seal
ECMA-E21315SS	B2 1.5KW with keyway with screw hole with Oil Seal with Brake
ECMA-E21320RS	B2 2KW with keyway with screw hole with Oil Seal
ECMA-E21320SS	B2 2KW with keyway with screw hole with Oil Seal with Brake
ECMA-E21820RS	B2 2KW with keyway with screw hole with Oil Seal 180 frame
ECMA-E21820SS	B2 2KW with keyway with screw hole with Oil Seal with Brake 180 frame
ECMA-E21830RS	B2 3KW with keyway with screw hole with Oil Seal
ECMA-E21830SS	B2 3KW with keyway with screw hole with Oil Seal with Brake
ECMA-E21835RD	A+ 3.5KW
ECMA-F21830CS	A + with Oil Seal
ECMA-F21830DS	A+Brake+ with Oil Seal
ECMA-F21830RS	A+ 3KW with keyway with screw hole with Oil Seal High Inertia
ECMA-F21830SS	A+ with keyway( with screw hole)+Brake+ with Oil Seal
ECMA-G21306RS	B2 600W with keyway with screw hole with Oil Seal
ECMA-G21306SS	B2 600W with keyway with screw hole with Oil Seal with Brake
ECMA-G21309RS	B2 900W with keyway with screw hole with Oil Seal
ECMA-G21309SS	B2 900W with keyway with screw hole with Oil Seal with Brake
