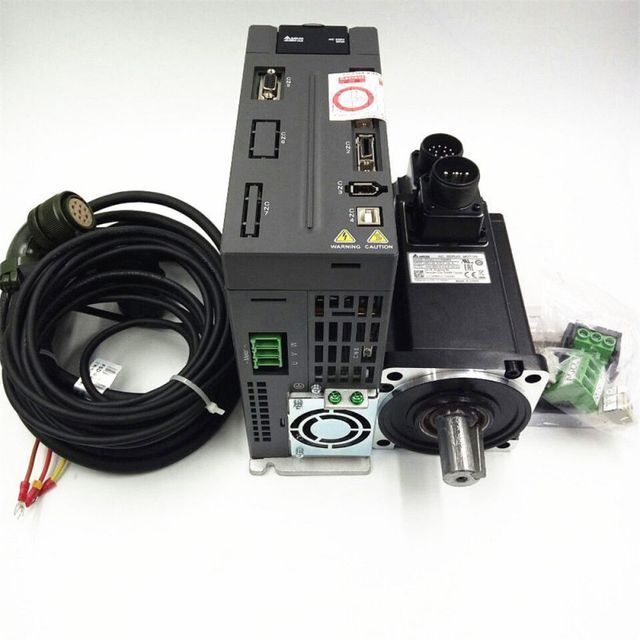

Genuine Delta AC Servo Drive ASDA-A2 And Servo Motor ECMA Series Products from Guangxi Nanning Craftsman Electromechanical Equipment Co., Ltd.

Product Details

Environment temperature:	0℃ ~ 55℃;	Brand Name:	Delta;
Packaging Detail:	Standard export package;	Supply Ability:	100 Pieces per Week;
Port:	SHENZHEN;	Bandwidth:	1KHZ;
Storage temperature:	-20℃ ~ 65℃;	Speed control range:	1:5000 / 1:3000;
Model Number:	ASD-A2-1021-F/FN/L/LN/M/MN;	Place of Origin:	Taiwan, China;
Command control mode:	Communication control;	Electronic gear ratio:	N/M (1/50
Encoder resolution:	20-bit/17-bit;	Package Preview:	;
IP level:	IP20;	Payment Terms:	L/C,Western Union,T/T,Paypal;
Main loop control mode:	SVPWM;	type of cooling:	Natural cooling or fan cooling;

Product Description

Explanation Model: ASDA-A2 Series

ASD	A2	01	21	M
Product Name	Product series	Rated output power	Input voltage and phase number	Model code
AC Servo drive	A2	01: 100W 30: 3KW 02: 200W 45: 4.5KW 04: 400W 55: 5.5KW 07: 700W 75: 7.5KW 10: 1KW 1B: 11KW 15: 1.5KW 1F: 15KW 20: 2KW	21: Single phase 220V 23: Three phase 220V 43: Three phase 400V	Please refer to the following table

Model code

	Standard type			Network type
Code	L	U	E	F	M
RS485 (CN3)	○	○	X	○	○
Full-closed loop control (CN5)⁺¹	○	○	X	○	○
DI extended interface (CN7)	X	○	○	X	X
EtherCAT⁺⁴	X	X	○	X	X
CANpen	X	X	X	X	○
DMCNET	X	X	X	○	X
Analog voltage control	○	○	X	X	○
Impulse input	○	○	X	X	○
PR parameter	○	○	○	○⁺²	○
Electronic cam (E-CAM)⁺³	X	○	X	X	○

Noted:

1. In PR mode, only A2-F supports full closed-loop function.
2. Only DMCNET bus can read and write PR parameters in communication mode.
3. E-CAM function can only be used in PR mode.
4. For information about ASDA A2-E EtherCAT machine type, please refer to the A2-E catalog.
5. -F / -M communication model is A2R at 400V/11kW and 15kW
6. 100W~ 1.5kw marked as 21, single phase/three phase can be connected.

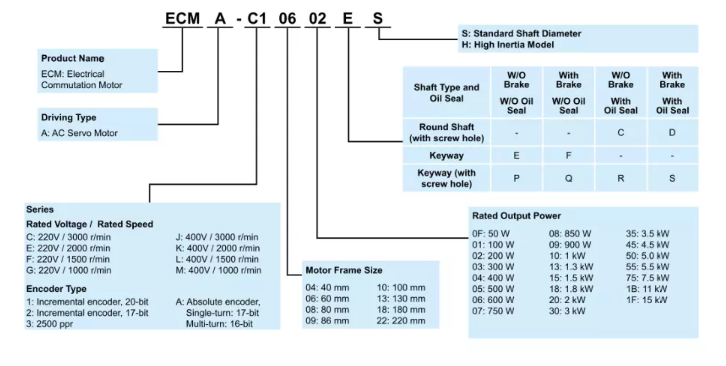

Explanation Model: ECMA Series

Product model

The servo system reference table:

*220V Series

Servo Motor	Servo drive
Model	Model
ECMA-C1040F□S	ASD-A2-0121-□
ECMA-C△0401□S	ASD-A2-0121-□
ECMA-C△0602□S	ASD-A2-0221-□
ECMA-C△0604□S	ASD-A2-0421-□
ECMA-C△0804□7	ASD-A2-0421-□
ECMA-C△0807□S	ASD-A2-0721-□
ECMA-C△0907□S	ASD-A2-0721-□
ECMA-C△0910□S	ASD-A2-1021-□
ECMA-C△1010□S	ASD-A2-1021-□
ECMA-C△1020□S	ASD-A2-2023-□
ECMA-C△1330□4	ASD-A2-3023-□
ECMA-E△1305□S	ASD-A2-0421-□ or ASD-A2-0721-□
ECMA-E△1310□S	ASD-A2-1021-□
ECMA-E△1315□S	ASD-A2-1521-□
ECMA-E△1320□S	ASD-A2-2023-□
ECMA-E△1820□S	ASD-A2-2023-□
ECMA-E△1830□S	ASD-A2-3023-□
ECMA-E△1835□S	ASD-A2-3023-□
ECMA-F△1305□S	ASD-A2-0721-□
ECMA-F△1308□S	ASD-A2-1021-□
ECMA-F△1313□S	ASD-A2-2023-□
ECMA-F△1318□S	ASD-A2-2023-□
ECMA-F△1830□S	ASD-A2-3023-□
ECMA-F△1845□S	ASD-A2-4523-□ or ASD-A2-5523-□
ECMA-F△1855□3	ASD-A2-5523-□
ECMA-F△1875□3	ASD-A2-7523-□
ECMA-F1221B□3	ASD-A2-1B23-□
ECMA-F1221F□S	ASD-A2-1F23-□
ECMA-C△0604□H	ASD-A2-0421-□
ECMA-C△0807□H	ASD-A2-0721-□
ECMA-G△1303□S	ASD-A2-0421-□
ECMA-G△1306□S	ASD-A2-0721-□
ECMA-G△1309□S	ASD-A2-1021-□

Noted:

1) the driver type is ASDA-A2 machine type code, please refer to the actual purchased product type information.
2) the servo motor model is the encoder type. =1: incremental, 20-bit; =2: incremental, 17-bit; =A: absolute.
3) the servo motor model is the brake or keyway/oil seal sample.

The servo system reference table:
*400V Series

Servo Motor	Servo Drive
Model	Model
ECMA-J△0604□S	ASD-A2-0743-□
ECMA-J△0807□S	ASD-A2-0743-□ or ASD-A2-1043-□
ECMA-J△0907□S	ASD-A2-0743-□
ECMA-J△0910□S	ASD-A2-1043-□
ECMA-J△1010□S	ASD-A2-1543-□ or ASD-A2-2043-□
ECMA-J△1020□S	ASD-A2-2043-□ or ASD-A2-3043-□
ECMA-J△1330□4	ASD-A2-3043-□
ECMA-K△1305□S	ASD-A2-0743-□
ECMA-K△1310□S	ASD-A2-1043-□ or ASD-A2-1543-□ or ASD-A2-2043-□
ECMA-K△1315□S	ASD-A2-1543-□ or ASD-A2-2043-□
ECMA-K△1320□S	ASD-A2-2043-□ or ASD-A2-3043-□
ECMA-K△1820□S	ASD-A2-2043-□ or ASD-A2-3043-□
ECMA-L△1305□S	ASD-A2-0743-□
ECMA-L△1308□S	ASD-A2-1043-□
ECMA-L△1313□S	ASD-A2-1543-□ or ASD-A2-2043-□
ECMA-L△1830□S	ASD-A2-3043-□ or ASD-A2-4543-□
ECMA-L△1845□S	ASD-A2-4543-□ or ASD-A2-5543-□ or ASD-A2-7543-□
ECMA-L△1855□3	ASD-A2-5543-□ or ASD-A2-7543-□
ECMA-L△1875□3	ASD-A2-7543-□ or ASD-A2-1B43-□ or ASD-A2-1F43-□
ECMA-L1221B□3	ASD-A2-1B43-□ or ASD-A2-1F43-□
ECMA-L1221F□S	ASD-A2-1F43-□
ECMA-M△1309□S	ASD-A2-1543-□

Noted:
1) the driver type is ASDA-A2 machine type code, please refer to the actual purchased product type information.
2) the servo motor model is the encoder type. =1: incremental, 20-bit; =2: incremental, 17-bit; =A: absolute.
3) the servo motor model is the brake or keyway/oil seal sample.

Application scenario

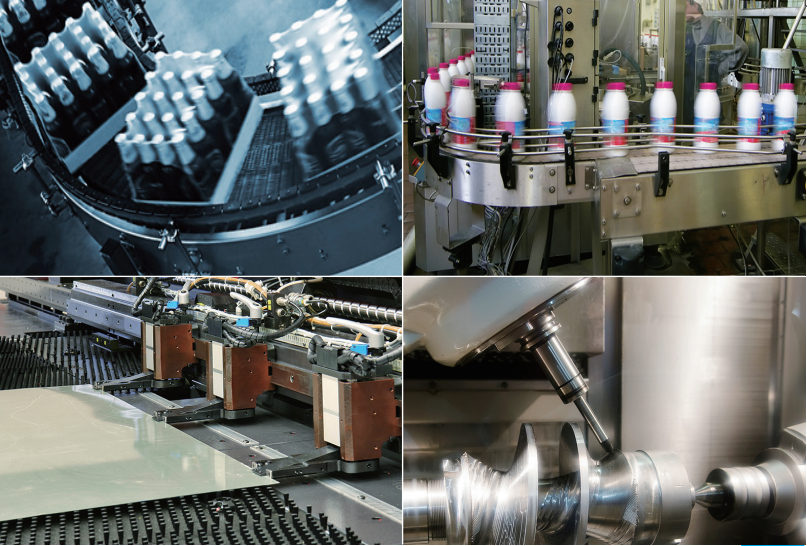

Scope of application: Food Packaging Machinery; Feeding Machine; High Speed Shrink Labelling Machine; TFT Panel Cutting; IC Packaging Machine; Discharge Processing Machine; Precision Engraving Machine; Printing Equipment; Textile Equipment; Etc
