RUILON TAL22010 LED Surge Protection Module Devices
- 1.00 >=150 pieces
| Original Equipment Manufacturer: | OK | Operating Voltage: | 220VAC |
| port: | Shenzhen, Hong Kong | Protection class: | IP67 |
| place of origin; place of origin: | Guangdong, China | structure: | Various electronic components |
| product name: | LED surge protection module device RUILON TAL22010 | strength: | alternating current |
| Supply capacity: | 100,000 pieces per week | brand: | Raylon |
| application: | power supply system | model: | TAL22010/TAL22010N/TAL22010T |
| sample: | 1 | Function: | Protect |
| Packaging Details: | 150PCS/box 31*29*28CM 10.05KGS | Installation method: | 13.5*37.6*81MM |
| payment terms: | L/C, T/T, Western Union, PayPal |

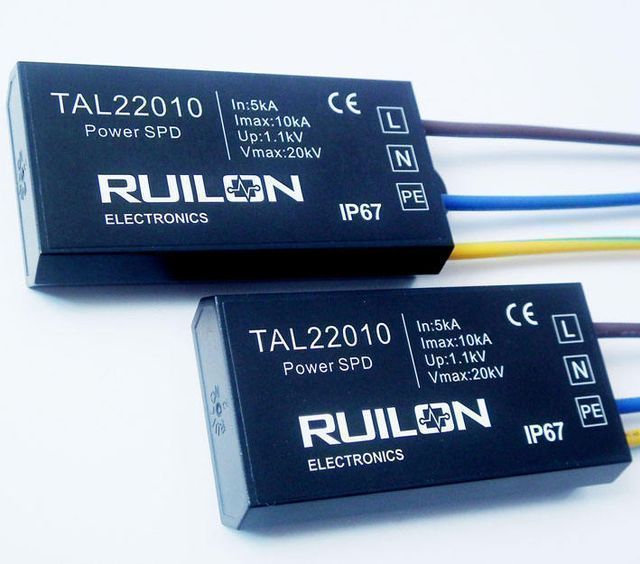

LED surge protection module device RUILON TAL22010

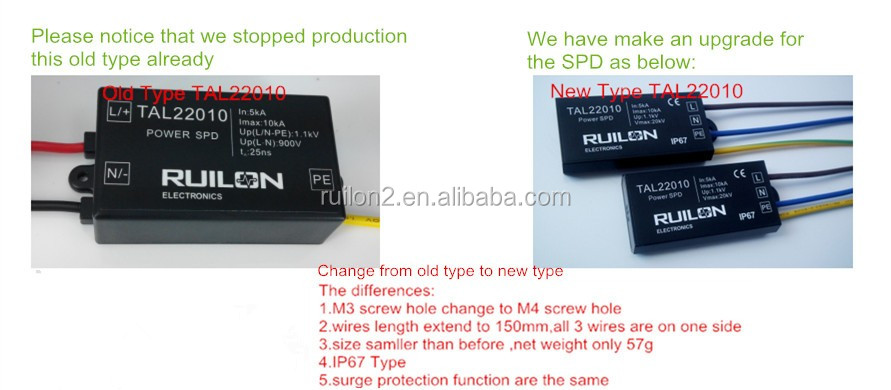

1. Upgrade notification
1\ year warranty, contact Skype: candy-ruilon

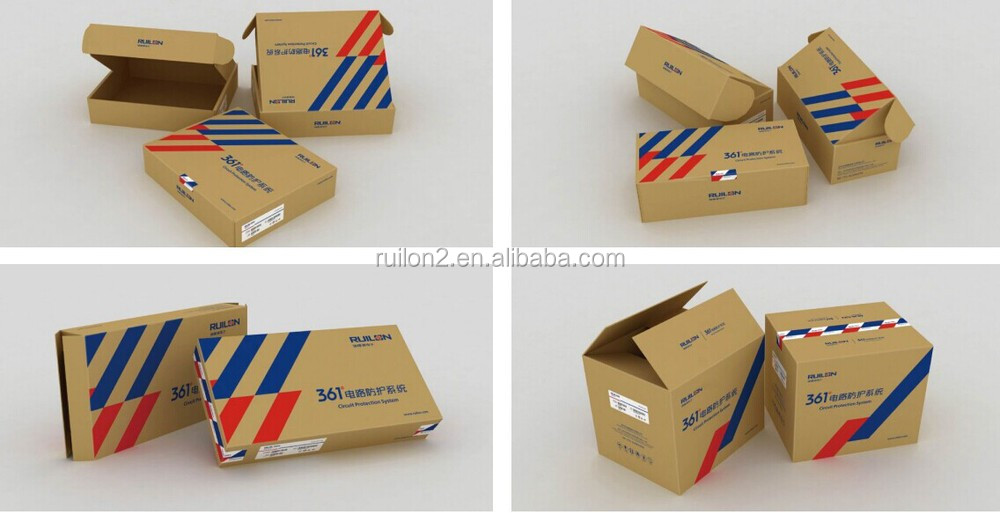

2.Packaging carton picture
Contact Skype :candy-ruilon

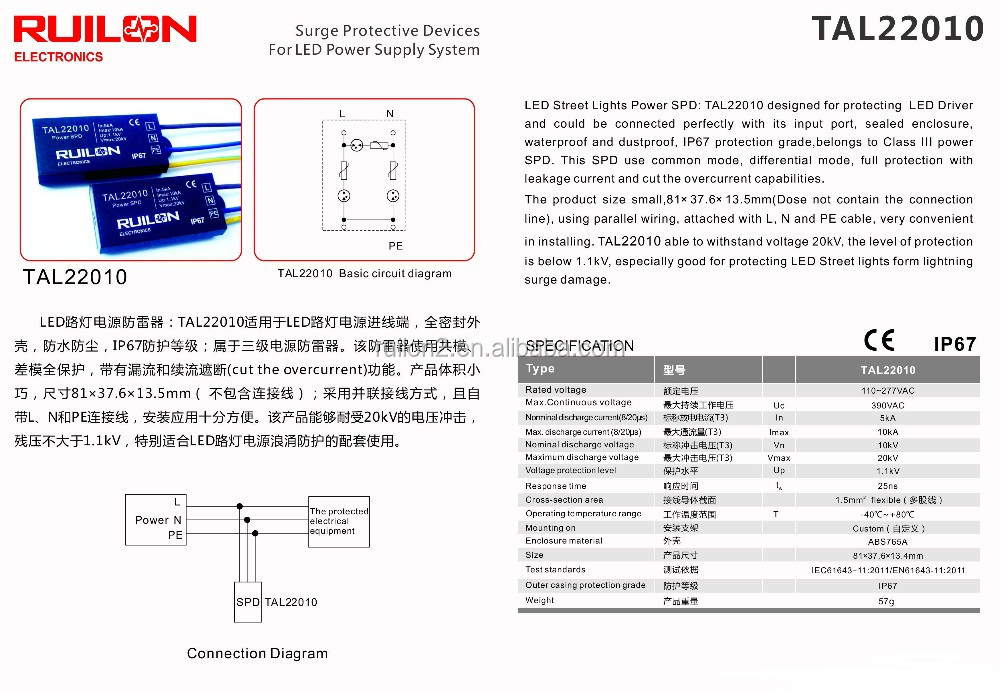

2. structure,Application show:
LED street light power supply SPD: TAL22010 is specially designed to protect 220V LED Driver, can be perfectly connected with the input port, sealed shell, waterproof and dustproof, IP67 protection level, belongs to the class III power supply SPD. The SPD adopts common mode, differential mode, full protection of leakage current and overcurrent cut-off function.The product size is small, 81 × 37.6 × 13.5mm (including installation holes), with parallel wiring, with L, N, PE wires, very convenient for installation. The maximum discharge current is 10kA/line, the nominal discharge current is 5kA/line, the withstand voltage is 20kV, and the protection level is below 1.1kV, which is especially beneficial to protect LED street lights from lightning and surge damage.
3. Parameters:
| type | TAL22010 |
| patent | Yes, we have obtained the patent certificate, all rights belong to Ruilong |
| Warranty | 1 year |

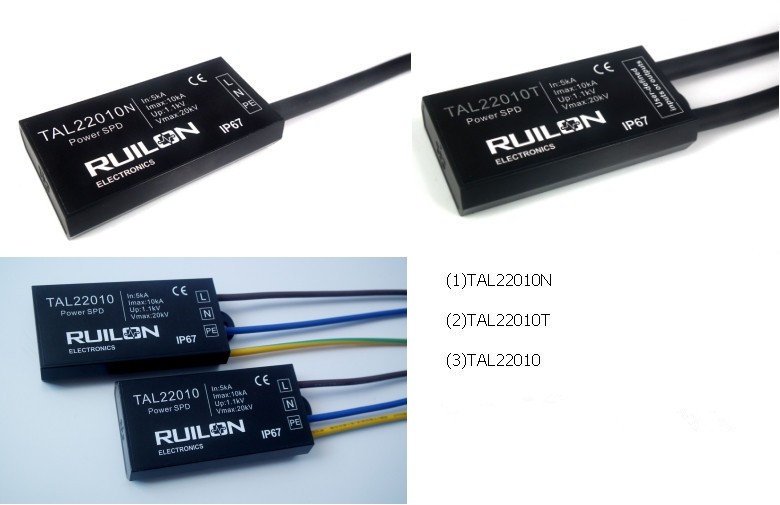

| Connection method | Parallel & Series Options (TAL22010N: Parallel) (TAL22010T: in series) (TAL22010: Parallel) |
| full protection | Yes, protect against surges between: 1.L&N2.N&Ground 3.Ground&L |
| Certification | CE certification |
| standard test | IEC61643-11:2012/EN61643-11:2012 |
| Nominal working voltage (UC) | 110~277VAC |
| Maximum continuous working voltage (UN) | 560VDC (320VAC) |
| Nominal discharge current (In) | 5KA |
| Voltage | 10kV |
| Maximum discharge current (Imax) | 10KA |
| Vamx | 20kV |
| Protection class (top) | 1.1KV |
| Operating frequency (f) | 50-60Hz |
| Response time (tA) | 25ns |
| size | 13.5*37.6*81mm |
| Operating temperature | -40~+80℃ |
| Protection class | IP67 |
| standard test | GB18802.1-2011, EN61643-11 |
| feature | Moisture/Water/Dustproof/Fireproof |
| Net weight per unit | 57 grams |
| All internal components are certified | UL&CE&Rohs certified |
| screw hole | M4 |
| outer material | Class 94-V0 shells |
4. The main application of surge protection module:
• Highway
• Country roads
• PARKING LOT
• Area lighting

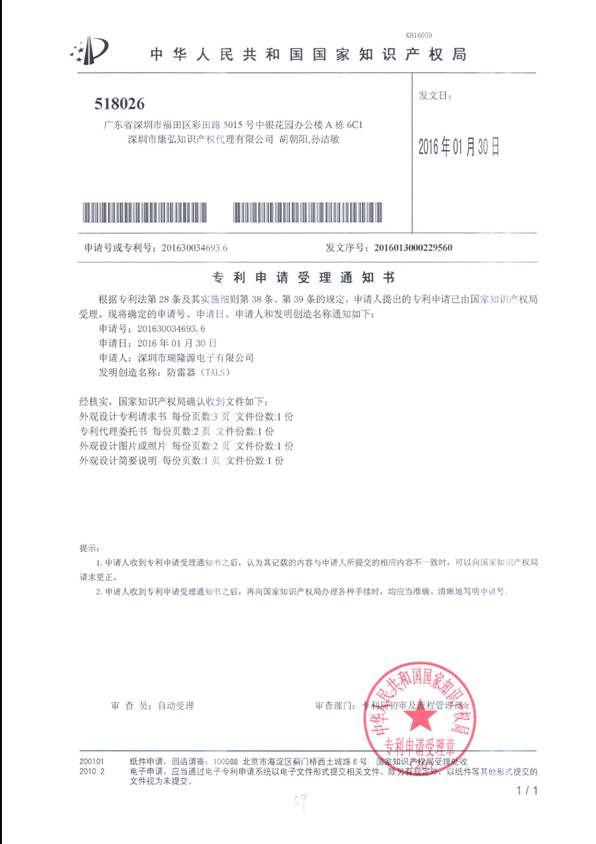

5. Our patent certificate:

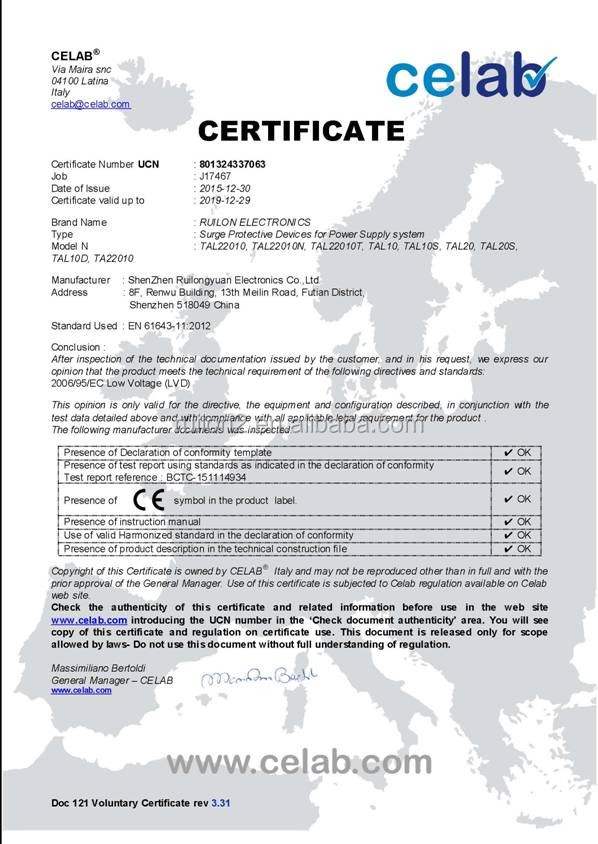

6. CE certification, IP67 certification, ISO certification
7. Our exhibition:
8. Our team:
Welcome to our laboratory for testing! Click below"send"Send your inquiry now!
