Factory Wholesale Deep Copper Rod Grounding 16mm Price
- 1.00 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| diameter: | 14.2/16/17.2/18/20/25mm or customized | Copper thickness: | ≥0.254mm |
| OEM/ODM: | Yes | Function: | For grounding and lightning protection systems |
| Mailing method: | DHL, FEDEX, UPS, by sea or according to customer's requirements | brand: | Yao Ke |
| model: | YKGR-16 | Origin: | Zhejiang, China |
| Straightness error: | ≤1 mm/m | payment terms: | L/C, Western Union, T/T |
| product name: | copper ground rod | tensile strength: | ≥580N/mm2 |
| port: | Ningbo, Shanghai, Hangzhou | Material: | copper clad steel |
| Service life: | ≥30 years | Supply capacity: | 1,000,000 kg per month |
Product Description
Material | copper clad steel | ||||||
copper thickness | ≥0.254mm | ||||||
tensile strength | ≥580N/mm2 | ||||||
diameter | 14.2/16/17.2/18/20/25mm or customized | ||||||
service life | ≥30 years | ||||||
Function | For grounding and lightning protection systems | ||||||
Sample delivery time | Available within 5-10 days for different items | ||||||
Package | Standard packaging, tray or according to customized requirements | ||||||
shipping | DHL, FEDEX, UPS, by sea or according to customer's requirements | ||||||

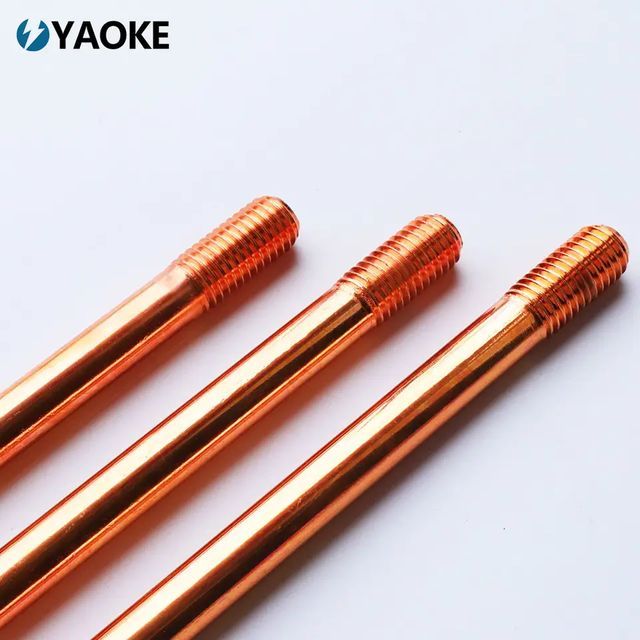

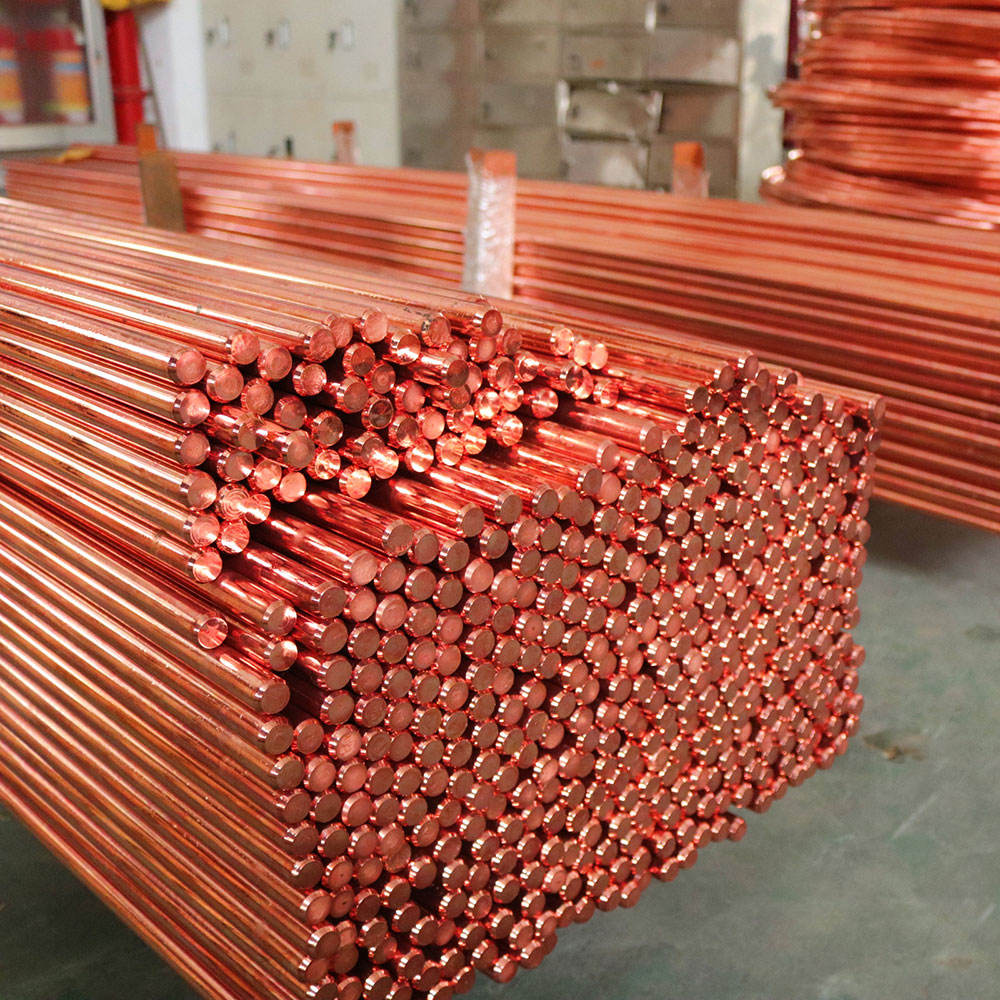

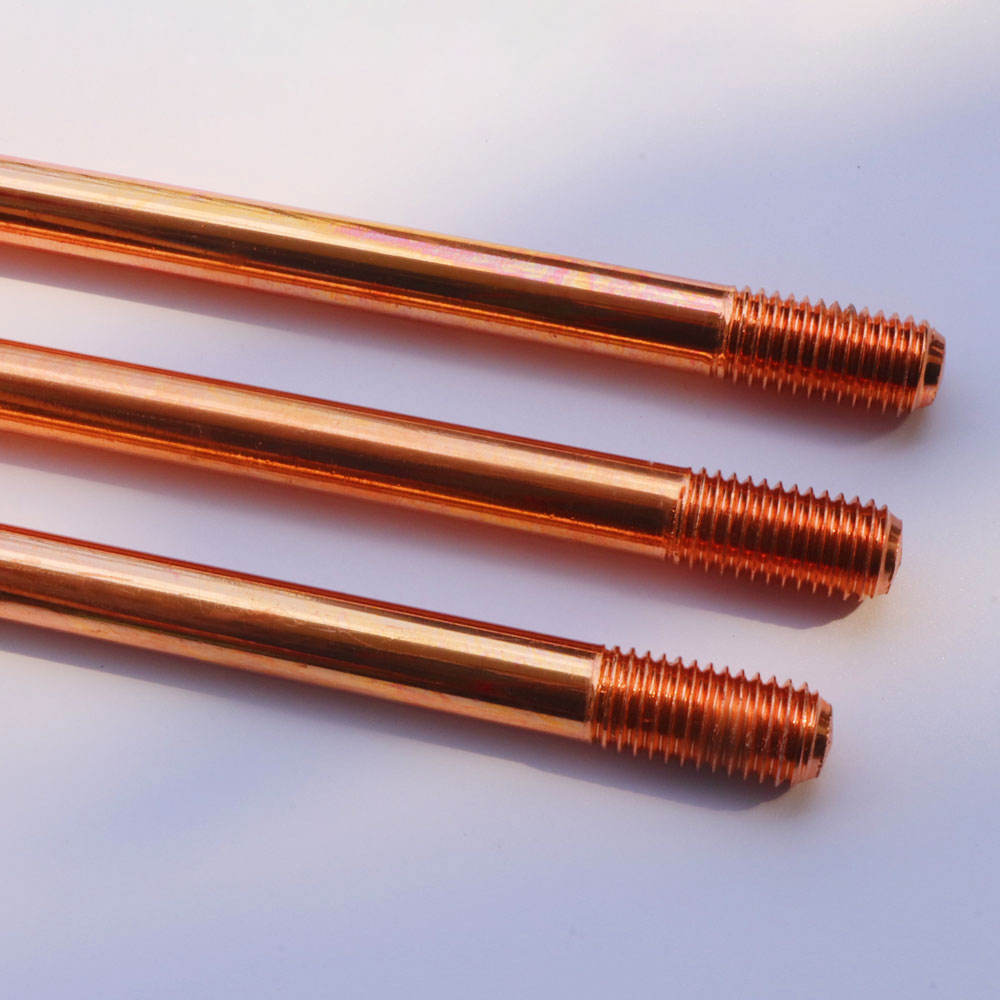

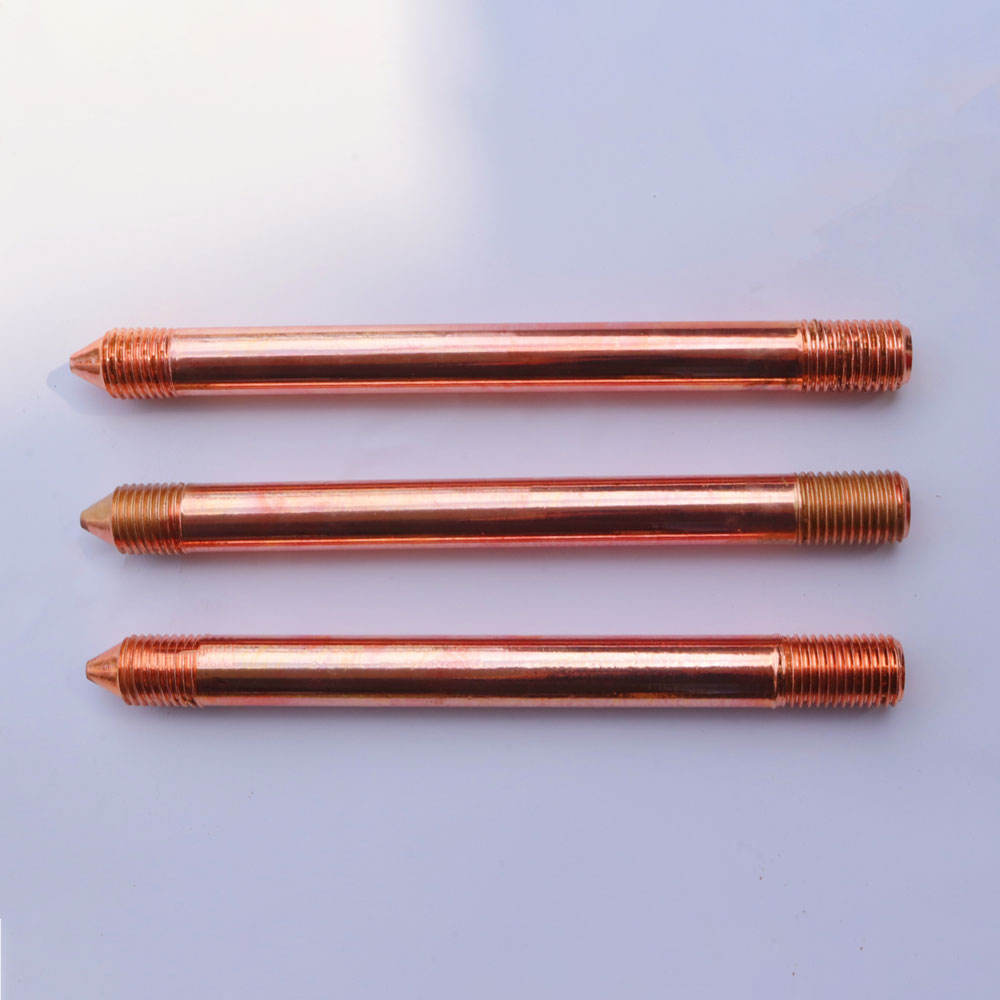

detailed picture
Specification
Common sizes are as follows, customized sizes are also accepted
size | copper thickness (mm) | Diameter (mm) | Length (mm) | Weight (kg) |
Φ14.2×1500 | 0.25 | 14.2 | 1500 | 1.18 |
Φ14.2×1800 | 0.25 | 14.2 | 1800 | 2.24 |
Φ14.2×2500 | 0.25 | 14.2 | 2500 | 3.1 |
Φ14.2×3000 | 0.25 | 14.2 | 3000 | 3.73 |
Φ16×1500 | 0.25 | 16 | 1500 | 2.37 |
Φ16×1800 | 0.25 | 16 | 1800 | 2.84 |
Φ16×2500 | 0.25 | 16 | 2500 | 3.94 |
Φ16×3000 | 0.25 | 16 | 3000 | 4.73 |
Φ17.2×1500 | 0.25 | 17.2 | 1500 | 2.73 |
Φ17.2×1800 | 0.25 | 17.2 | 1800 | 3.28 |
Φ17.2×2500 | 0.25 | 17.2 | 2500 | 4.56 |
Φ17.2×3000 | 0.25 | 17.2 | 3000 | 5.47 |
Φ18×1500 | 0.25 | 18 | 1500 | 3 |
Φ18×2500 | 0.25 | 18 | 2500 | 4.99 |
Φ18×3000 | 0.25 | 18 | 3000 | 5.99 |
Φ20×1500 | 0.25 | 20 | 1500 | 3.7 |
Φ20×2500 | 0.25 | 20 | 2500 | 6.16 |
Φ20×3000 | 0.25 | 20 | 3000 | 7.39 |
Φ25×1500 | 0.25 | 25 | 1500 | 5.78 |
Φ25×2500 | 0.25 | 25 | 2500 | 9.63 |
Φ25×3000 | 0.25 | 25 | 3000 | 11.55 |

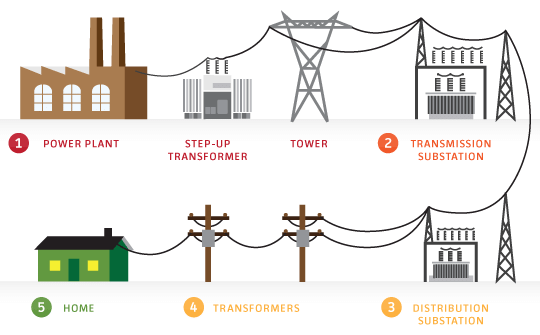

application

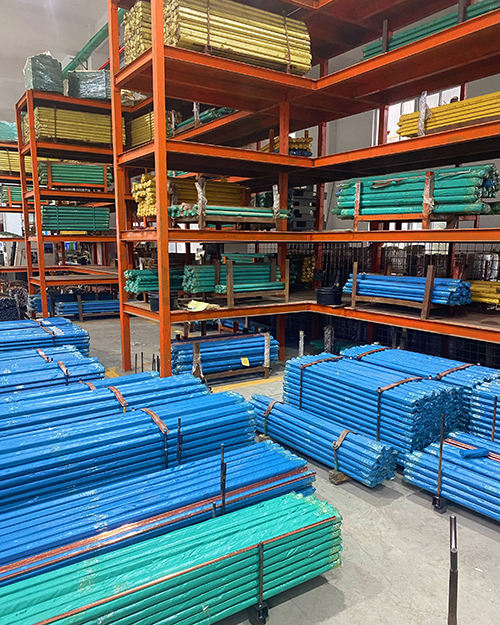

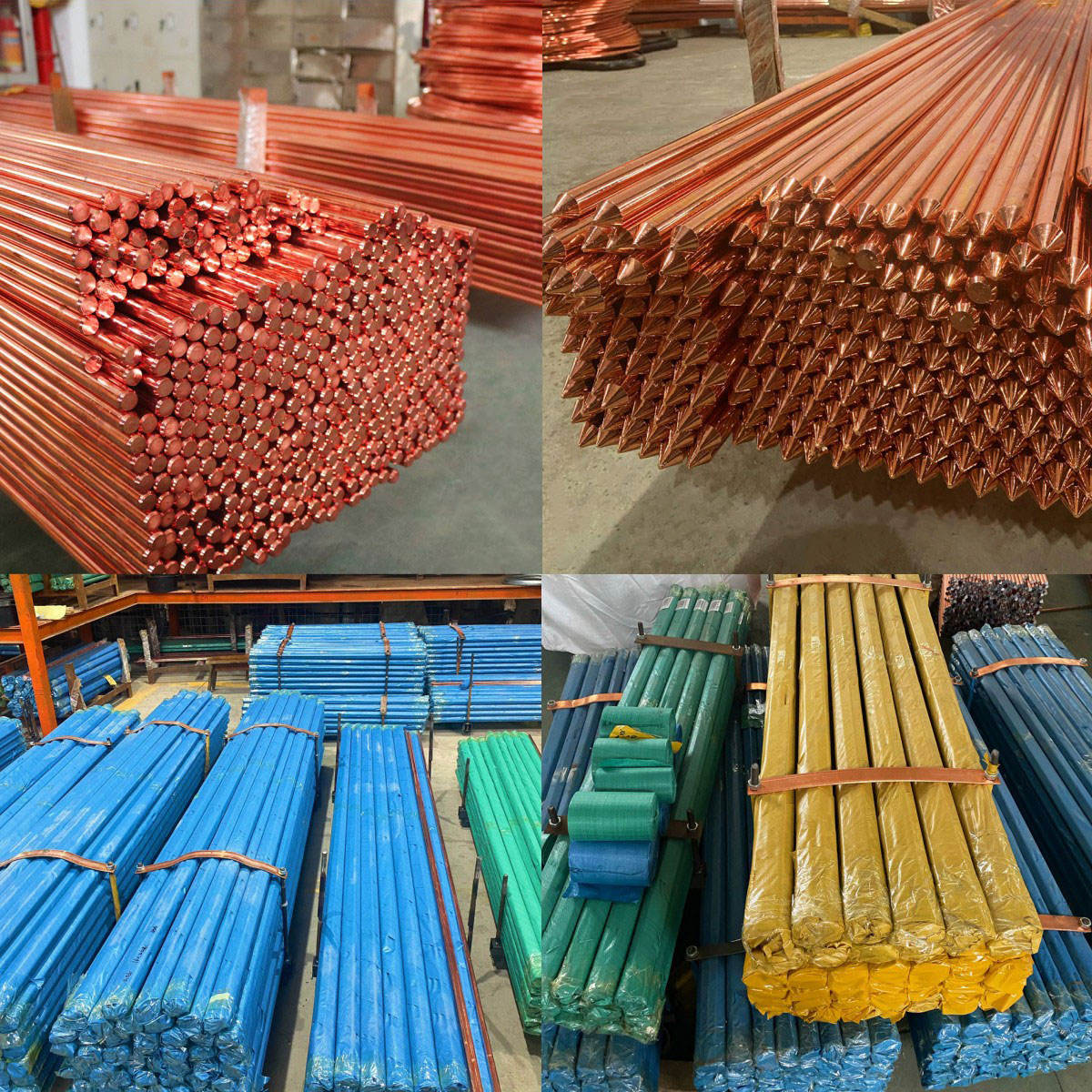

Product packaging
