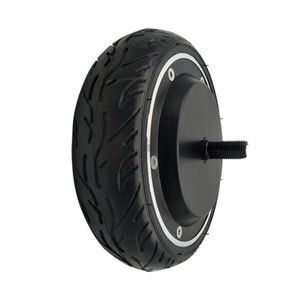

Robotics 6.5 inch 24V 150W 150kg load brushless electric bldc servo hub motor wheel with encoder Products from Shenzhen Zhongling Technology Co., Ltd.

Product Details

Efficiency:	Ie 3;	Usage:	Robot, AGV;
Speed(RPM):	200RPM;	Shaft type:	single/double shaft;
Rated voltage:	24VDC;	Model Number:	ZLLG65ASM250-L;
Single package size:	26X21.5X22.5 cm;	Rated torque:	6.5N.M;
Type:	SERVO MOTOR;	Rated speed:	200RPM;
Power type:	DC motor;	Single gross weight:	3.1 KG;
Rated power:	150W;	Certification:	CE, ISO9001,ce,ISO9001;
Continuous Current(A):	3-17A;	Outside diameter with tyre:	170mm;
Torque:	6.5N.M;	Protection mode:	IP54;
Protect Feature:	Drip-proof;	Construction:	Permanent Magnet;
Selling Units:	Single item;	Brand Name:	ZLTECH;
Rated current:	3-17A;	Packaging Detail:	Wrapped with plastic bags and embedded in the foam; Carton size: 26x21.5x22.5cm; QTY: 2pcs per carton; Carton Weight: 6.3kg/2pcs;
Place of Origin:	Guangdong China;	Package Preview:	;
Warranty:	3months-1year;	Commutation:	Brushless;

Robotics 6.5 inch 24V 150W 150kg load brushless electric bldc servo hub motor wheel with encoder

Product Description

Parameters:

Outside Diameter	6.5 inch
Voltage	24V
Encoder	1024 line Incremental Photoelectric Encoder
Efficiency	≥85%
Power type	DC motor
Carrying weight	≤150KG
Shaft connection	thread
Brake method	electric brake
Excitation mode	permanent magnet type
Tyre form	with pattern
Matching driver	ZLAC706/ZLAC706-CAN/ZLAC706-RC
Environment temperature	-10 ~ +40 degree centigrade

Our hub servo motor advantage:

Self R & D, have own patent and great market competitiveness
Built-in high precision encoder 12-21 bits optional, also can be customized, electric brake, high load carrying etc
Simple structure, easy installation and high cost performance
High precision, high power density, low noise, efficient and durable
The motor and the outer tyre are integrated, beautiful design
4-15 inch optional, power: 50-2KW optional, accept OEM/OEM for all models

More robot motor pictures:

Incremental Photoelectric encoder:

Dimension of the servo hub motor double shaft:

Dimension of the single shaft:

More Robot AGV dc hub servo motor:

Application: service Robot, AGV car

Bulk production

Patent for the servo hub motor:

Packaging & Shipping

Package: carton with foam, quantity per carton will depend on the hub motor size.

Shipping: goods will be deliveried by air(EMS, DHL, FedEx,TNT etc), by train or by boat according to your requirements.

Company Information

1. Brief introduction:

Shenzhen Zhongling Technology Co., Ltd. is a high-tech enterprise specialized in R&D, production and sales of industrial automation transmission products; The company gathered a large number of R&D elites being engaged in motion control field for more than 10 years and constantly provide cost-effective motion control products for our partners.

2. Product ranges and application:

Robot Hub Servo Motor, Digital Stepper Driver, Closed Loop Stepper Driver, Low-voltage DC Servo Driver and Stepper Motor, Multi-axis Motion Controller etc.. And widely used in hundreds of industries like Electronics, Machinery, Measurement, Laser, Medical, Textile, Packaging, LDE equipment, Channel Gates and Advertising etc.. Our products has win great popularity in global and been exported to global market like Southeast Asia, Europe and the United States etc.

3. Our service philosophy: Create value for customers.

4. Core value: Dedicated, innovative, virtuous, and pragmatic

5. Our vision: Being the most professional brand in the field of automation control, serving the global industry

About ZLTECH products on Exhibition:

Contact: Tel: 0086-0755-29799302; Cel: 0086-18118726452;

FAQ

1. Factory or trader?
We are factory, and have professional R&D team as introduced in company information.

2. How about the delivery?
- Sample: 3-5 days.
- Bulk order: 15-30 days.

3. What is your after-sales services?
1. Free maintenance within 12 months guarantee, lifetime consultant.
2. Professional solutions in installation and maintence.

4. Why choose us?
1. Factory Price & 24/7 after-sale services.
2. From mold customization to material processing and welding, from fine components to finished assembly, 72 processes, 24 control points, strict aging, finished product inspection.
