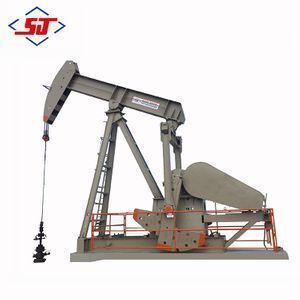

API Spec11E beam pumping unit for oilfield
- 8000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Stroke Length: | 48~216inch; | Power(W): | Electric; |
| Payment Terms: | L/C,D/P,T/T; | Gear Reducer model: | 40-1824; |
| Dimension(L*W*H): | (5-13.63)*(2-3.6)*(3.5-10.6); | Weight: | 4-44Tons; |
| Port: | Qingdao, Tianjin, Shanghai; | Warranty: | 5 Years; |
| Model Number: | C-40D~C-182D; | Gear type: | Involute gear reducer;double circular arc gear reducer; |
| Voltage: | 380V; | Rated Torque: | 40000-1824000in.ibs; |
| Gear reducer model: | 40-1824; | Production Capacity: | 100%; |
| Place of Origin: | Shandong China (Mainland); | Packaging Detail: | Package for the whole unit and transported with the container, each unit will need 0.5-2 containers. (according to the size of models); |
| Delivery Detail: | 60 days after order; | Supply Ability: | 100 Set/Sets per Month; |
| Wire line type: | 6*37IWR-1770MPa; | Brand Name: | SJ; |
| Features: | Conventional Walking-beam; | Stroke Frequency: | 4~12; |
| Gear reducer lubricant: | 120# gear lubricant in winter,200# gear lubricant in summer; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Crank direction: | Clockwise and Counterclockwise; | Certification: | API 11E; |
| Condition: | New; | BalanceType: | crank balance; |
API Spec11E beam pumping unit for oilfield
Product Description
1. Choice ranging from double circulai arc gear reducer to involute gear reducer
2. Carry out API 11E standards strictly
3. Complete production tooling
4. The use of forgings in key parts
5. 5 years warranty
Specifications
| NO. | Model | Load Rating(ibs) | Stroke Length(in) | Stroke Frequency(1/min) |
1 | C-40D-76-48 | 7600 | 48;37;26 | 6;9;12 |
| 2 | C-57D-76-54 | 7600 | 54;41;28 | 6;9;12 |
| 3 | C-80D-133-54 | 13300 | 54;43;31 | 6;9;12 |
| 4 | C-80D-119-64 | 11900 | 64;52;40 | 6;8;10 |
| 5 | C-114D-119-86 | 11900 | 86;76;59 | 6;8;10 |
| 6 | C-114D-143-64 | 14300 | 64;52;40 | 6;8;10 |
| 7 | C-114D-143-74 | 14300 | 74;62;50 | 6;8;10 |
| 8 | C-160D-173-86 | 17300 | 86;74;61 | 6;8;10 |
| 9 | C-160D-200-76 | 20000 | 76;62;51 | 6;8;10 |
| 10 | C-228D-213-120 | 21300 | 120;102;85 | 5;7;9 |
| 11 | C-228D-246-86 | 24600 | 86;74;61 | 5;7;9 |
| 12 | C-228D-173-100 | 17300 | 100;86;71 | 5;7;9 |
| 13 | C-320D-305-120 | 30500 | 120;102;85 | 5;7;9 |
| 14 | C-320D-256-120 | 25600 | 120;100;86 | 5;7;9 |
| 15 | C-456D-305-120 | 30500 | 120;102;85 | 5;7;9 |
| 16 | C-456D-305-144 | 30500 | 144;124;106 | 4;6;8 |
| 17 | C-912D-427-192 | 42700 | 192;164;136;110 | 4;6;8 |
| 18 | C-1280D-365-192 | 36500 | 192;164;136;110 | 4;5;6 |
| 19 | C-1280D-427-192 | 42700 | 192;164;136;110 | 4;5;6 |
| 20 | C-1280D-427-216 | 42700 | 216;192;168;144 | 4;5;6 |
| 21 | C-1824D-427-192 | 42700 | 192;164;136;110 | 4;5;6 |
| 22 | C-1824D-427-216 | 42700 | 216;192;168;145 | 4;5;6 |
