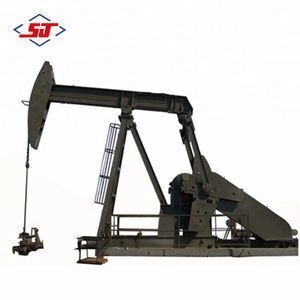

Oilwell API C-640D-305-192 sucker rod beam pumping unit

Supplier: Shengli Oilfield Shengji Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr John zhou
Price: $32000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/P,T/T;	Packaging Detail:	Package for the whole unit and transported with the container, each unit will need 0.5-2 no. of containers (according to the size of model) for Oilwell API C-640D-305-192 sucker rod beam pumping unit;
Production Capacity:	100%;	Place of Origin:	Shandong China;
Condition:	New;	Gear type:	Involute gear reducer;double circular arc gear reducer;
Supply Ability:	100 Set/Sets per Month Oilwell API C-640D-305-192 sucker rod beam pumping unit;	Features:	Conventional Walking-beam;
Warranty:	1 Year;	Weight:	4-44Tons;
Port:	QingDao,TianJin,ShangHai;	Stroke frequency:	4~12;
After-sales Service Provided:	Field maintenance and repair service;	Applicable Industries:	Energy & Mining;
Stroke length:	48~216inch;	Gear reducer lubricant:	120# gear lubricant in winter,200# gear lubricant in summer;
Product name:	Oilwell API C-640D-305-192 sucker rod beam pumping unit;	Blanced type:	crank blanced;
Model Number:	C-40D~C-1824D;	Dimension(LWH):	(5-13.63)(2-3.6)(3.5-10.6);
Certification:	API 11E;	Brand Name:	SJ;
Gear reducer model:	40~1824;	Rated torque:	40000~1824000in.lbs;
Crank direction:	Clockwise and Counterclockwise;	Load Rating:	7600~42700lbs;
Voltage:	380V;

Oilwell API C-640D-305-192 sucker rod beam pumping unit

Product Description

Shengji can provide a wide range of API pumping units depending on users’ requirements. They come with a 1-year warranty. Shengji API units are available according to customer requests. They can choose from double circular arc gear reducer or involute gear reducer. Shengji has nearly 200 pumping unit processing equipment and a complete production tooling that guarantees accuracy in the manufacturing process. Shengji pumping unit has the following key parts: crank pin, taper sleeve and a tailstock. By improving the supporting equipment, scientific processing technology, strict quality control,superb technical level; Shengji API pumping units are also suitable for inferior working conditions. These API pumping units are reliable and stable, hence their popularity among customers since Shengji uses forging for key parts.

Shengji exports more than 600 API pumping units annually with most products sold to reputable companies such as PDO, CENTRY, SHORESS, Schlumberger, OMV. Shengji pumping units have low failure rates.

Features

1. Carry out API 11E standards strictly.

2. Reducer with API production qualification.

3. Complete production tooling.

4. The use of forgings in key parts.

5. Engineers available to service machinery overseas

Specifications

NO.	Model	Load Rating (lbs)	Stroke length (in)	Stroke frequency (min^-1)
1	C-40D-76-48	7600	48;37;26	6;9;12
2	C-57D-76-54	7600	54;41;28	6;9;12
3	C-80D-133-54	13300	54;43;31	6;9;12
4	C-80D-119-64	11900	64;52;40	6,8,10
5	C-114D-119-86	11900	86;76;59	6,8,10
6	C-114D-143-64	14300	64;52;40	6,8,10
7	C-114D-143-74	14300	74;62;50	6,8,10
8	C-160D-173-86	17300	86;74;61	6,8,10
9	C-160D-200-76	20000	76;62;51	6,8,10
10	C-228D-213-120	21300	120;102;85	5,7,9
11	C-228D-246-86	24600	86;74;61	5,7,9
12	C-228D-173-100	17300	100;86;71	5,7,9
13	C-320D-305-120	30500	120;102;85	5,7,9
14	C-320D-256-120	25600	120;100;86	5,7,9
15	C-456D-305-120	30500	120;102;85	5,7,9
16	C-456D-305-144	30500	144;124;106	4,6,8
17	C-640D-365-144	36500	144;124;106	4,6,8
18	C-640D-365-168	36500	168;142;116	4,6,8
19	C-640D-305-168	30500	168;142;116	4,6,8
20	C-640D-365-192	36500	192;164;136;110	4,5,6
21	C-912D-365-144	36500	144;124;106	4,6,8
22	C-912D-365-168	36500	168;142;116	4,6,8
23	C-912D-305-192	30500	192;168;135;120,95,74	4,5,6
24	C-912D-365-192	36500	192;164;136;110	4,5,6
25	C-912D-427-144	42700	144;124;106	4,6,8
26	C-912D-427-168	42700	168;142;116	4,6,8
27	C-912D-427-192	42700	192;164;136;110	4,6,8
28	C-1280D-365-192	36500	192;164;136;110	4,5,6
29	C-1280D-427-192	42700	192;164;136;110	4,5,6
30	C-1280D-427-216	42700	216,192;168;144	4,5,6
31	C-1280D-427-240	42700	240;207;175;145	4,5,6
32	C-1824D-427-192	42700	192;164;136;110	4,5,6
33	C-1824D-427-216	42700	216;192;168;145	4,5,6
