Solid State Relay SSR-40DA dc-ac 40A actually 3-32V dc 24 -380V AC SSR relay No Protection SSR-40DA details
Single package size:10X10X5 cm;Place of Origin:China;
Size:Miniature;Contact Load:Low Power;
Single gross weight:0.11 KG;Selling Units:Single item;
Usage:General Purpose;Color:Picture Shows;
Protect Feature:Sealed;Weight:0.08kg;
Theory:Solid State Relay;Model Number:SSR-40DA;
Brand Name:Original Brand;Condition:100% new;
SINOTIMER Solid State relay SSR-40D dc-ac 10A 25A 40A actually 3-32V dc 24-380V ac SSR relay protection
You must select the correct type (current and control mode)
It is also important to distribute the heat of a suitable radiator (ssr).
Warning:

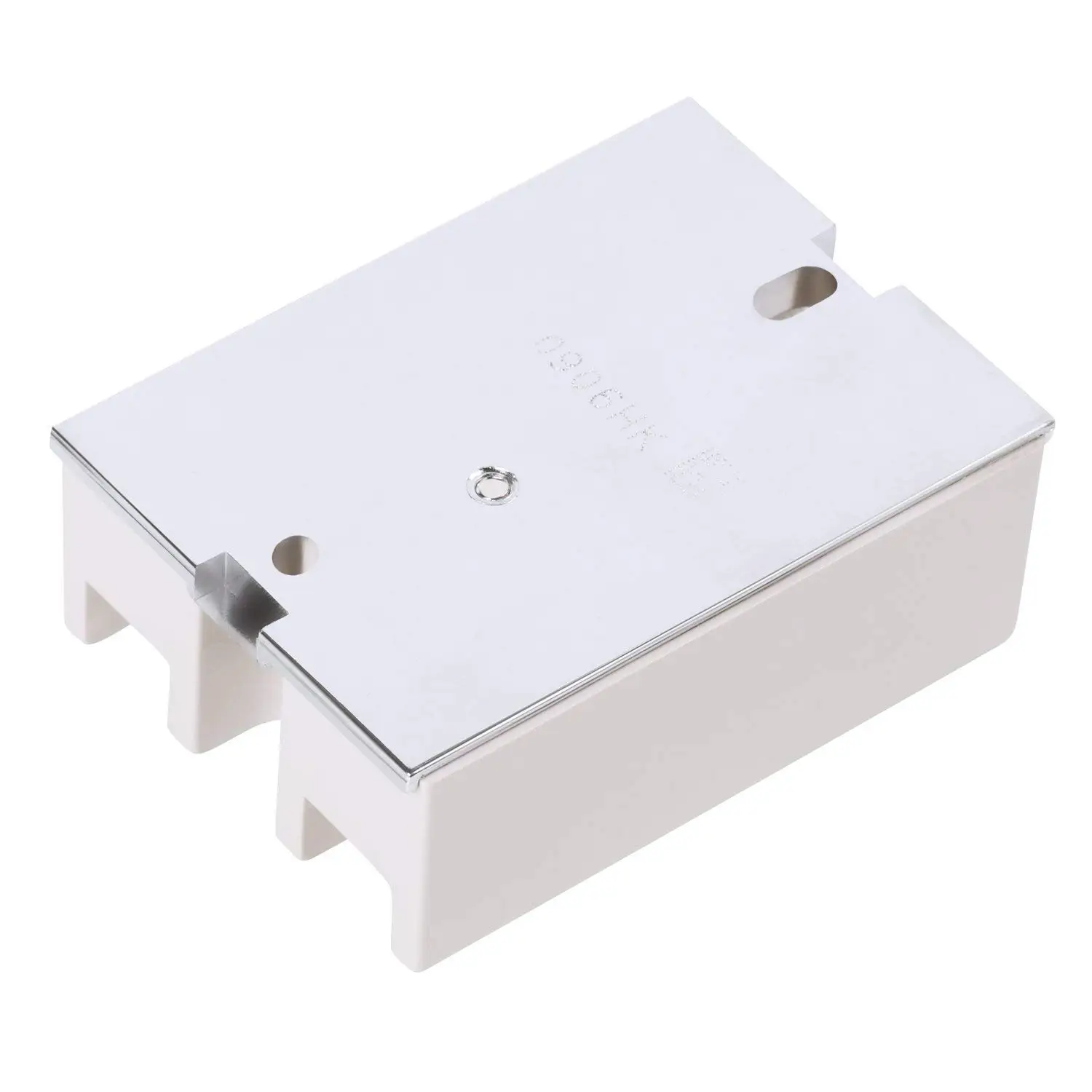

Since the heat generation of ssr is too high, the SSR should be loaded to the radiator when the load current is above 10A. and the thermal grease compound between the SSR and the radiator.
Meanwhile, a cooling fan is required when the current is above 60A.
The rate depends on the type of installation for your equipment.
Resistant load: 60% Inductive load: 30%



Input 3-32VDC (Constant Current) 13mA And 12V
Output 24-380VAC / 90-480VAC (10-75Amp)
Control Type Zero Cross Trigger
Response Time ON <20 ms / OFF <40 ms
Withstand Voltage 2.5 Kvac / 1 min
Insulation Strength Over 50 m / 500DC

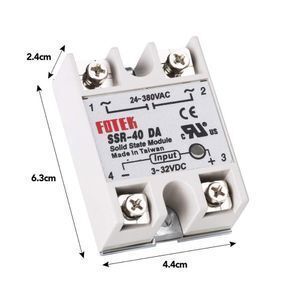

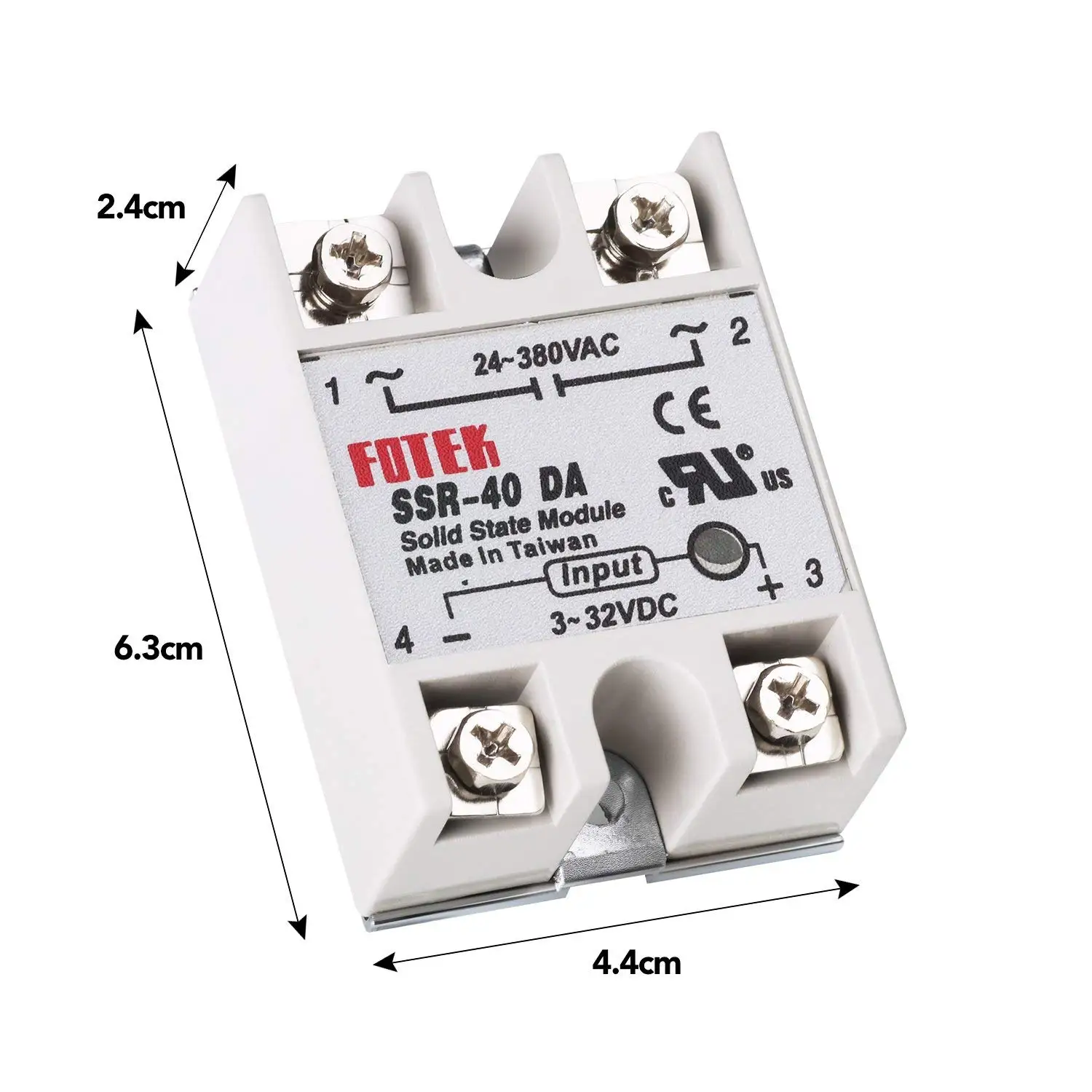

Dimmensio 63 * 45 * 23.2mm

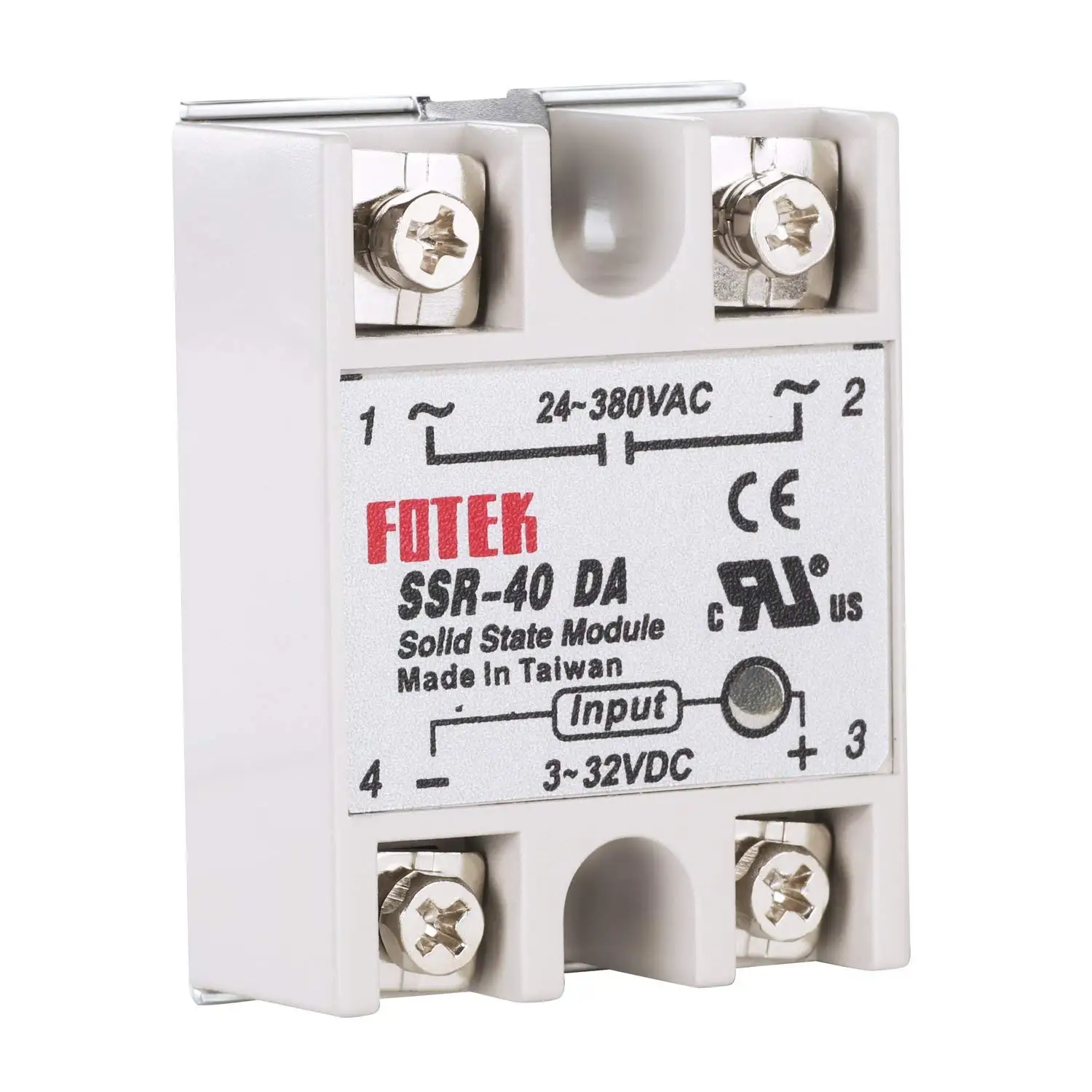

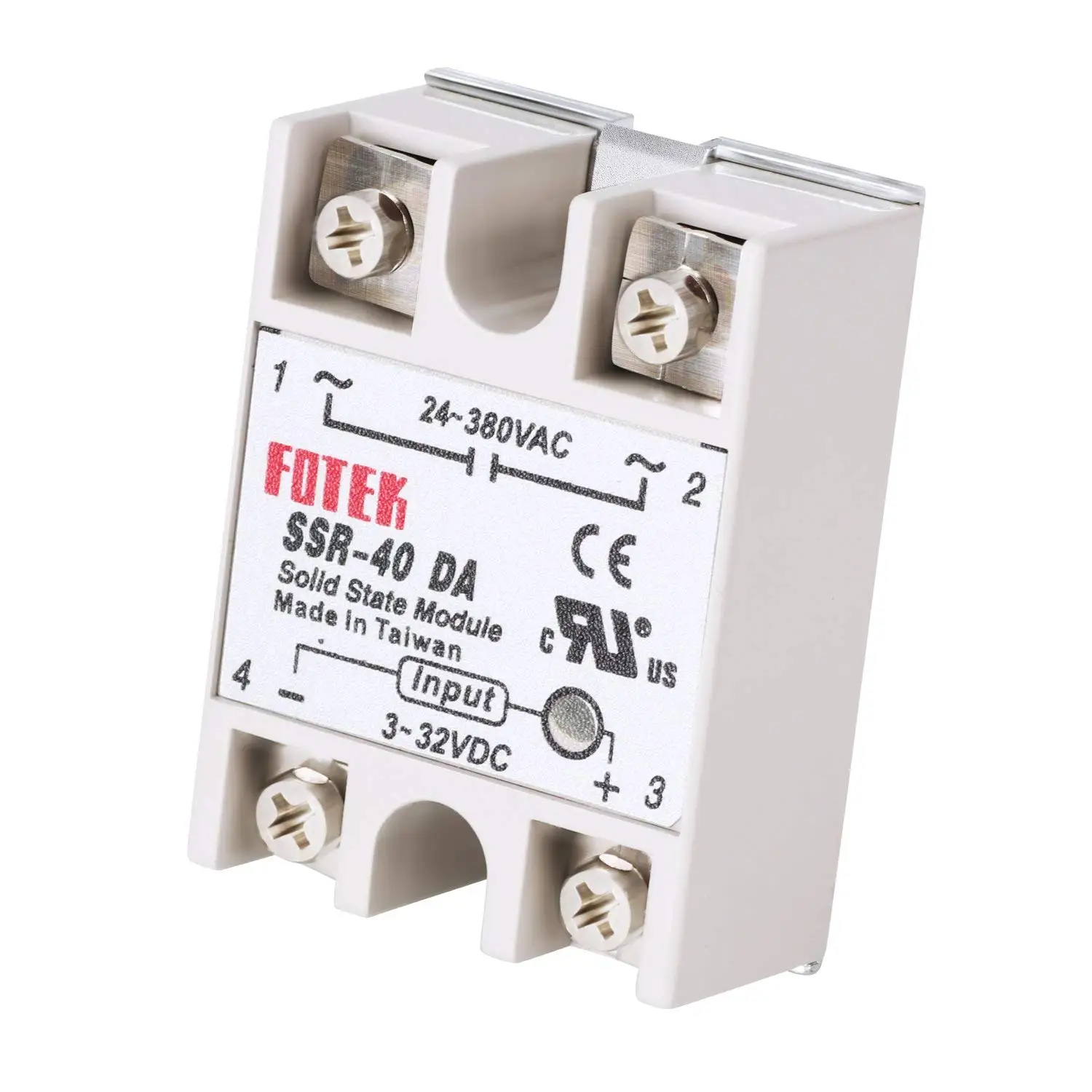

High Strength ABS Engineering Plastic, Gray LED Indicator With Case
Basic Type SSR-10DA SSR-25DA SSR-40DA

Single package size:10X10X5 cm;Place of Origin:China;Size:Miniature;Contact Load:Low Power;Single gross weight:0.11 KG;Selling Units:Single item;Usage
above is detail introduction of Solid State Relay SSR-40DA dc-ac 40A actually 3-32V dc 24 -380V AC SSR relay No Protection SSR-40DA, include price, model, picture and supplier of Solid State Relay SSR-40DA dc-ac 40A actually 3-32V dc 24 -380V AC SSR relay No Protection SSR-40DA.
