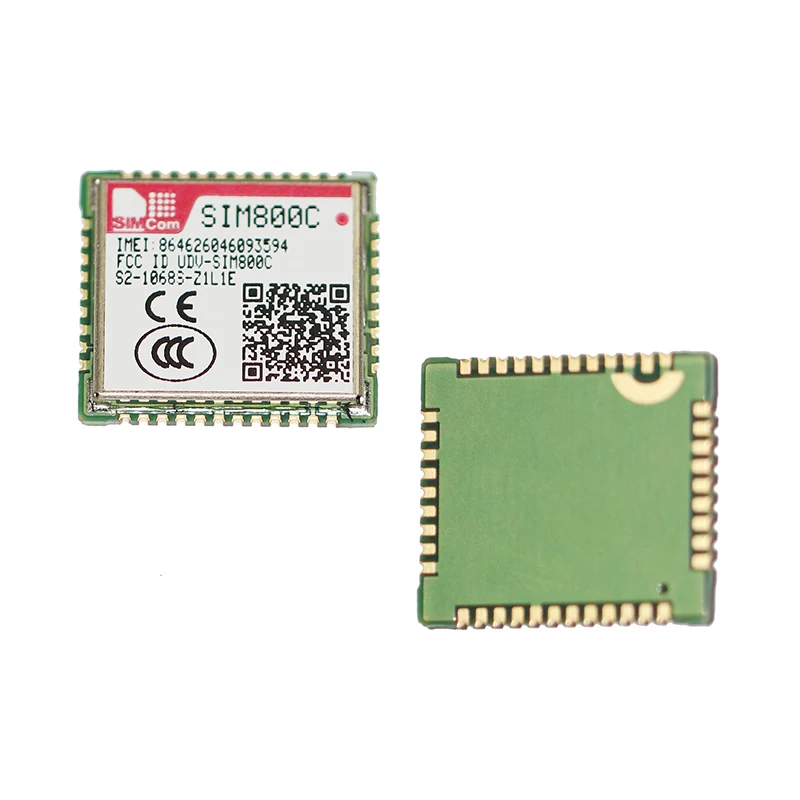

SIM800 GSM CHIP SIM800C Quad-band GSM/GPRS Module 2G 24M,32M Wireless Module With Bluetooth

Supplier: Shenzhen Hechuang Lianying Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr KEN LIN
Price: $2.23 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Place of Origin:	China;	Selling Units:	Single item;
Product Name:	SIM800C;	Brand Name:	CHIP GUEST;
weight:	20g;	D/C:	new year;
Model Number:	SIM800C;	Single package size:	5X5X5 cm;
Color:	Picture Shows;	Package Type:	box;
Package:	Module;	Condition:	New100%;
Single gross weight:	0.02 KG;

new

General features

•Quad-band 850/900/1800/1900MHz

• GPRS multi-slot class 12/10

• GPRS mobile station class B

• Compliant to GSM phase 2/2+

–Class 4 (2 W @ 850/900MHz)

–Class 1 (1 W @ 1800/1900MHz)

• Dimensions: 17.6*15.7*2.3mm

• Weight: 1.3g

• Control via AT commands

(3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)

• Supply voltage range 3.4 ~ 4.4V

• Low power consumption

• Operation temperature:-40℃ ~85℃

Specifications for GPRS Data
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD

Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• POP3/SMTP
• DTMF
• Jamming Detection
• Audio Record
• SSL
• Bluetooth 3.0(optional)

Specifications for voice
• Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
• AMR
–Half rate (HR)
–Full rate (FR)
• Hands-free operation (Echo suppression)

Interfaces
42 SMT pins including
• Analog audio interface
• RTC backup
• USB interface
• Serial interface
• Interface to external SIM 3V/1.8V
• GPIO
• ADC
• GSM Antenna pad
• Bluetooth Antenna pad

Compatibility
• AT cellular command interface

Certifications
