PU polyurethane 2020 discontinuous pu rockwool sandwich panel production line machine

Product details
After Warranty Service:Video technical support,Online support,Field maintenance and repair service;Marketing Type:Hot Product 2019;
Applicable Industries:Manufacturing Plant;Length(mm):2000-16000;
Production speed(m/min):3-8 Adiustable;Condition:New;
Place of Origin:Zhejiang China;Port:Shanghai; Ningbo;
Warranty of core components:1 Year;Width(Mpa):≤1250(Max);
Supply Ability:100 Set/Sets per Month pu sandwich panel machine;Keyword:pu sandwich panel machine;
Local Service Location:None;Showroom Location:None;
After-sales Service Provided:Engineers available to service machinery overseas,Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Thickness(mm):0.4-0.8;
Work pressure on pouring foam(Bar):150-200;Type::Color steel sheet;galvanized sheet;Aluminum sheet;
Packaging Detail:1Export standard containerized 2Nuded packing 3Container pu sandwich panel machine;Brand Name:JINGDA;
Machinery Test Report:Provided;Valid length of double belt conveyor(mm):16000-36000;
Video outgoing-inspection:Provided;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,30% as deposit,balance paid before delivery;
Width(mm):600-1200;Warranty:1 Year;
Core Components:PLC;

2020 top quality sincere rockwool pu sandwich panel  pu polyurethane machine product line

Best Selling Sincere Rockwool sandwich panel machinery


General description

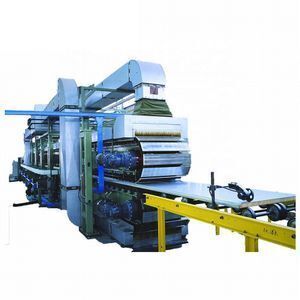

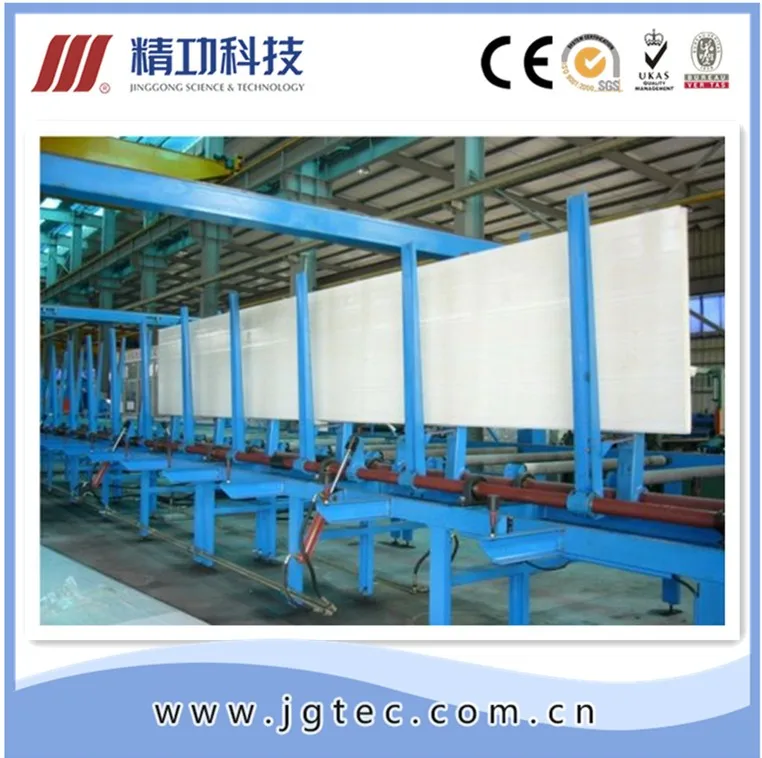

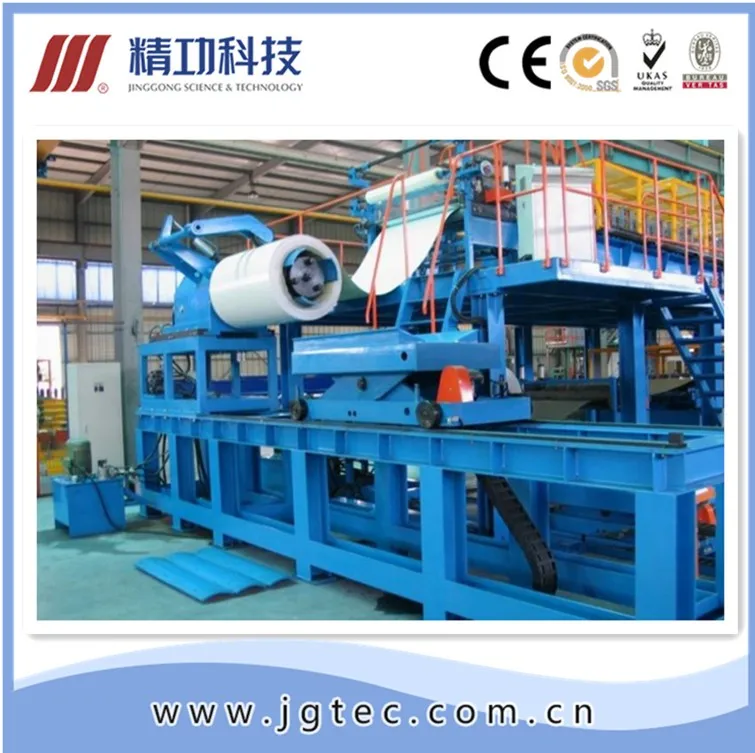

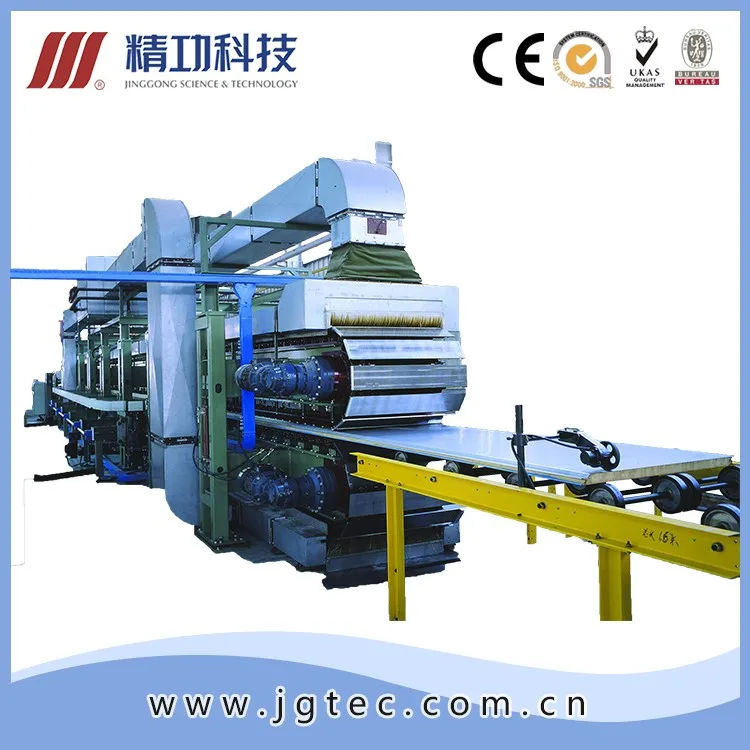

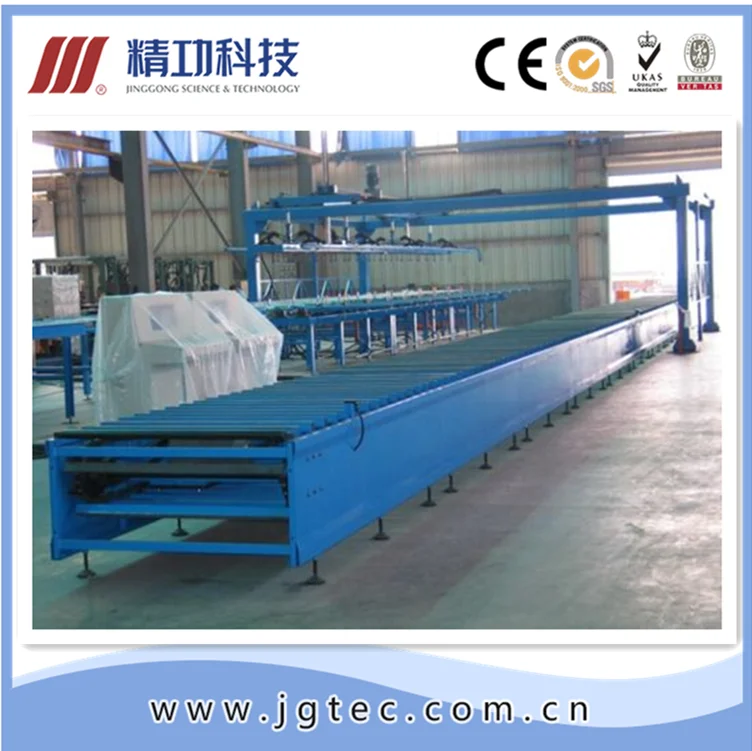

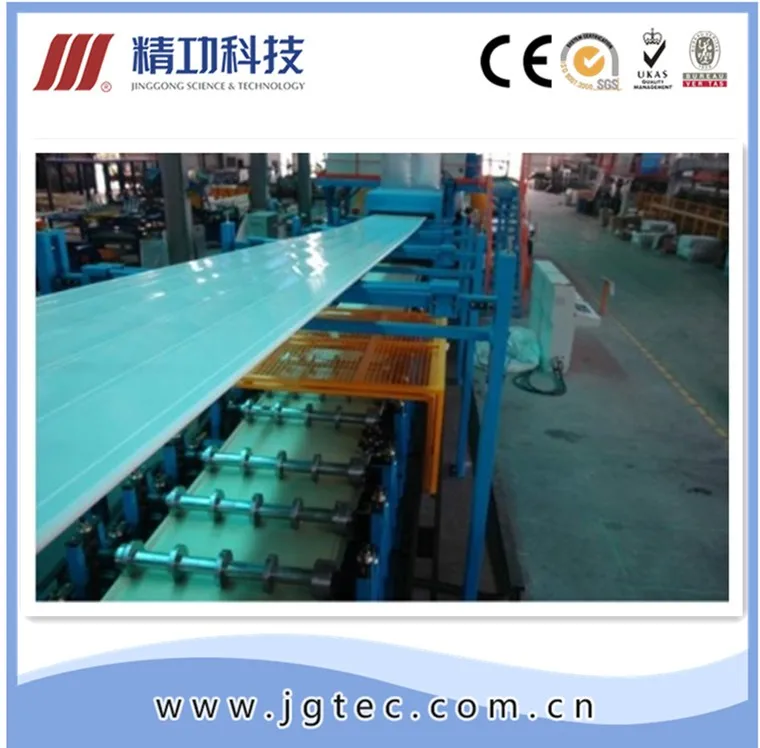

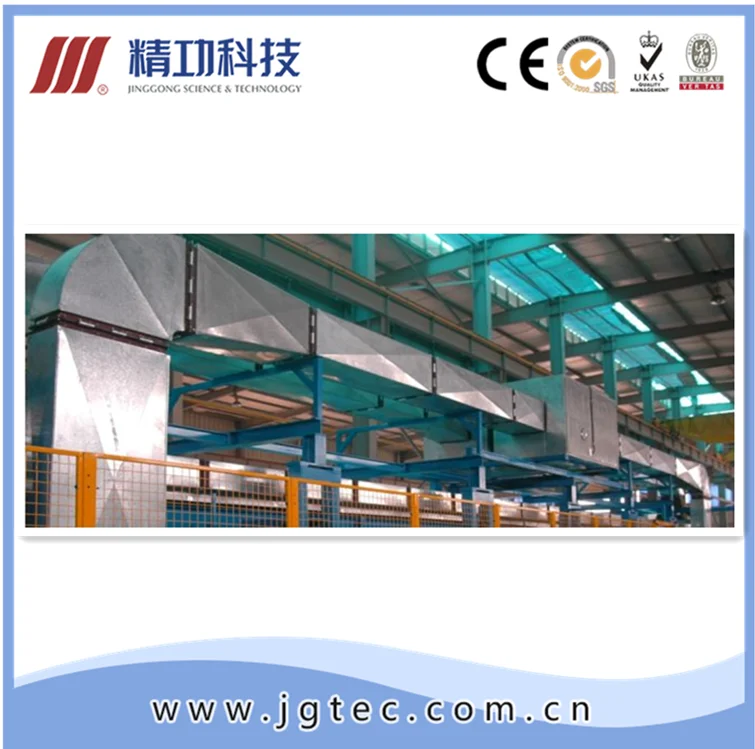

JF 100 type PU sandwich panel line is an automatic production line,which is consisting of decoiler,film coating,pre-cutting equipment,roll forming machine system,preheating,foaming,solidification,band saw cuttinig,cooling,stacking and packiang.The whole line integtates technologies of mechanics,chemistry,eletrical control,hydraulic pressure pneumatic and temperature control.



1.Beautiful and applicable,multiple functions,such as thermal isolation,sound isolation and flame retardence.

2.Using heated air recycle oven,strictly control the temperature of PU foaming and solidification in suitable range.

3.Using high pressure foaming system,precise measurement,high stabilith,little dust in locale,protect the worker's health.

4.Using 141B Or C5 as foaming agent.Insted of carbon chloral-fluoride,make the PU foaming treatment treatment become environmental production crafe.

5.Special double belt cojveyor,flat surface of sandwich panel,even thinckness,anti-patter n.

6.Operation system controlled by PLC computer,personal design and simple operation.


Plate type figure




Technical parameter


Item Parameter
Material Type Color steel sheet;galvanized sheet;Aluminum sheet
Thinckness(mm) 0.4-0.8
Width(Mpa) ≤1250
Suitable size of panel Length(mm) 2000-16000
Width(mm) 600-1200
Thickness((mm) 30-200(Not including height of corrugation)
Production speed(m/min) (Adjustable)3-8
Valid length of double belt conveyor(mm) 16000-36000
Work pressure on pouring foam(Bar) 150-200
Total power(kw) Abouot 300
Total size(Length×Width×Height) 130000×15000×6000














1.Does one machine can only produce one size?

Not exactly, it depends on the machine.


2.Do you have after sales support?

Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.


3.How to visit your company?

We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.


4.What can you do if the machine broken?

Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.


5.Can you be responsible for transport?

Yes, please tell us the destination port or address. we have rich experience in transport.


6.You are trade company or factory?

We are Manufacturer.


7.Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.


8.Do you have overseas engineers?

Yes, we not only provide overseas engineers, but also provide technical training.


9.Do you provide customized?

Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
