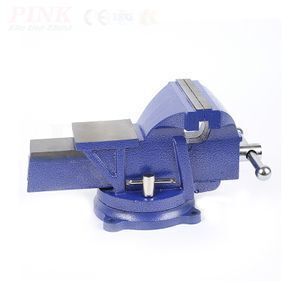

Hand Vise NEBHV-13

Product details
Jaw Surface Type:smooth,Serrated & Smooth;Clamp Force:600,900,1000,1200,1500,2000,2500kg;
Material:Cast Iron;Weight:5.5,7.5,10,17.5,24.5kg;
Feature:Durable;Packaging Detail:Carton Box packing;
Open length:75,100,125,150,200mm;Certificate:CE;
Product name:Bench Vise;Application:Clamping workpiece,Industrial;
Base Type:weighted,Stationary;Model:NEBHV-13;
Jaw Width:3",4",5",6",8",10";Supply Ability:15000 Piece/Pieces per Month;
Place of Origin:Zhejiang China;Payment Terms:L/C,D/P,T/T,Western Union;
Port:Shainghai;
Product Description

Bench Vise Product Features:

1.Jaw Width:3",4",5",6",8",10"

2.Open length:75,100,125,150,200mm

3.Clamp Force:600,900,1000,1200,1500,2000,2500kg

4.Weight:5.5,7.5,10,17.5,24.5kg

5.Apply: Workshop,Clamping workpiece

6.Certificate:CE



Bench Vise Details & Function:

1.Our Bench Vise Jaw Width:3",4",5",6",8",10", Open length:75,100,125,150,200mm, Weight:5.5,7.5,10,17.5,24.5kg; Clamp Force:600,900,1000,1200,1500,2000,2500kg.

2.A vise is a universal fixture used to hold a workpiece. The device is placed on the workbench to clamp the workpiece and is an indispensable tool in the bench shop.
3.The rotary caliper can be rotated to rotate the workpiece to the proper working position.
4.The vise is an indispensable tool for the fitter and the source of the fitter's name, as most of the work of the fitter is done on the vise, such as saws, rakes, hoes, and assembly and disassembly of the parts.
5.Installed on the bench, with the width of the jaws as the calibration specification. Common specifications range from 75mm to 300mm.

6.It is made by cast iron and heat-treated with plain surfaces, it could have long life under heavy working conditions.



ModelProduct NameJaw WidthN.W (kg)Open length(mm)Clamp Force(kg)Packing Size(cm)G.W/N.W (kg)PCS/CTNLoading
20GP(pcs)
NEABV-01Bench Vise3"(75mm)5.257540030*25*3122/21 44472
NEABV-02Bench Vise4"(100mm)5.57560030*25*3123/2244472
NEABV-03Bench Vise5"(125mm)7.510090038*34*1816/15 22234
NEABV-04Bench Vise6"(150mm)11.5125100041*36*2224/2321600
NEABV-05Bench Vise8"(200mm)18150120041*21*2219/1811372
NEABV-06Bench Vise10"(250mm)27200150047*28*2628/271759
NEABV-07Bench Vise3"(75mm)5.57560030.5*25*3123/22 44396
NEABV-08Bench Vise4"(100mm)7.510090031*31*1816/1523006
NEABV-09Bench Vise5"(125mm)10125100040*38*22.521/2021554
NEABV-10Bench Vise6"(150mm)17.5150120041*21*2218.5/17.511372
NEABV-11Bench Vise8"(200mm)24.5200150050*25*26.525.5/24.51800
NEABV-12Bench Vise3"(75mm)675100030*28*1613/1223868
NEABV-13Bench Vise4"(100mm)10.5100120035*36*2022/2122062
NEABV-14Bench Vise5"(125mm)16.5125150041*20*2217.5/16.511441
NEABV-15Bench Vise6"(150mm)22.5150200047*22*2623.5/22.51967
NEABV-16Bench Vise8"(200mm)41175-200250050*26*3042/411666







Company Information



Jiaxing Pink Electronic Technology CO., LTD. is an enterprise that specializes in electric tool, we export during the past 10 years.



We emphasize and concentrates on professional services to our clients. We believe that excellent quality of products, timely delivery of goods, and competitive prices are the keys to establish and maintain the long term business relationships with our customers in a mutual beneficial way.



Our company is about 120km far from Shanghai in the east and 90km far from Hangzhou in the west, it enjoys very convenient transportation. Sincerely welcome every customer to visit our factory.



Packaging & Shipping





FAQ





If you are interested in our Bench Vise, Casting Anvil, please don't hesitate to contact us.
