Waste Tire Recycling Rubber Powder Machine

This cutting system can cut tire into 3-5cm tire blocks for further process into rubber powder or rubber granule in the next step.

Waste Tire Recycling Rubber Powder Machine is suitable for different kinds of scrap tires, and we can provide you the best solution based on your different tires.

Put tiPut tire on the round platform, rotate the wheel to make the four claws catch inside of tire and fix steady, start the cutter machine, the platform rotates, handle the cutting knife control stick, the knife cut into tire, adjust the cutting depth until the tire sidewall cut off.

Reasonable design, stable performance, high quality, ease operation, long service life, low noise, no pollution,an ideal equipment for tire recycling.

There is a guiding rule in the middle of the two blades and the rubber strip width is up to the distance between the guiding rule and blade. The distance means the rubber strip width. The guiding rule can be adjusted by the left and right movement of the two screw rods.

When the blade is not sharp, sharpen the blades with angle grinder. When sharpening the blades, the grinding wheel shall not focus on one position for a long time. When changing the blades, remove the lower blade first and then remove the upper blade; when installing the blades, fix the upper blade first and then fix the lower blade.

1, Check the motor if the default phase happens or if the short circuit happens, and check if the change -over switch works normally;

2, Check the gearbox and big gears if they are short of oil;

3, The two blades are connected by two main shafts and each main shaft is supported and fixed by two sets ofbearings. Check the bearing if the lubricating oil is short.

The rubber block cutter is used to cut rubber strips into 3--5cm blocks for grinding into rubber powder or rubber granule in the next step.

Start the power, put tire strips into the feeder, and then strips will be cutted into 3-5cm rubber blocks.

Start the power, put tire bead into the rollers of the steel wire extruder and then start the button to make the tire bead enter the rollers. After separating the rubber and steel wire, start the button to make the tire bead get out of the rollers, and then take out the tire bead from the rollers, so you get a complete steel wire ring.

This steel wire extruder is mainly used to separate the rubber and steel wire from the tire bead of all kinds of tires and you can get a complete steel wire ring.

Easy operation and maintenance, high separation efficiency.

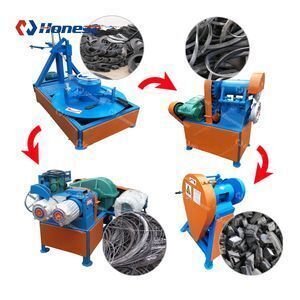

1. Tire circular cutter cuts tire bead from the whole tire;

2. Tire strip cutter cuts whole tires into strips except tire bead;

3. Tire block cutter cuts tire strips into 3-8 rubber blocks;

4. Steel wire extruder separates steel wire and rubber out from tire bead.

RUBBER GRANULE PRODUCTION LINE

RUBBER POWDER PRODUCTION LINE

Henan Honest Heavy Machinery Co.,Ltd is a professional company which is specialized in research and development, production and sales of renewable energy and organic solid waste environmental protection equipment.

A: It can process various kind tires, like bicycle tires, motorcycle tires, car tires, truck tires, OTR tires, etc.

A: We will provide you the wire connection drawing and technical support, normally you can finish by yourself; but if you really need our technician, we will send technician to your working site as required. We will provide you the operation manual after installation.

A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.

A: Yes, we will test every machine and production line before delivery and send you the working video. You also can come to us for inspection before delivery.
