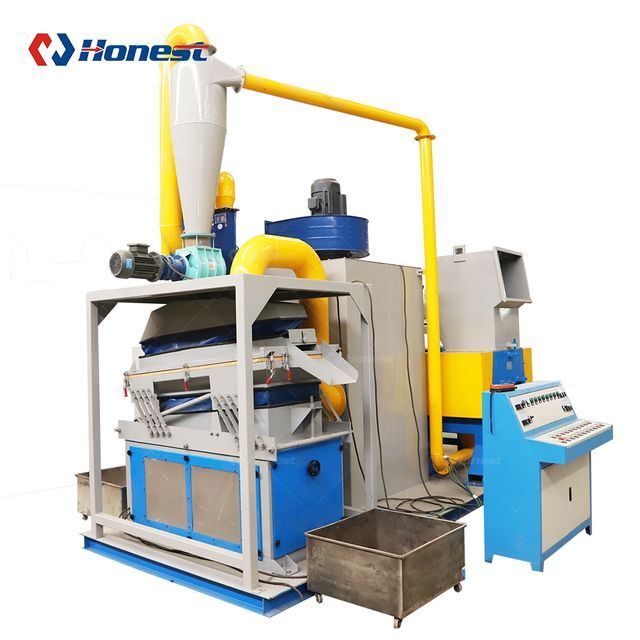

Commonly used cable granulator copper rice machine

Supplier: Henan Honest Heavy Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Honest Hao
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Preview:		place of origin; place of origin:	China
application:	scrap copper wire	Supply capacity:	500 boxes/month popular used cable granulator copper rice machine
type:	dry	capacity:	300-500 kg/h
Main selling point:	high productivity	Power (kW):	45
Health status:	new	Applicable industries:	scrap metal recycling
brand:	honest	Core components:	PLC, bearing, motor
payment terms:	L/C,Western Union,D/P,T/T,Cash	Mechanical test report:	if
Core Components Warranty:	1 year	Advantage:	Fully automatic
Finished goods:	plastic and copper	Packaging Details:	Packed in wooden box for commonly used cable wire granulator copper rice machine
usage:	Separation and recovery of copper and plastic from waste cables	Showroom location:	Indonesia, India, Thailand, Chile, United Arab Emirates, South Africa, Japan, Malaysia
Weight (kg):	3200	Name:	Commonly used cable granulator copper rice machine
Blade material:	SKD-11	Warranty:	1 year, 1 year
port:	Qingdao, Shanghai or as required	Video external inspection:	if
Certification:	CE certificate	Marketing Type:	normal product

Applications

The copper wire recycling machine has a dry structure and is mainly used for various waste copper wires to separate the copper wires into fine copper particles and PVC. This machine can recycle copper wires with a diameter of 0.3mm-35mm. Car wires or car wires, motorcycle wires, computer case wires, communication cables, etc.

Final product

Copper wire recycling machines process waste wires and cables into copper and plastic pellets. Copper and plastic are separated, and the separation efficiency can reach 99%. Copper pellets can be sold directly or further refined. With our copper electrolyzers, copper can be refined into cathode copper with a purity of over 99.99%. Plastic particles are generally PVC or rubber materials, and can also be sold directly.

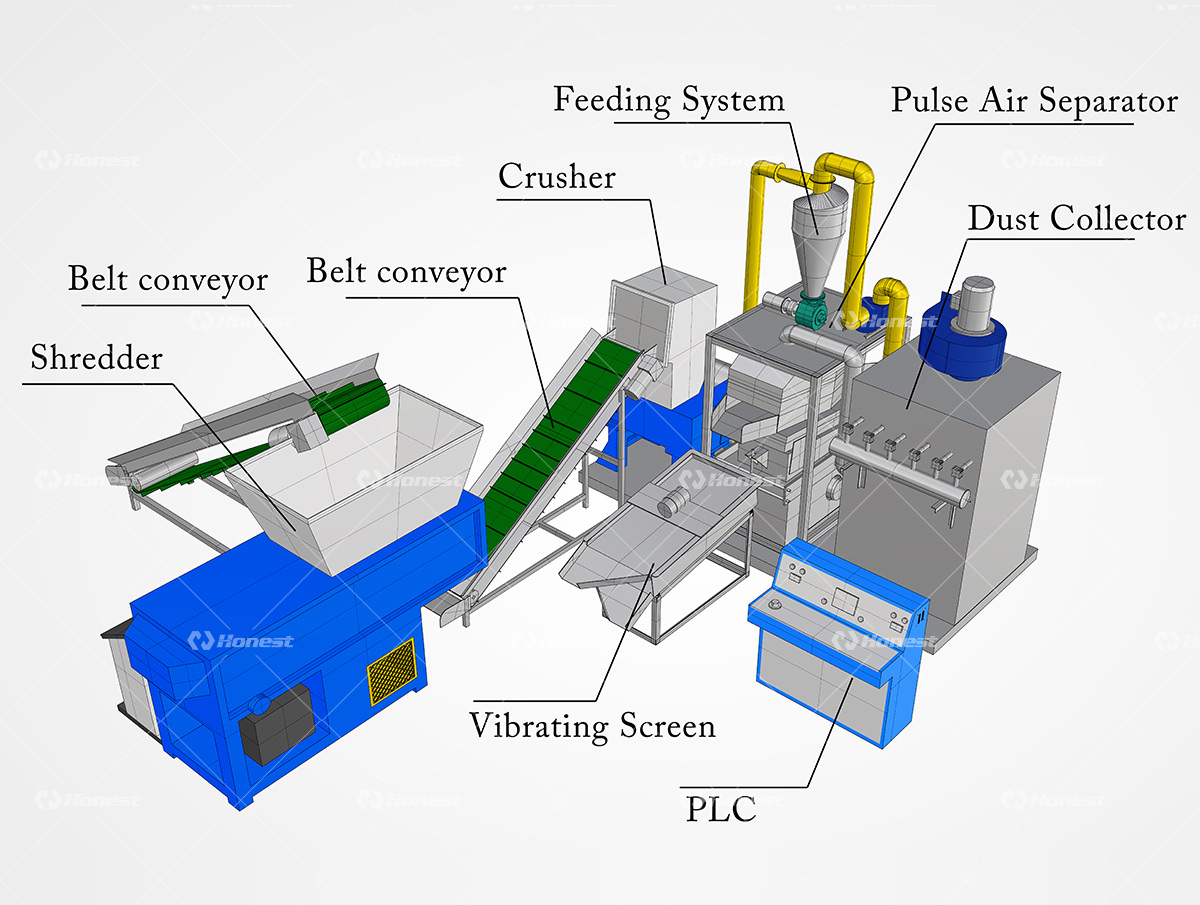

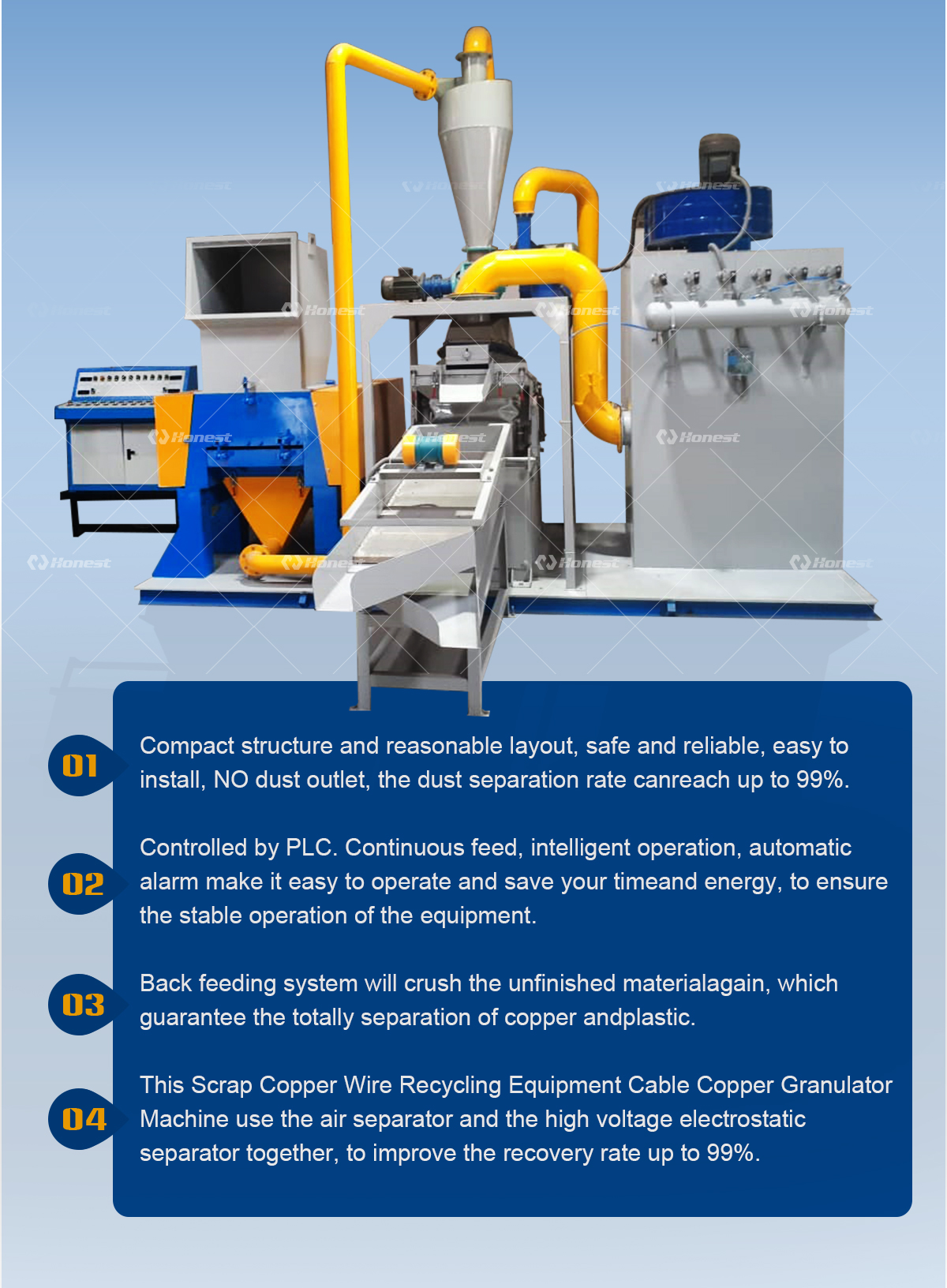

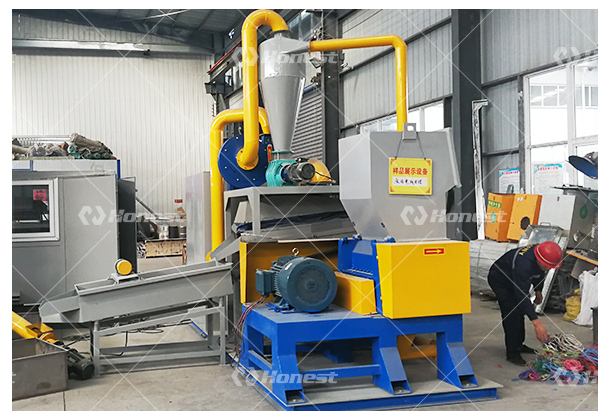

product structure

The copper wire recycling machine has a dry structure and is mainly used for various waste copper wires.Divided into tiny copper meters and PVC. This machine can recycle copper wires with a diameter of 0.3mm-35mm. Car wires or car wires, motorcycle wires, computer case wires, communication cables, etc.

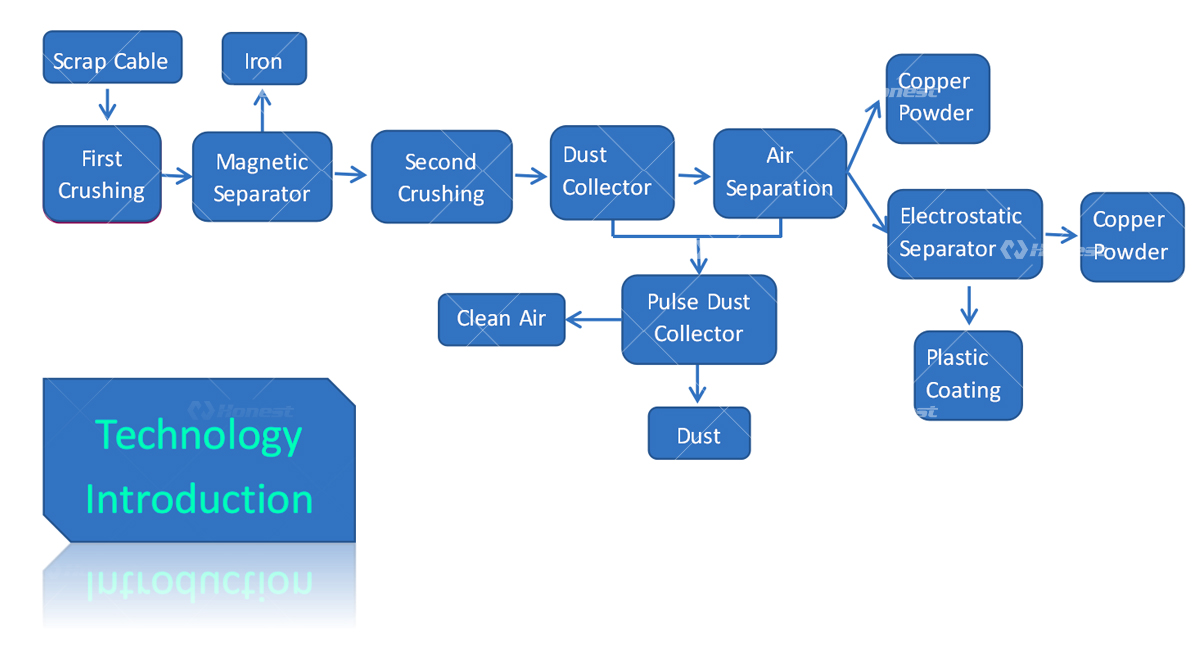

Workflow of copper wire recycling machine

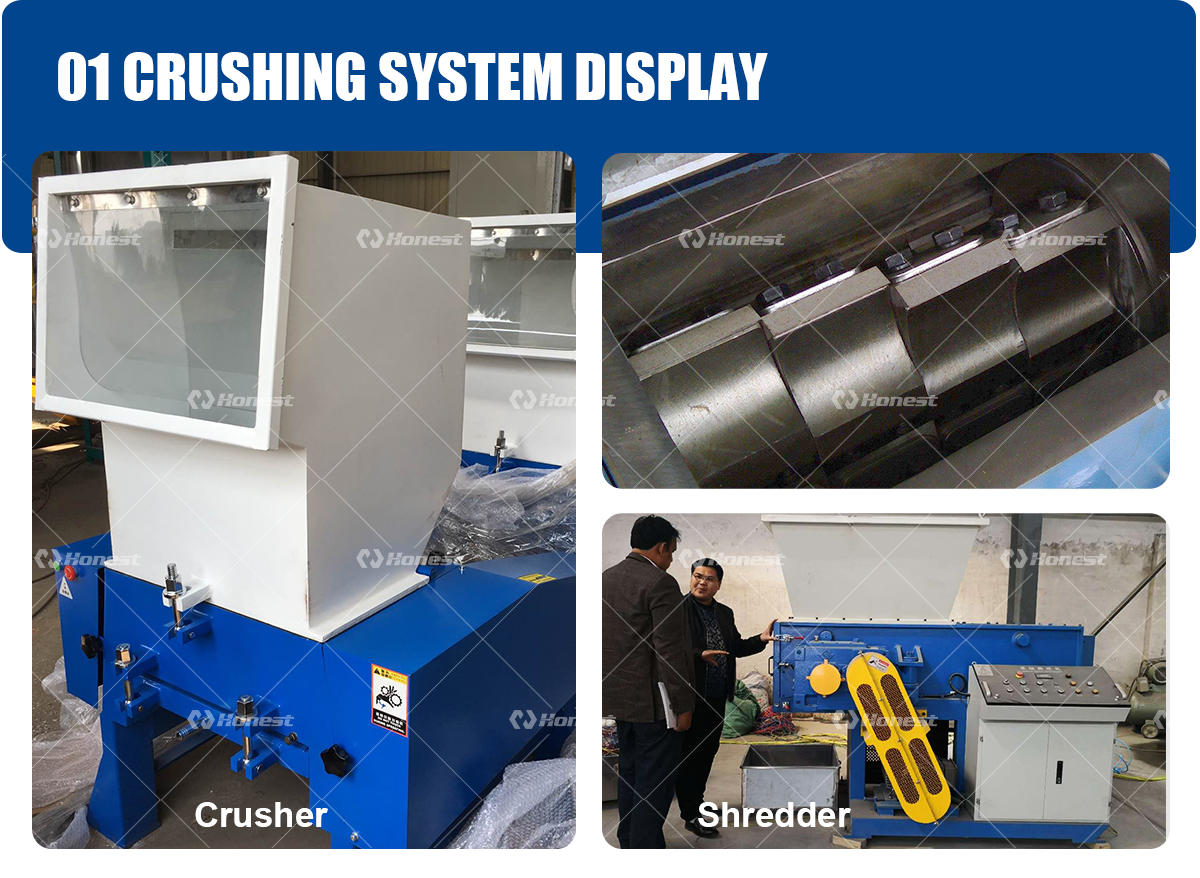

1. Put the waste cables into the shredder, first cut them into pellets. In this process, copper and plastic
separated but still mixed together.

2. Then the particles are sent to the air separator for separation, according to the gravity difference and by blowing air,
The copper and plastic are separated successfully and come out from different sides.

3. Finally we collect the separated pure copper and plastic.

Product Details

technical parameter

Model	capacity	weight	Dimensions (m)	strength
HN-TMJ100	100-200 kg/h	1850 kg	2.2x2x2.3	28kW
HN-TMJ300	200 300 kg/h	2500kg	3.2x2.1x2.3	39kW
HN-TMJ500	400-500 kg/h	3850 kg	6.2x5x3.3	68kW
HN-TMJ800	700-800 kg/h	5500kg	10.4x2.1x3.3	75kW
HN-TMJ1000	800-1000 kg/h	8200kg	12x4.1x4.5	95kW

Progress analysis

1. For small capacity:

The raw material of the cable wire can be directly put into the all-in-one machine, and after crushing, the copper and plastic are suspended on the screen by the air separation system. The copper is then separated from the plastic by a weighing method and the frictional force created by the mesh surface.

2. For larger capacity:

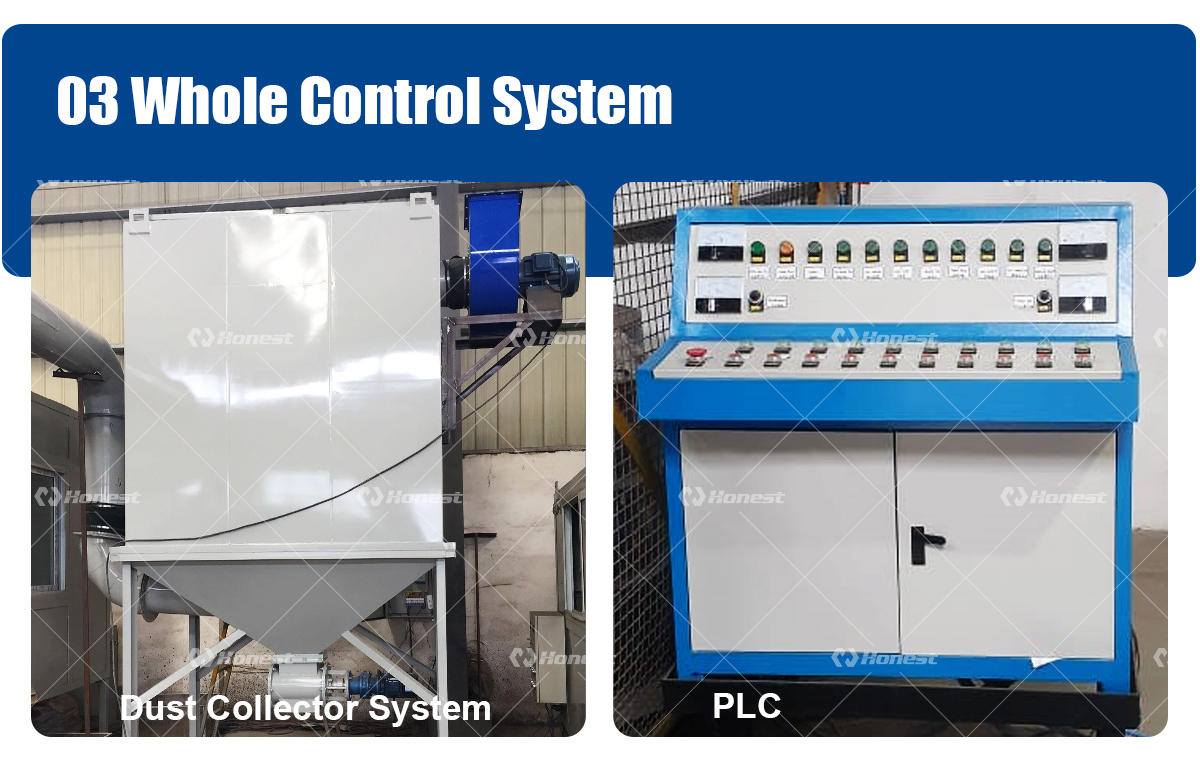

The raw material of the cable wire first enters the shredder, and then enters the crusher to get small pieces of wire, and then our pulse air separator suspends the copper and plastic on the sieve, and separates the copper and plastic by the method of weighing and the friction generated by the surface of the mesh force. To improve purity and capacity, the rest of the material goes to our high-voltage electrostatic separators. The model system includes the first crusher, pulsed air separator, dust and fibre collection system and high voltage electrostatic separator.
