• Supplier: WTL International Limited
  • Region: Guangdong, China
  • Contact: Ms. Pearl ZhuJob Title:Account Manager
  • Price: $0.04-$0.06 /Piece
  • Min. Order: 10.0 Pieces (MOQ)
86-1347600**
Click here to contact

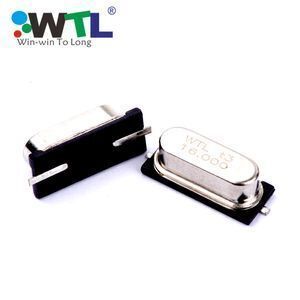

WTL Factory 6.1440MHz HC49 SMD Quartz Crystal Oscillator details
Frequency Tolerance:±30ppm;D/C:/;
Phase Noise Typ (dBc/Hz):/;Payment:T/T, Western Union, PayPal,Credit Card;
Tuning Voltage (VDC):/;Warranty:Global 180 Days Return;
Item:Crystal Oscillator 6.144MHz;Load Capacitance:20pF;
Base Resonator:Crystal;Supply Ability:1000000 Piece/Pieces per Month;
Shipment:DHL, UPS, TNT, Fedex, EMS,China Post;Port:Shenzhen;
Model Number:WTL1.00357ZX;Supplier Type:Original manufacturer;
Current - Supply (Max):/;Frequency Range:3.2 MHz-100 MHz;
Icc Max:/;Frequency Stability:±30PPM,±30ppm;
Frequency:6.144MHz;Power (dBm):/;
Pushing (MHz/V):/;Brand:Quartz Crystal Oscillator;
Frequency - Center:/;Nominal Frequency:6.144MHz;
Packaging:Tape & Reel;Payment Terms:L/C,T/T,Western Union,Paypal;
Dimensions:HC-49SMD;Application level:Industrial;
Brand Name:WTL;OEM/ODM:Welcome;
Packaging Detail:tape &reel , 1000/reel(WTL Factory Xtal Quartz HC49/US SMD Crystal Oscillator 6.144MHz 6.1440MHz);Operating Temperature:-20+70℃;
Package Type:SMD;Samples:Accept;
About Us:19 Years Experience;Certificate:ISO9001, ISO14001, SGS, RoHS;
Media Available:datasheet;Place of Origin:Guangdong China;
Voltage - Supply:/;

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com



FEATURE

1. Height 4.0mm or 3.0mm,compact unit for surface mount

2. Able to by means of a metal case and completely sealed high solution characteristics

3. Copes with high density mounting and is the optimum for mass productionss production



ELECTRICAL SPECIFIACTIONS

+

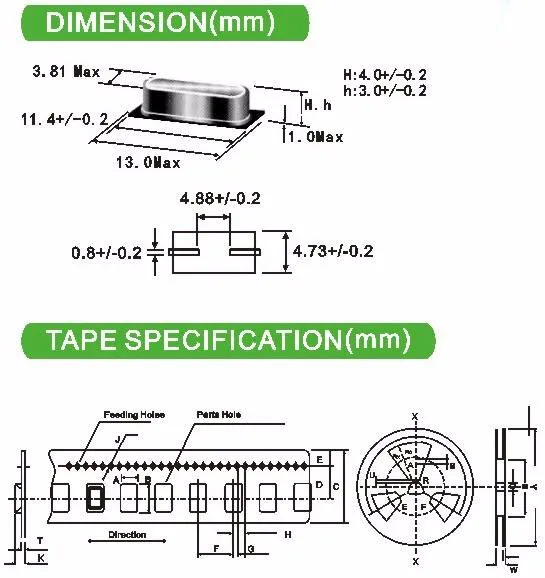

Resistance Welded HC-49/S Surface Mount Package

Item

Specifications

P/N

WTL1.00357ZX

Frequency

6.144MHz

Load Capacitance(CL)

20pF

Frequency Tolerance (at 25°C)

± 30ppm

Frequency Stability Over Operating
Temperature Range

± 30ppm

Operating Temperature Range

-20°C--+70°C

Storage Temperature Range

-40°C--+85 °C

Shunt Capacitance (C0)

7pF Max

Driver Level(Typical)

100µW Typical

Aging(at 25°C)

± 5ppm/year maximum



Process Flow chart

Company Profile



Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!





Certificate

Exhibition

Packaging&Shipping

FAQ

Frequency Tolerance:±30ppm;D/C:/;Phase Noise Typ (dBc/Hz):/;Payment:T/T, Western Union, PayPal,Credit Card;Tuning Voltage (VDC):/;Warranty:Global 180
above is detail introduction of WTL Factory 6.1440MHz HC49 SMD Quartz Crystal Oscillator, include price, model, picture and supplier of WTL Factory 6.1440MHz HC49 SMD Quartz Crystal Oscillator.
