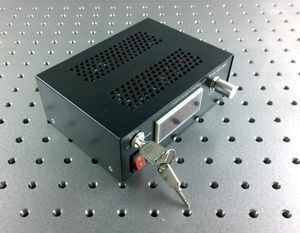

AC input laser driver or controller, PCB details
Delivery Detail:<1week;Model Number:ADR-1805;
Packaging Detail:anti static electricity package;Certification:CCC,ce;
After-sales Service Provided:No overseas service provided;Application:Other;
Brand Name:SFOLT;CNC or Not:yes;
Place of Origin:Shanghai China;Payment Terms:T/T;
Supply Ability:1000 Set/Sets per Month for AC input laser driver or controller PCB;

Mode

ADR-1805

Function

With interlock, DVM, Power Adjustor, Fan, etc.

Max LD operating current

50~3500mA

Max LD operating current Limit

3500mA

Max LD Drive Voltage

3.0V

External Modulation

TTL/Analog Modulation

Max. TEC Drive Current

2A

Max. TEC Drive Voltage

8V

Short Term temperature stability

<0.02 ℃

Long Term temperature stabilit

<0.1 ℃

Temperature sensor

10Kohm NTC Thermistor

Operating temperature

0~40℃

Operating voltage

100-240VAC,50/60Hz





Delivery Detail:<1week;Model Number:ADR-1805;Packaging Detail:anti static electricity package;Certification:CCC,ce;After-sales Service Provided:No ove
above is detail introduction of AC input laser driver or controller, PCB, include price, model, picture and supplier of AC input laser driver or controller, PCB.
