660nm 100mW red line laser module, made in Shanghai, China, low cost

Click here to contact

Product details

Certification:	CCC,ce,ISO;	Application:	Other,Other;
Place of Origin:	Shanghai China;	Supply Ability:	30 Set/Sets per Month for line laser;
Warranty:	1 YEAR;	Packaging Detail:	anti-static electricity package;
CNC or Not:	no;	Port:	shanghai, China;
Laser Type:	DIODE;	Payment Terms:	T/T;
Brand Name:	SFOLT;	After-sales Service Provided:	Online support,No overseas service provided;

DL-660-100-L
Optical Parameters^[1]
Parameters		Symbol	Typical Value	Unit
Central Wavelength		λc	660	nm
Wavelength Tolerance			+/-5	nm
Output power		P	100	mW
Power stability		Ps	<5%^[2]	%
Spatial mode			TEM₀₀
Fan Angle			20 ,30, 45, 60, 75, 90, 120	deg
Beam uniformity			+/-30	%
Expected operating lifetime		MTBF	10000	hrs
Warm up time		Tw	<5	min
Noise(RMS,10Hz-100MHz)		N	<1	%
Warranty time			1^[3]	year
Environmental Parameters^[4]
Operating temperature		Top	15~35	℃
Storage temperature		Tst	-40~85	℃
Note: [1]: Test data under 25℃. [2]: High power stability value is also available. [3]: 2-year warranty time is also available. [4]: case temperature.
Part Number
Red line laser
DL-660-AAA-L-BB
AAA	Output power: 30mW,50mW,100mW etc.
L	Line laser
BB	Package type
	F: coaxial package type, size: phi25*100mm, 3-5VDC power supply included
	00: to be customized
Package and legend

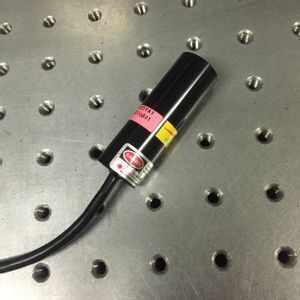

F: coaxial package type, size: phi25*100mm, 3-5VDC power supply included
