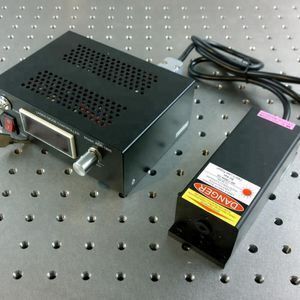

405nm free space violet blue diode laser module

Click here to contact

Product details

Delivery Detail:	1-2weeks(nominal, urgent service pls contact with sales;	Packaging Detail:	anti-static electricity package;
Supply Ability:	30 Set/Sets per Month for free space violet blue diode laser module;	After-sales Service Provided:	No overseas service provided;
Payment Terms:	T/T;	Place of Origin:	Shanghai China;
Application:	Other;	CNC or Not:	Yes;
Port:	shanghai, China;	Brand Name:	SFOLT;
Laser Type:	DIODE;	Certification:	CCC, ce;
Model Number:	DL-405-400;

DL-405-400
Optical Parameters^[1]
Parameters		Symbol	Typical Value		Unit
Central Wavelength		λc	405		nm
Wavelength Tolerance			+/-5		nm
Output power		P	200	400	mW
Power stability		Ps	<3%^[2]	<3%^[2]	%
Transverse mode			TEM₀₀	-
Beam diameter(1/e²)		D_⊥	≤2mm	≤3.5mm	mm
		D_//	≤1mm	≤1.5mm	mm
Beam divergence(1/e², full angle)		D_⊥	≤0.5 mrad	≤0.5 mrad	mrad
		D_//	≤1mrad	≤1mrad	mrad
Expected operating lifetime		MTBF	10000		hrs
Warranty time			1^[3]		year
Environmental Parameters^[4]
Operating temperature		Top	0~40		℃
Storage temperature		Tst	-40~85		℃
Note: [1]: Test data under 25℃. [2]: High power stability value available upon request. [3]: 2-year warranty time available upon request* .* [4]: case temperature.
Part Number
Free space laser
DL-405-AAA-BB
AAA	Output power: 30mW,50mW,100mW etc.
BB	Package type
	T: laser head and driver separated, head size: 3535102mm, temperature stabilized
	T2: laser head and driver separated, head size: 4942140mm, temperature stabilized
	T7: 5 or 12 VDC driver included, head size: 4942140mm, temperature stabilized
	00: to be customized
Package and legend

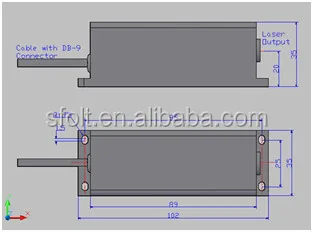

T-serial package: laser head size: 3535102mm, laser driver separated, temperature stabilized

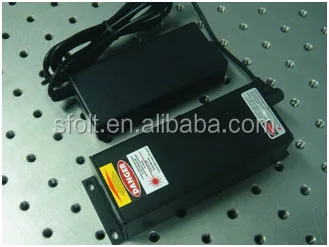

T2-serial package: laser head size: 4942140mm, driver separated, temperature stabilized

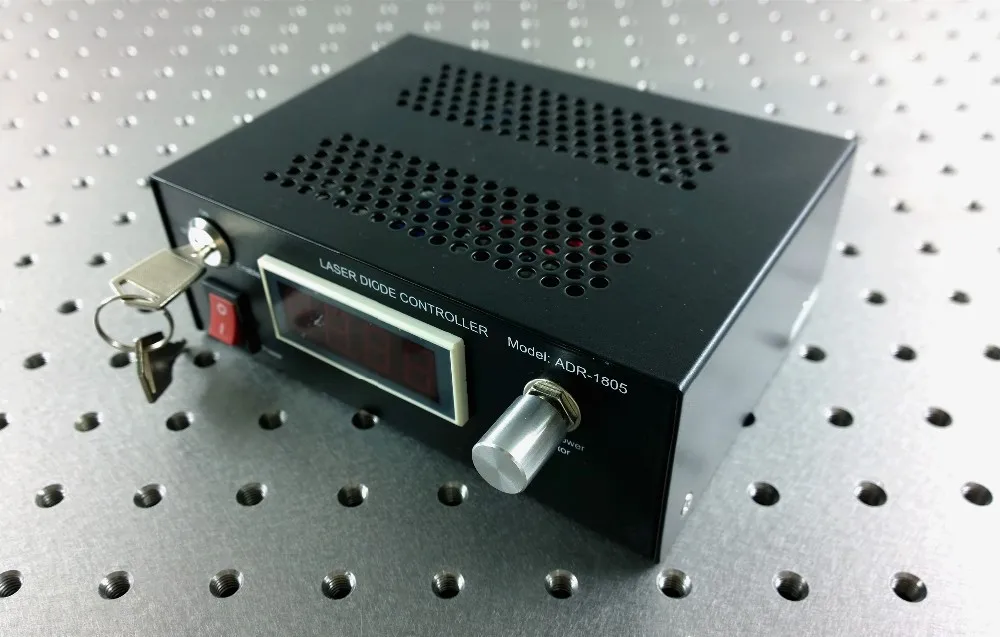

ADR-1805 laser driver, 90-240VAC power supply, with power adjustor and digital display

T7-serial package: laser head size: 4942140mm, driver separated, temperature stabilized
