Manufacturer WTL Customizable 32.768 khz cristal ocilador for Watch

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.09 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Base Resonator:	/;	Original:	Yes;
Frequency Stability:	+/-20ppm;	Frequency - Center:	32.768KHz;
Tuning Voltage (VDC):	/;	Frequency:	32.768KHz;
D/C:	/;	Model Number:	WTL2.00050ZX;
Operating Temperature:	40+85'C;	Pushing (MHz/V):	/;
Power (dBm):	/;	Certificate:	ISO9001, ISO14001,RoHS;
Frequency Tolerance:	+/-20ppm;	Nominal Frequency:	32.768KHz;
Payment:	T/T, Western Union, PayPal,Credit Card;	Package Type:	Surface Mount,SMD;
Single package size:	1X1X1 cm;	Application level:	Industrial;
Selling Units:	Single item;	Package:	Tape and Reel;
Single gross weight:	0.001 KG;	Packaging Detail:	Tape and Reel,3000pcs/Reel(6.9*1.4mm 32.768KHz 20ppm Watch Crystal 32.768 khz Crystal Oscillator);
Shipment:	DHL, UPS, TNT, Fedex, EMS,China Post;	Frequency Range:	32.768KHz;
OEM:	Support;	Icc Max:	/;
About Us:	20 Years Experience;	Warranty:	Global 180 Days Return;
Load Capacitance:	12.5pF;	Phase Noise Typ (dBc/Hz):	/;
Voltage - Supply:	/;	Description:	tuning fork crystal;
Brand Name:	WTL;	Current - Supply (Max):	/;

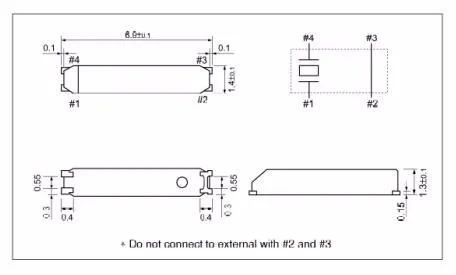

Dimensions:	6.9*1.4/4/SMD;	Supplier Type:	Original manufacturer;
Place of Origin:	Guangdong China;	Samples:	Accept;
Cross Reference:	ABS13,9HT7,SMQ32SN;

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

FEATURE

1. Small size

2. Tape & Reel

3. Reflow available

ELECTRICAL SPECIFICATIONS

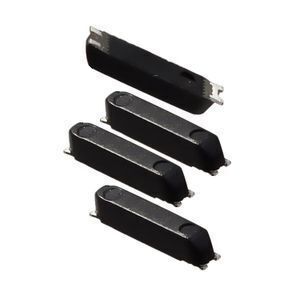

Tuning Fork Crystal (6.9X1.4mm SMD Package)
Item	Specifications
P/N	WTL2.00050ZX
Frequency	32.768KHz
Load Capacitance(CL)	12.5pF
Frequency Tolerance (at 25°C)	±20ppm
Operating Temperature Range	-40 °C to + 85°C
Storage Temperature Range	-55 °C to + 125 °C
Shunt Capacitance (C0)	1.3pF Typ
Dynamic Capacitance(C1)	2.4fF Typ
Driver Level(Typical)	1µW Max
Aging @25°C 1^st year (Max)	± 3ppm/year
