Mechanical Digital Fuel Flow Meter for Dispenser

Product details
Model Number:FM-120;Brand Name:jiasheng;
Material:Plastic;Payment Terms:L/C,T/T,Western Union;
Name:Mechanical Digital Fuel Flow Meter for Dispenser;Certificate:ISO9001;
Product name:Mechanical Digital Fuel Flow Meter for Dispenser;Supply Ability:10000 Piece/Pieces per Month;
Place of Origin:Jiangsu China;Delivery Detail:within 3-15 days after receive the payment;
Color:black;Usage:Gasoline Filling;
Port:shanghai/lianyungang/qiangdao;Packaging Detail:1:standard export carton or according to customer's requirement 2: delivery time : 15-35 days;
Product Detail
  • Introduction

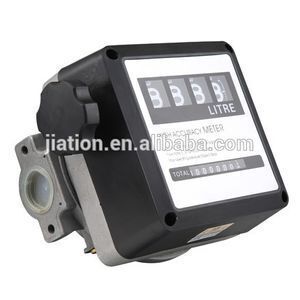

M-FM-120 flowmeter is to measure the exact quantity of the dispensed fuel. They are designed for noncommercial use only. These flow meters are reliable, easy to install and simple to calibrate on the workplace. Aluminum metering chamber, 1' thread connection, mechanical readout device with rotating wheels. 4-digital subtotals can be set to zero, while 8 digitals total readouts can not.



  • Features

a. can connect with pumps for metering transfer

b. option for the unit on Liter and Gallon

c. no electricity need, usable on farm, mine and other place without electricity

d. 4 digits subtotals, 8 digits totals



  • Detailed Pictures
    • Technical Specifications
      Model Number  CDI-M18
      Inlet Size  BSP/NPT 1'
      Flowrate  0-120 lpm
      Application Media   Diesel, Gasoline, Kerosene
      Material  Aluminum
      Accuracy  ±1%
      Max. Working Pressure  3 Mpa
      Unit Count  4 digits
      Total Count  8 digits
      Package  6 pcs/carton
      N.W./G.W.  11.5 kgs/13.5 kgs
      Dimension  65x34x40 cm



Main Product



Process and Fair



FAQ

OEM/ODM will be welcomed, we can design and manufacture the models as per the customers' requirements.

1.MOQ

 For the goods in stock,small order is acceptable.

2.Price

Pls contact me without hestitation if you want to know the latest price.

3.Sample

Free for Existing Samples,  the sampling time is one wokable day  . Customer paid the express fee.

 The sample fee will be refund after you purchase first order.

4.Quality

The quality of glass products will be the high level, the better price.

5.Reply

If you are interested in our product ,pls inquiry to me,I'll give you reply without delay.
