Stainless steel viscosity Zahn cup

Supplier: Shantou Wingtai Packing Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Sophia Lee
Price: $70.00 / 1 - 4 pieces
$66.50 / >=5 pieces
Min. Order: 1 piece

Click here to contact

Product details

type:	Charn Cup	Warranty:	-
port:	Shenzhen/Shantou	brand:	Charn Cup
size:	3904837mm	net weight:	0.2 kg (0.4 lb)
aperture:	4mm	model:	1#~7#
Applicable industries:	Printing industry, ink glue and paint coating industry, etc.	Package:	Eco-friendly paper packaging
Material:	Stainless steel	Measuring range:	20~3000 centistokes
place of origin; place of origin:	Japan	usage:	Used to measure the viscosity of liquids.
payment terms:	Western Union, T/T, MoneyGram	Packaging Details:	carton.
Custom Support:	Do not	Cup size:	44ml
Supply capacity:	8000 pieces per month

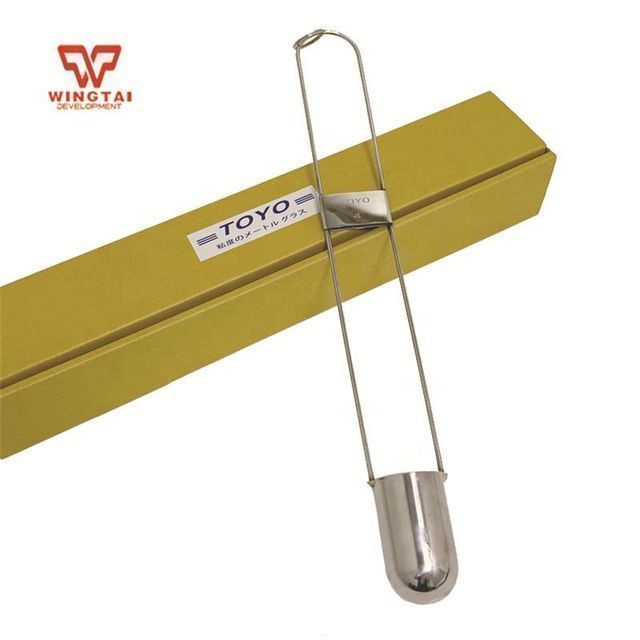

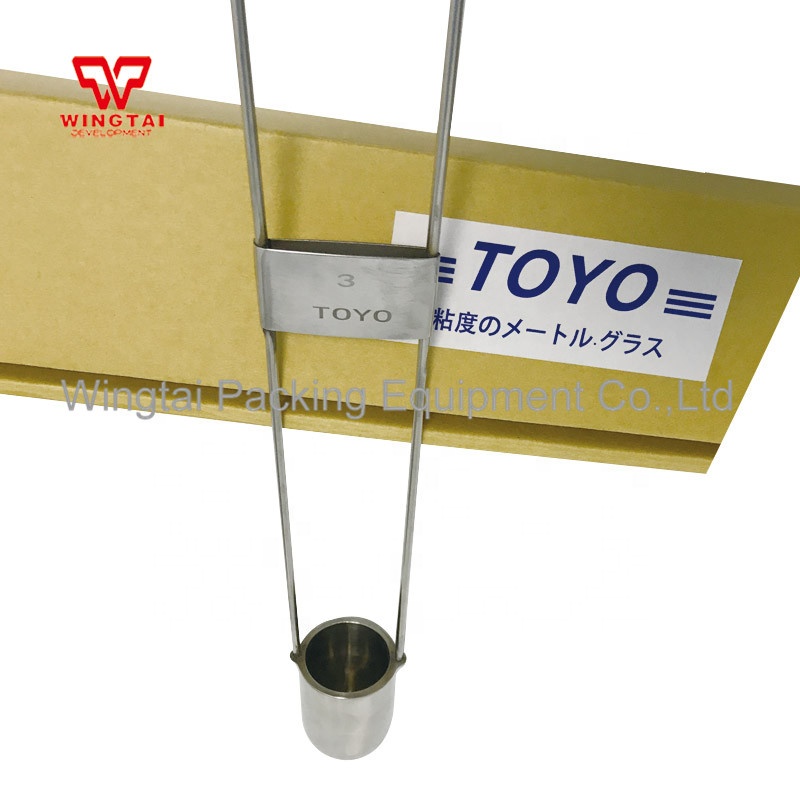

Stainless Steel Viscosity Charn Cup

Technical data

technical parameter:
Cup size: 44ml
Cup material: stainless steel
Net Weight: 0.2 kg (0.4 lb)
Size: 390*48*37mm

Model: Zahn 2#, 3#, 4#
Origin: Japan
Packaging: Eco-friendly paper packaging

Product Description

Operating principle:

Mainly used for accurate measurement of ink viscosity, accurate color. Japanese technology Seiko production, suitable for workshop, factory or laboratory, for quick inspection and adjustment of various fluids of different viscosities.

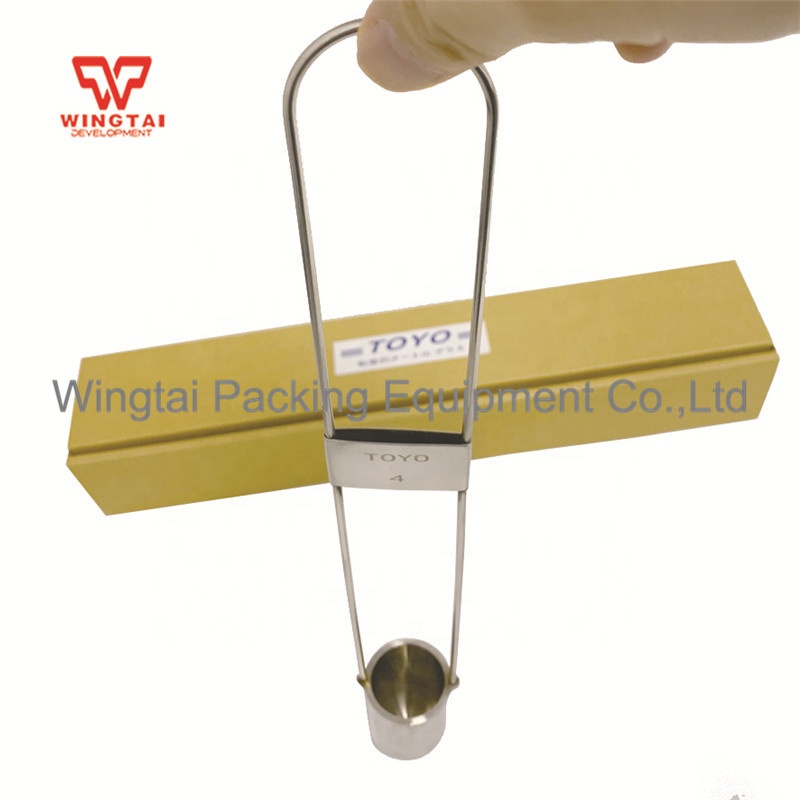

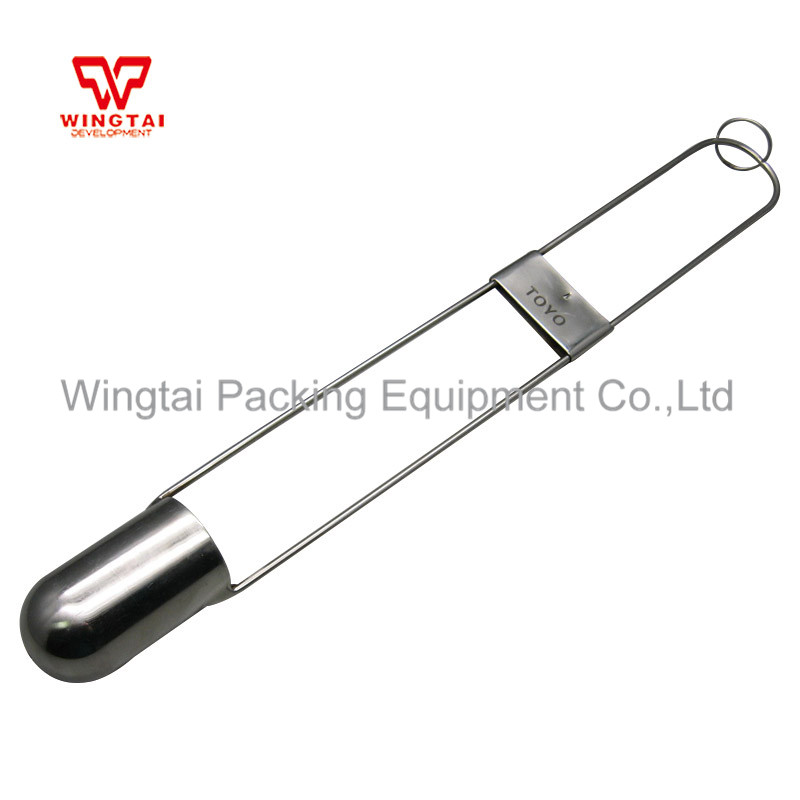

Each dip cup has a 12-inch long loop handle that you can hold in your hand to place the dip cup into the container.

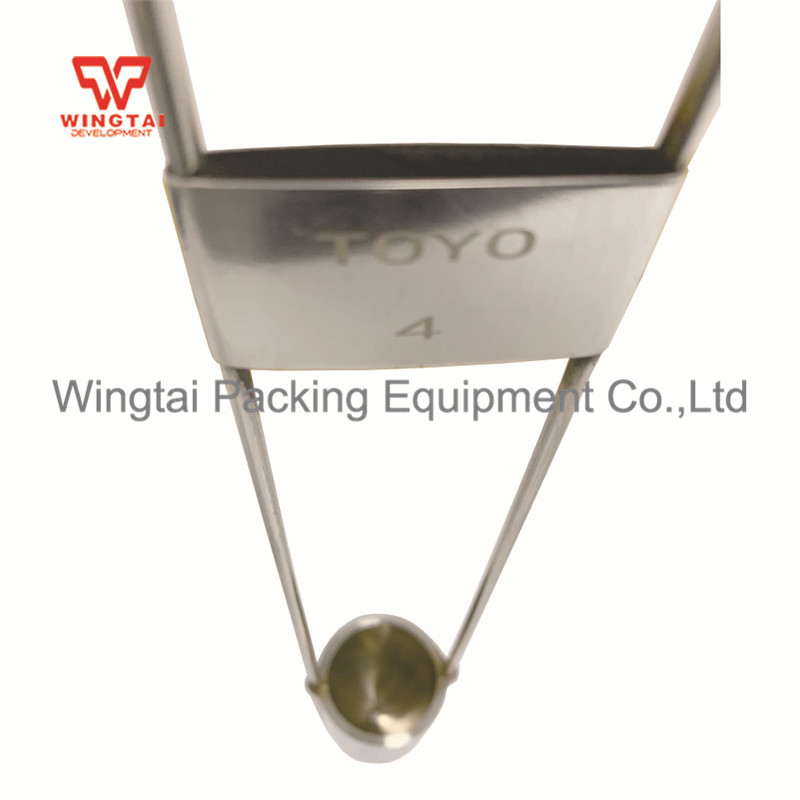

There is an annular circle in the center of the handle to keep the cup in a vertical position during use.

Specific cup leaching results for "Zahn Cup" at specified temperature.

influences:Accurate measurement of ink viscosity, accurate color matching.

feature:Stainless steel cup, precision drilled nozzle, exquisite workmanship, accurate measurement, durable (with stopwatch)

product information

Day Cup Aperture Parameters:

Before use, you need to choose a suitable cup, let the flow rate be 10~90 seconds, and you need a stopwatch with high precision.

Model	aperture	Measuring range (centistokes)	Measurement temperature	application
no 1	1mm	~20	indoor temperature	for very dilute liquids
number 2	2mm	~70		for very dilute liquids
number 3	3mm	20~250		Suitable for: thin oil, mixed paint, varnish
No 4	4mm	80~700		For medium viscosity, thick fluids and mixtures
Number 5	5mm	200~1000		For thick fluids and mixtures
number 6	6mm	400~2000		For special viscous fluids and mixtures.
Number 7	7mm	900~3000		For special viscous fluids and mixtures.

Note: A precision stopwatch is required for testing.

U.K.ZaneCup technical parameters:

Model	Aperture(mm)	Measuring range (cSt)	application	K	C
1	2 (0.08")	up to 60	for very dilute liquids	1.1	29
2	2.74 (0.11 inches)	20~250	Thin oil, mixed paint, varnish	3.5	14
3	3.76 (0.15 inches)	100~800	Medium viscosity thick fluids and mixtures	11.7	7.5
4	4.26 (0.17 inches)	200~1200	Thick liquids and mixtures	14.8	5
5	5.28 (0.21 inches)	400~1800	For special viscous fluids and mixtures.	twenty three	0

application:

Suitable for any location such as workshop, factory or laboratory, to quickly test and adjust the viscosity of different fluids. This viscosity cup is used to test the viscosity of Newtonian or Newtonian-like fluids.

notes:

1. Before use, choose a suitable cup, let the flow rate be 10~90 seconds, and also need a stopwatch with high precision.

2. See the reference aperture parameter table to order customer orders.
