Ford Cups
- 50.00 set
| Packaging Details: | carton | payment terms: | Western Union, T/T, MoneyGram, PayPal |
| port: | Shanghai | Supply capacity: | 1000 sets per year |
| place of origin; place of origin: | China Shanghai | brand: | Jiu Ran |
| model: | JR 125 |

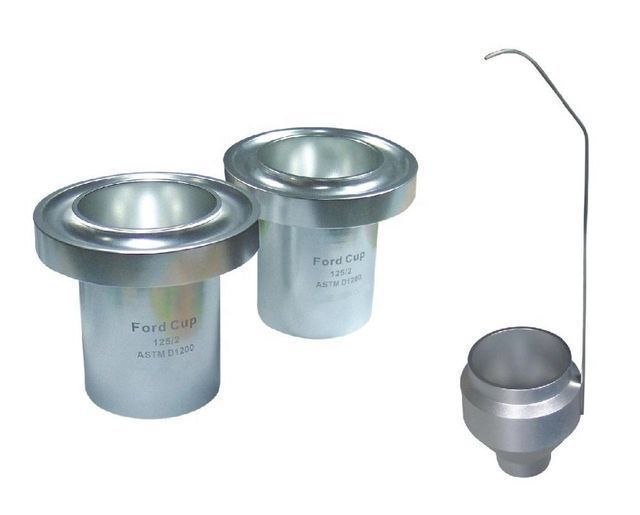

ford cup
ford cupThe products produced by our company comply with international standards ASTM D1200, D333, D365. For easily measuring the viscosity of paints, inks, varnishes and other liquids. All Everford cups are machined anodized aluminum with removable stainless steel orifices and are guaranteed to be within 2% over the entire recommended range of use.
The main technical parameters:
the inside diameter of:50±0.05mm
outer diameter:86±0.1mm
Inner hole length:10±0.1mm
production tolerance:±2%
Details for each Ford Cup
|
Details/Ford Cup |
ford cup |
ford cup (3#) |
ford cup (4#) |
ford cup (5#) |
Portable Ford Cup (4#) |
|
internal vertical height |
43±0.1mm |
43±0.1mm |
43±0.1mm |
43±0.1mm |
43±0.1mm |
|
Bore(mm) |
2.53mm |
3.4mm |
4.1mm |
5.2mm |
4.1mm |
|
Outer hole(mm) |
5.0±0.5mm |
5.5±0.5mm |
6.0±0.5mm |
7.6±0.5mm |
6.0±0.5mm |
|
centistokesscope |
25-120 |
49-220 |
70-370 |
215-1413 |
70-370 |
|
outflow time(Second)±0.2 |
40-100 |
25-105 |
20-105 |
20-105 |
20-105 |
|
Ordering Information |
JR 125/2 |
JR 125/3 |
JR 125/4 |
JR 125/5 |
JR 125/4P |
