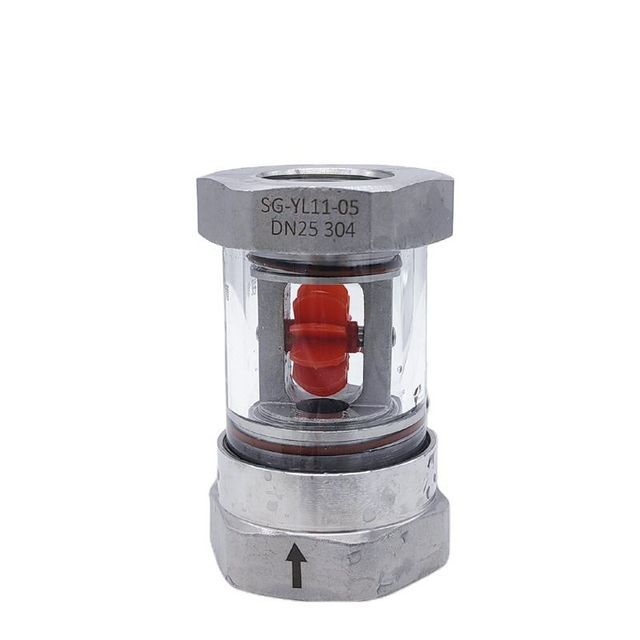

1/2 inch 360 degree tubular impeller flow indicator flow sight glass
- 30.00 5 - 49 pieces
- 29.00 50 - 99 pieces
- 28.00 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | CH05-YL11 | size: | 1/2 inch |
| standard: | BSPP/BSPT/NPT (thread standard) | temperature: | 0~120 degrees Celsius/high temperature customization |
| Moderate: | Acid liquid/water/oil/etc. | application: | Industry/Chemical/Papermaking/Petroleum/etc. |
| connect: | Threaded connection | Packaging details: | 1. Carton packaging with bubble box 2. Plywood packaging with carton or other protection |
| Payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Origin: | Jiangsu, China |
| port: | Tianjin | Brand name: | Chen Hao |
| Customization support: | OEM, ODM, OBM, high temperature customization, size and length customization, high pressure customization | Warranty: | 1 year |
| Supply capacity: | 3000 pieces per month | Package preview: | |
| Product name: | liquid flow indicator |
Product Description
model | CH05-YL11 |
Product name | 1" High Pressure Sight Glass Liquid Flow Indicator with Center Impeller with Threaded End |
Material | Carbon steel, 304, 316, 316L |
pressure | 0.6/1.0/1.6/2.5/4.0/5.0Mpa |
Connection standards | NPT, BSPP, BSPT thread (thread standard) |
medium | Water, oil, gas and chemical acids, salty liquids or gases |
size | DN8-DN50(1/4-2 inches) |
liquid flow indicator
Liquid flow indicator is an essential accessory for observing the flow of media in pipelines. It is used in industrial production equipment such as petroleum, chemical industry, chemical fiber, medicine, food, etc. It can observe the flow reaction of liquid, gas, steam and other media at any time. It is an indispensable accessory to ensure normal production.
Casting process:Silicon melt casting
Shell material: 304 stainless steel
Impeller material: PTFE
Sealing ring material: EPDM/PTFE
Pressure: 0-1.6Mpa
Temperature: 0-80℃
Thread type: BSPT
Product configuration
CH01-YL11
CH01-YL21
CH01-YL26
CH02-YL11
CH03-YL11
CH04-YL11
