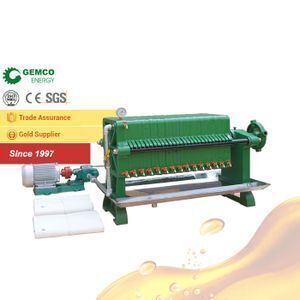

Factory price automatic sunflower coconut small oil filter press machine

Supplier: Anyang Gemco Energy Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Crystal Qin
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Field installation, commissioning and training,Engineers available to service machinery overseas;	Weight:	155/470kg;
Certification:	CE;	Supply Ability:	200 Set/Sets per Month;
Name:	oil filter press;	Place of Origin:	Henan China;
Dimension(LWH):	780530670/1300750700mm;	Port:	Qingdao, Shanghai;
Showroom Location:	Egypt,Canada,Turkey,United Kingdom,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Japan,Malaysia,Australia;	After Warranty Service:	Online support,Field maintenance and repair service;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory;	Warranty:	1 Year;
Power:	0.75/1.1kw;	Advantage:	Simple maintenance and easy operation;
Voltage:	380V;	Packaging Detail:	Standard Export plywood case;
Application:	filter bleaching oil in the refining workshop;	Automatic Grade:	Semi-automatic;
Local Service Location:	Egypt,Canada,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,UAE,Colombia,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Nigeria,Tajikistan;	Spare parts:	Sufficient and cheap spare parts available;
Usage:	refining plant;	Material:	crude oil and refined oil;
Filter press type:	small oil filter press machine;	Color:	Customers' Required;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Brand Name:	GEMCO;
Function:	Filter crude oil for cooking purpose;	Condition:	New;

Factory price automatic sunflower coconut small oil filter press machine

Model	No.of filter plates	Dimension of filter plate	Working pressure	Productivity	Power	Dimension	Weight
6LB-250	13pcs	250*250mm	0.3-0.4MPa	100kg/h	0.75kw	780530670mm	155kg
6LB-350	25pcs	350*350mm	0.3-0.4MPa	200kg/h	1.1kw	1300750700mm	470kg

Detailed Description:

Model 6LB-350, 6LB-250 oil filter press are mainly used for filtering the crude oil pressed out by screw type oil press.Filter press can be matched with oil press Model 6YL-68, 80, 95, 100, 120,130,160, 165 for combined operation, and they have own matched electric motor. The serial oil filter presses of frame typed oil filtering machine are ideal equipments for edible oil plant and individual oil processing house.

Oil filter press always be used as a oil purifier in the oil plants for edible oil or biodiesel. This model filter is suitable for filter crude oil and refined oil, and it is also can be used to filter bleaching oil in the refining workshop.

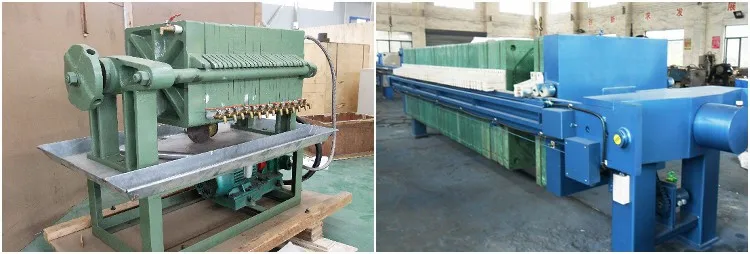

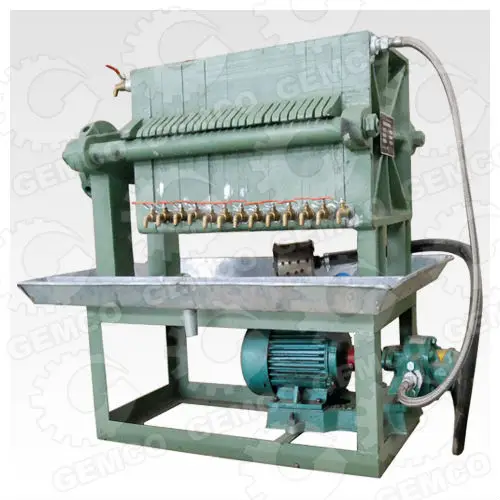

small oil filter press machine

Main Structure

The cooking moringa seed oil filter machine is a basic filtering unit that consisits by filter frame and filter plate. The filter is formed by four parts:mainframe, filtering parts, press and control. The filter part is constituted by several filter boards and frames which are ranked in the main beam in an order—the filter is between filter board and fram.

Working Principle

When material come into filter room from hole in push plate, the solid bigger than the hole of filter intermediary is hold in the filter room and become solid lump while the liquid flow out from the discharge hole by free flow and undercurrent flow. Under each filter board there is a hole with a water nozzle that the water flow out from the nozzle is called free flow, while the way brings water from each filter boars together and flow out by discharge channel is called undercurrent flow. If there are any questions about the working principle of this cooking moringa seed oil filter machine, please contact us directly!

Cruded (freshly extracted) oil contains moisture, and fiber, resins, colors etc. from the plant material, which make it darker and more opaque. These materials are removed by clarification – either by letting the oil stands undisturbed for a few days and then separating the upper layer, or by using an oil filter press. The oil is filtered through a cloth and heated briefly to 100°C to boil off any remaining traces of moisture. This is usually sufficient to meet the quality needs of customers and give a shelf life of several months when correctly packaged. However, the oil requires additional refining stages of de-gumming, neutralising and de-colouring to have a similar quality to commercially refined oils, and these stages are difficult to complete at a small scale.

Our oil filter press is characterized by convinient operation, stable technical effect, high capacity and low impurity.

Why choose GEMCO mobile rotary filter presse

GEMCO provides different types of plate and frame moringa seed oil filter machine to meet different oil filtration capacity. Our cooking moringa seed oil filter machine is designed to maximize filtration efficiency and minimize maintenance efforts based on the national and related industrial regulations. Besides, it features convenient operation, stable and long-term filtration operation, higher capacity. All the moringa seed oil filter machine have passed the ISO 9002 registration. What's more, we can design the moringa seed oil filter machine according to customers' special requirements.

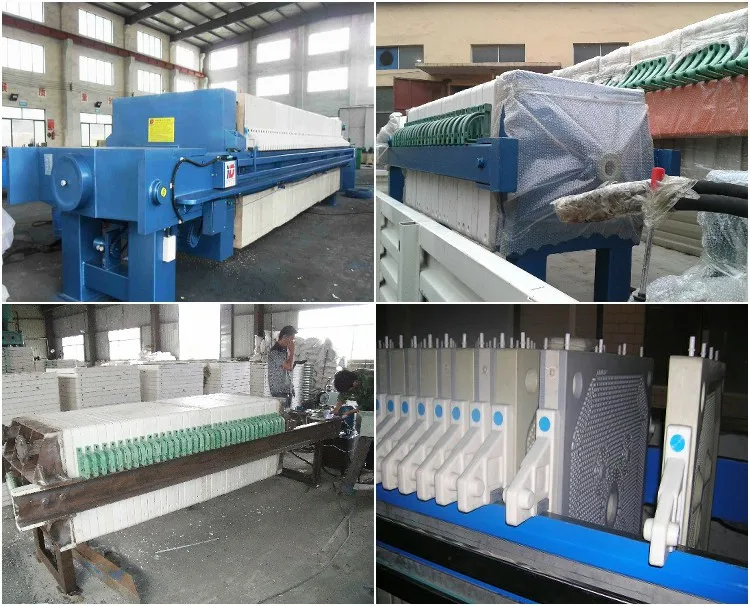

Our moringa seed oil filter press machine workshop

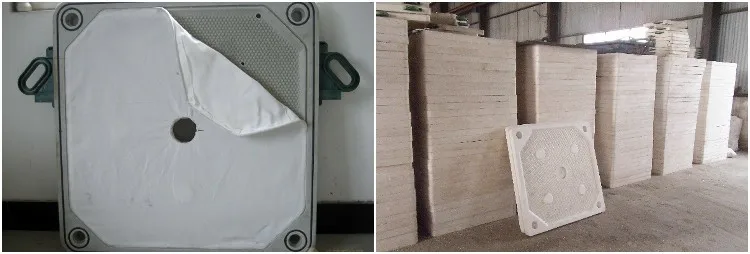

Plate and frame of moringa seed oil filter press machine

Click Now for Catalogs & Factory Price!

Honors of GEMCO cooking moringa seed oil filter machine

GEMCO cooking moringa seed oil filter machine has owned good reputation among worlds' customers due to its premium quality and outstanding features. Also, it has been awarded various quality authentications from government institutes and the golden supplier of alibaba. In conclusion, we are your right and reliable cooking moringa seed oil filter machine supplier. We are always at your sides.

Packing and logistics of GEMCO moringa seed oil filter machine

We always put our customers' interests into the first place. Therefore, we are highly focused on every details, including the packing and shipment. But, if there have any extra needs for the pakcing or delivery, please contact us without any hesitation.
