COOLING SYSTEMS/CENTRAL GROUP FRIDGE

WEB SITE WWW.CEPITALY.COM

EQUIPMENT FOR WINE

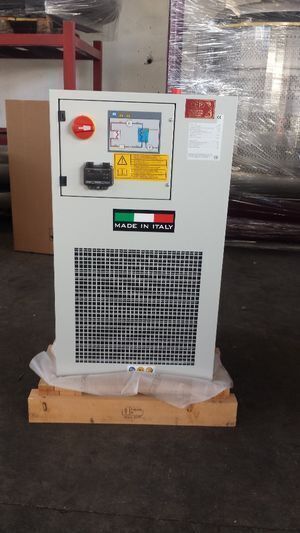

CENTRAL GROUP FRIDGE-MOD "T" WITH HEAT PUMP MOD "H"
                        -Insulated storage tank
                        -Circulation pump in stainless steel bars par 3 mod P3 Prevalence 2.5 bar
                        -Compressor soundproof and airtight
                        -Kit Manual water loading
                        -Grid-Wire Battery Protection Condensing
                        -Brine System Brine Temperature -10 ° c
                        -Digital Microprocessor Control Chiller 400 volt 50 Hz three-phase
                        -Refrigerant gas R-410a (Eco-Friendly)
                        -Mod. "T" Mini Group (Performance calculated Environment

                         temperature 35 ° C inlet temperature +12 ° c brine outlet 7 ° c)
                        -Model "H" with Heat Pump (Performance calculated temperature 7 ° C

                           water temperature 40/45 ° c)

    350              T 5.1 kcal/h 4,390 Yield 5.1 kw accumulation tank 40 lt.
                        Pump flow rate = 14 l / min Total power kw 2,58
    351              H 5.1 w/Heat Pump Output 5.6 kw Mis. 907x657xh1202 kg. 180

    352              T 6.1 kcal/h 5,250 Yield 6.1 kw accumulation tank 40 lt.
                        Pump flow rate = 17 l / min Total power kw 2,98
    353              H 6.1 w/Heat Pump Output 6.9 kw Mis . 907x657xh1202 kg . 190

    354              T 8.1 kcal/h 6,710 Yield 7.8 kw accumulation tank 40 lt.
                        Pump flow rate = 22 l / min Total power  kw 3,62
    355              H 8.1 w/Heat Pump Output 8.8 kw Mis . 907x657xh1202 kg . 200

    356              T 10.1 kcal/h 7,915 Yield 9.2 kw accumulation tank 60 lt.
                        Pump flow rate = 26 l / min Total power  kw 4,21
    357              H 10.1 w/Heat Pump Output 9.9 kw Mis . 1207x657xh1202 kg.230


                          T 13.1 Kcal/h 11,270 Yield 13.1 kw accumulation tank 60 lt.
                        Pump flow rate = 37 l / min Total power kw 5,51
    359              H 13.1 w/Heat Pump Yield 14.5 kw Mis . 1207x657xh1202 kg.240

    360              T 15.1 kcal/h 13,070 Yield 15.2 kw accumulation tank 60 lt.
                        Pump flow rate = 43 l / min Total power kw 6,31
    361              H 15.1 w/Heat Pump Yield 17.1 kw Mis . 1207x657xh1202 kg.255


                          T 20.1 Kcal/h 16,942 Yield 19.7 kw accumulation tank 110 lt.
                        Pump flow rate = 56 l / min Total power  kw 8,22
    363              H 20.1 w/Heat Pump Yield 21.6 kw Mis . 1808x868xh1471 kg.350

    364              T 26.1 Kcal/h 22,446 Yield 26.1 kw accumulation tank 110 lt.
                        Pump flow rate = 74 l / min Total power  kw 10,62
    365              H 26.1 w/Heat Pump Yield 29.0 kw Mis . 1808x868xh1471 kg.365

    366              T 30.1 Kcal/h 25,972 Yield 30.2 kw accumulation tank 200 lt.
                        Pump flow rate = 86 l / min Total power  kw 12,14
    367              H 30.1 w/Heat Pump Yield 32.7 kw Mis . 1808x868xh1471 kg.380

    368             T 34.1 Kcal/h 28,638 Yield 33.3 kw accumulation tank 200 lt.
                        Pump flow rate = 95 l / min Total power kw 13,99
    369              H 34.1 w/Heat Pump Yield 36.7 kw Mis . 1808x868xh1471 kg.460

    370              T 39.1 Kcal/h 33,798 Yield 39.3 kw accumulation tank 200 lt.
                        Pump flow rate = 112 l / min Total power kw 16,09
    371              H 39.1 w/Heat Pump Yield 43.5 kw Mis . 1808x868xh1471 kg.480

    372              T 45.2 Kcal/h 37,238 Yield 43.3 kw accumulation tank 200 lt.
                        Pump flow rate = 124 l / min Total power kw 18,69
    373              H 45.2 w/Heat Pump Yield 49.3 kw Mis . 2408x1108xh1774 kg.560

    374              T 53.2 Kcal/h 45,322 Yield 52.7 kw accumulation tank 300 lt.
                        Pump flow rate = 151 l / min Total power kw 20,5
    375              H 53.2 w/Heat Pump Yield 59.8 kw Mis . 2708x1108xh1895 kg.620

    376              T 59.2 Kcal/h 50,138 Yield 58.3 kw accumulation tank 300 lt.
                        Pump flow rate = 167 l / min Total power kw 23,4
    377              H 59.2 w/Heat Pump Yield 66.7 kw Mis . 2708x1108xh1895 kg.635

    378              T 66.2 Kcal/h 56,846 Yield 66.1 kw accumulation tank 300 lt.
                        Pump flow rate = 189 l / min Total power kw 25,5
    379              H 66.2 w/Heat Pump Yield 74.5 kw Mis . 2708x1108xh1895 kg.665

    380              T 75.2 kcal/h 64,500 Yield 75.0 kw accumulation tank 300 lt.
                        Pump flow rate = 215 l / min Total power kw 30,4
    381              H 75.2 w/Heat Pump Yield 86.0 kw Mis . 2708x1108xh1895 kg.680

    382              T 90.2 Kcal/h 76,626 Yield 89.1 kw accumulation tank 500 lt.
                        Pump flow rate = 255 l / mi Total power n  kw 35,6
    383              H 90.2 w/Heat Pump Output 101 kw Mis . 3408x1108xh2195 kg.870

    384              T 98.2 Kcal/h 83,764 Yield 97.4 kw accumulation tank 500 lt.
                        Pump flow rate = 279 l / min Total power kw 38,2
    385              H 98.2 w/Heat Pump Output 111 kw Mis . 3408x1108xh2195 kg.950
                                                                                                                                                                                                      T 110.2 Kcal/h 94,600 Yield 110 kw accumulation tank 500 lt.
                        Pump flow rate = 315 l / min Total power kw 44,5
    387              H 110.2 w/Heat Pump yield 138.3 kw
                        Mis . 3408x1108xh2195 kg . 1020

    388              T 126.2 Kcal/h 108,102 Yield 125.7 kw accumulation tank 500 lt.
                        Pump flow rate = 360 l / min Total power  kw 50,8
    389              H 126.2 w/Heat Pump yield 158.0 kw
                        Mis . 3708x1108xh2212 kg . 1100

    390              T 145.2 Kcal/h 124,012 Yield 144.2 kw accumulation tank 500 lt.
                        Pump flow rate = 413 l / min Total power kw 56,8
    391              H 145.2 w/Heat Pump yield 181.0 kw
                        Mis . 3708x1108xh2212 kg . 1160
