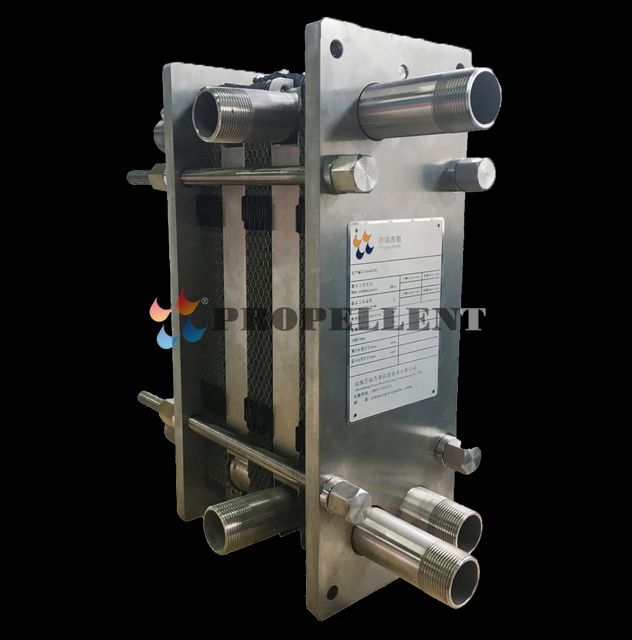

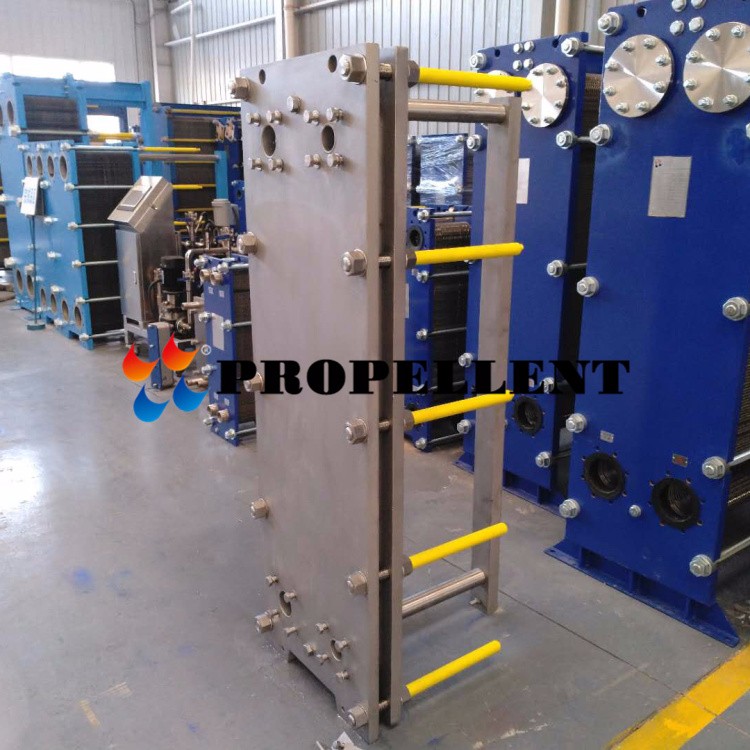

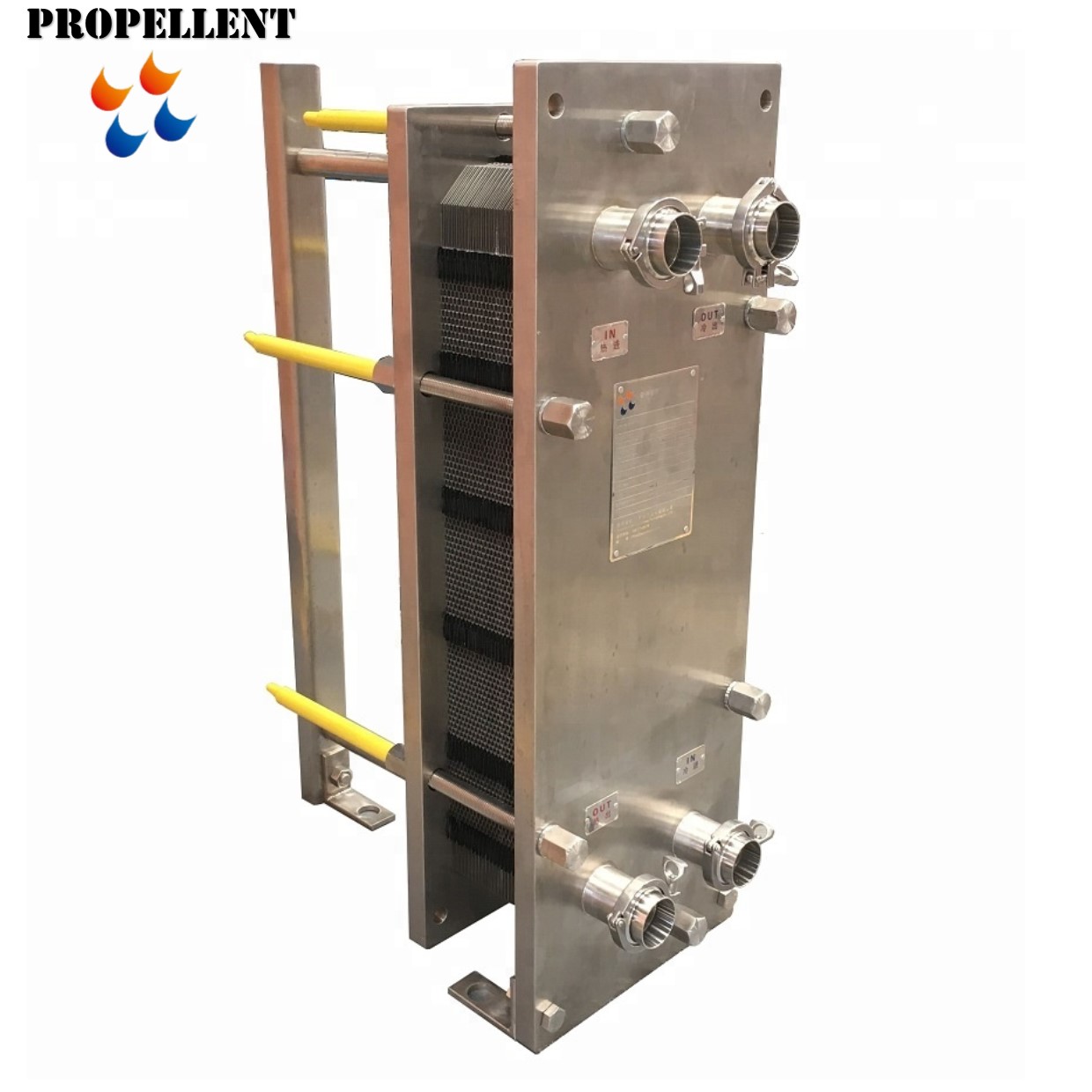

VT04 VT10 VT20 VT40 Milk pasteurization machine SS316 plate heat exchanger

Basic Information
Each plate contains two parts:

Metal plate: It is an important heat transfer element for pressing metal plates with corrugations, sealing grooves and corner holes.
Corrugation can not only enhance heat transfer, but also increase the rigidity of the plate, thereby improving the load-carrying capacity of the plate heat exchanger, and because the turbulence promotes the liquid state, it can reduce the formation of deposits or dirt, and play a role in "self-cleaning" role.
Sealing gasket: Installed in the groove along the perimeter of the plate between the gasket and the periphery of the sealing plate to prevent the fluid from leaking outwards, and according to the design requirements, the angle of the hole of the sealing part, the flow of hot and cold liquids according to their respective ports.

Sealing principle:

The corrugated plate is pasted with a sealing gasket, which is designed as a double sealing structure and has a signal hole. When the medium leaks from the first seal, it can leak from the signal hole, which can detect and solve the problem at the first time. possible without causing mixing of the two media. The sealing gasket should choose different types of rubber according to different media and working temperature.

1. Advanced plate design improves heat transfer efficiency.

2. The fluid distribution is even and the positioning is accurate.

3. Common plate heat exchanger plate type at home and abroad.

4. Reasonable shunt area, enhanced corrosion resistance, and improved utilization of heat exchange area.

5. The two fluids flow in reverse, which greatly improves the heat exchange efficiency.

6. The inlet and outlet of the same fluid are piped in parallel to simplify engineering installation.

7. Single board, simplifying maintenance.
