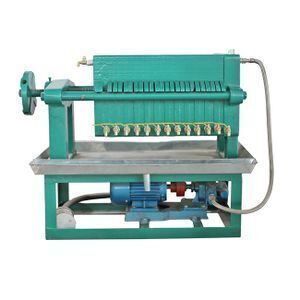

New small cooking oil filter machine /edible oil plate and frame filter press machine

Product details
Applicable Industries:Manufacturing Plant,Farms;After Warranty Service:Video technical support,Online support;
Power:0.75kw,0.75kw;Item:filter press price;
Automatic Grade:Automatic;Condition:New;
Certification:CE,ISO;Warranty:1 year;
Place of Origin:Hubei China;Marketing Type:Hot Product 2019;
Showroom Location:None;Weight:180kg,180kg;
Supply Ability:100 Unit/Units per Month coconut oil filter;Warranty of core components:1 Year;
Processing Types:various oil machine;Machinery Test Report:Provided;
Filter Type:Liquid;Technology support:life time;
Port:Qingdao,Wuhan,Shanghai;Dimension(L*W*H):890*550*765 mm,890*550*765 mm;
Voltage:220V/380V,220V/380V;Driving Force:Electricity or diesel engine;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,crude oil refinery;Performance:High efficient and Stable , large capacity;
Core Components:PLC;After-sales Service Provided:Online support;
Video outgoing-inspection:Provided;Packaging Detail:Standard Export Wooden Case Package or as Required for New small auto cooking oil filter machine /edible oil plate and frame filter press machine;
Brand Name:HDC;Local Service Location:None;

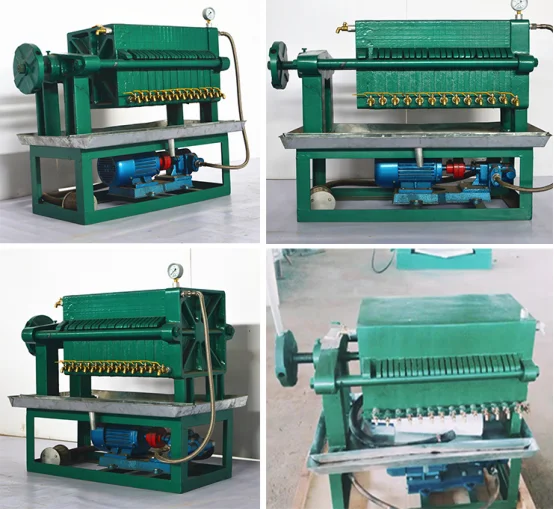

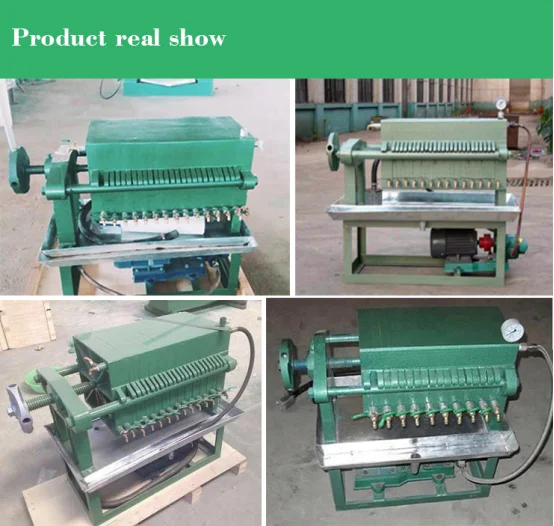

New small cooking oil filter machine /edible oil plate and frame filter press machine

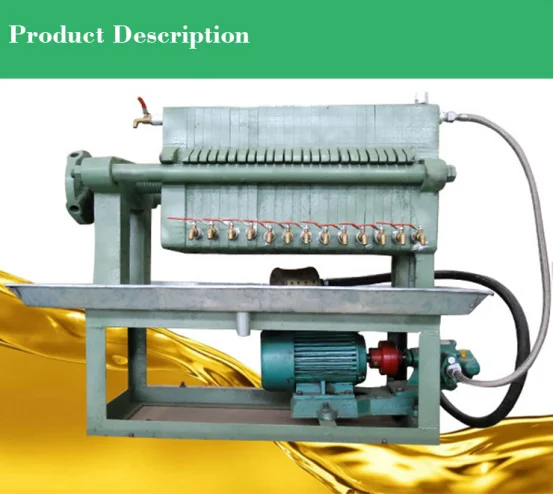

Product Description

This machine is used for filtering the crude oil pressed out by screw typeoil press and can be matched with oil press model 68 ,80 ,95 ,100 ,120 ,160 for combined operation .In the oil processing industry, plate and frame filter press for edible oil is used to separate solids and liquids from the crude oil for cooking and edible purpose.

The serial products of frame typed oil filtering machine are ideal equipment for edible oil plant and individual oil pressing house .

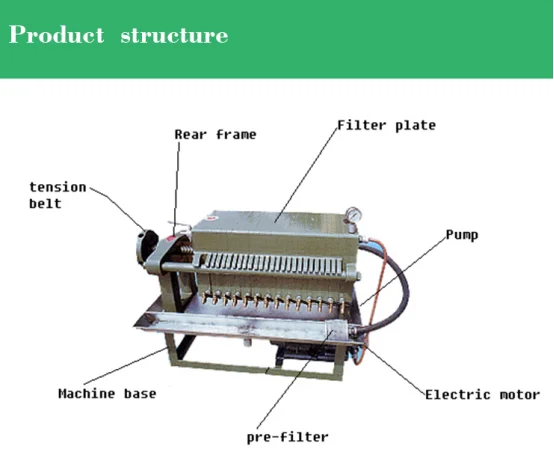

Product structure

The plate and frame filter press for edible oil is formed by filter boards and filter frames or filter boards rows (box-type). Under the function of conveying pump, it press the suspension liquid into filter rooms and through filter intermediaries (filter cloth, filter paper and filter membrane) to separate solid and liquid.

Technical parameters

Model

Capacity

Power

Weight

Dimension

6LB-250

80-100 kg/h

0.75 KW

180 kg

890*550*765 mm

6LB-350

180-200 kg/h

1.1 KW

500 kg

1200*660*910 mm

Function:

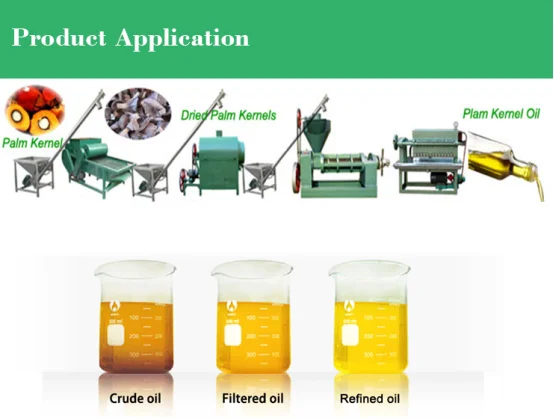

Filter and clean the crude oil firstly to remove most of the mechanical impurities before going to the oil refining process or get cooking oil directly.

Also, it is used in the oil refining process to remove impurities.

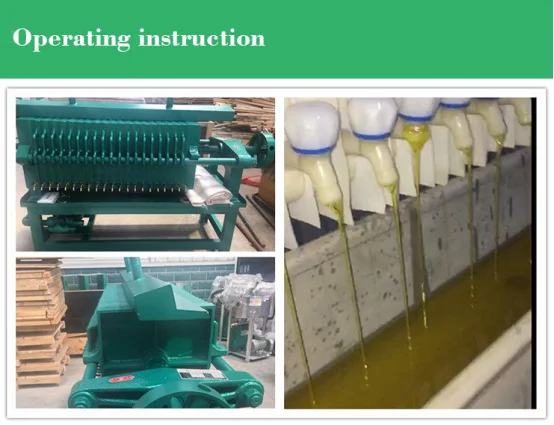

Operating instruction:

When plate and frame filter press for edible oil is working, all the pipe clips should be tightened to prevent the oil from leaking. Filtering cloth should be put between the filter plates, and then lightened by tension bolt to make sure no leakage exists. Under the normal operation, the oil will come out 2 or 3 minutes after starting the press. If no oil comes out, please stop the press or inspection that if the oil pipe is clogged up or not. Under the filter piate. The valve is mounted which will be used when some filtering cloth is broken or the oil looks dirt.

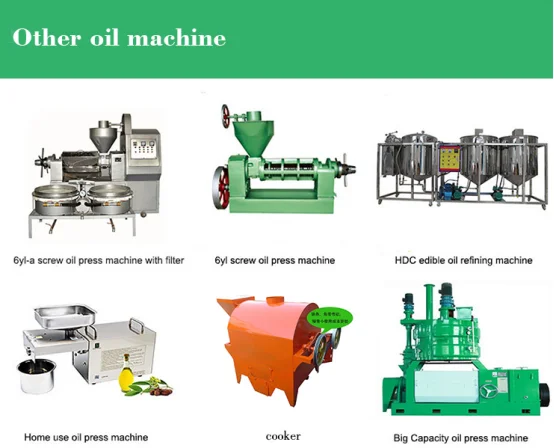

Related Products

We are professional manufacturer of various oil pressing machines and equipment with over 20 years experience.

We supply mini oil press for home use, hydraulic oil press, screw oil press and integrated screw oil press for medium and large production use, various oil seeds processing machines like oil seeds cleaning/sifting machine, oil seeds shelling machine, oil seeds crushing machine, oil seeds roaster etc.

Besides, we also provide oil filtering machines, oil refinery plant, various customized oil production lines, oil filling packaging lines for your selection.

Welcome your inquiry and order.

Packaging & Shipping

FAQ

Q: What is your terms of payment ?

A: T/T 30% as deposit, and 70% before delivery.

we will ask for your confirmation of machines via photos or video before your balance payment.

Q: How long is your delivery time?

A: Generally 5-10 days if the goods are in stock. 15-20 days if the goods are not in stock, depent on the specifci situation.

Q: What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q: Hoa about your after-sale service ?

A: We have professional stuff to supply technical guide and support on operation and maintance, and also supply manuals and videos.
