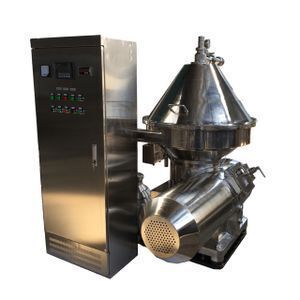

Juice beer centrifugal separator

Product details
stainless steel bowl and hood:cast iron case;Place of Origin:Jiangsu China;
Payment Terms:T/T;Warranty:1 Year;
Port:FOB shanghai;Processing Types:Juice;
Applicable Industries:Food & Beverage Factory;Brand Name:head;
Model Number:PJLDH100;Supply Ability:5 Set/Sets per Month;
Processing:Separater;After-sales Service Provided:No after-sales service;

PJLDH100  beverage disc separator is the most important equipment in food industry. Mainly used in the purifiedbeverage beer juice fruit wine coffe tea, and removal of foreign impurities in the beer. Similar materials can also be used for clarification and purification.This product absorbs the advantage of the same kind foreign product in Germany and Russia. All the parts that may contact the feedstock are made of stainless steel. Availably reduce the chemical effect of the feedstock and the machine spare parts.Power drive adopts the triction clutch, Transfer power by the fluid, start reliably, prevent overland. The bearings used

the machineare SKF grade in Sweden., guarantee working precision of the machine.The separator adopts the PLC automatic control system,can carry out automatic de-slugging, ability of fitness is stronger, automatic degree is high. Easy to adjust, worker

 labor strength is opposite to ease, the solids content ratio in the mixture fluid is widely.When working,the sealing water 7 is bumped

Into the sealing room 6,rising the sliding piston,and sediment ejection hole 3 is shutted down. then, Milk to be processed are fed to the bowl from feeding pipe 1, Under the effects of centrifugal force, the solids which has heavier density is collectedon the bowl wall, After a while, the opening water 7 is bumped into the opening room 5, falling the sliding piston,open the sediment ejection hole 3, impurities are desluged from the bowl. The lighter liquid (mikl) flow along the inner side of the discs into the passage in the upper distributor,the lighter liquid is discharged from the machine by the centripetal pump2. Thus the milk is clarified well. The separator adopts self de-slugging and centripetal pump. Thus the machine can work continuously for a long time, attain good separation effects in long run.













Mainly technology data

Bowl

mm

540

Bowl speed

r/min

6000

Product

L/h

10000

Power

KW

15

Output mode

centripetal pump

Output pressure

MPa

0.45

De-sluggingmode

PLC

Impurity in clarified milk

≤2mg/kg, ≤2μmm

Height

Kg

1500

Overall dimension

L*W*H

1400*1000*1800
