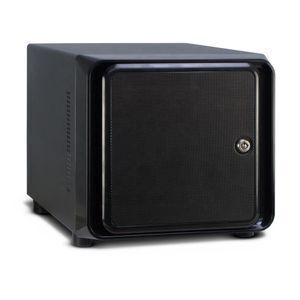

4 bay nas case itx computer networking storage server case

Product details
USB:USB 2.0X1, USB 3.0X1;Products Status:Stock;
Dimension:191*197*254mm;Brand Name:NOTCHPOWER/OEM;
HDD bays:3.5 "or 2.5" external (hot-swap) 4pcs;Front Panel:Control button, Indicator, USB Ports, Security Lock;
Fan:8025 with the PWM 4pin * 1 function;Place of Origin:Guangdong China;
Customized Items:LOGO and others;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certification:FCC.ROHS.CE;Packaging Detail:Carton box with PE/Polyfoam Pallet (optional);
Interface Type:USB;Supply Ability:1000 Piece/Pieces per Day;
Motherboard Supporting:Mini ITX (17cm*17cm);Model Number:ITX-NAS4;
Port:China;CPU:Height CPU cooler (max.) 43mm;
Power Supply:1U / Flex 1U power supply ( max length 19cm);

Product Description



ModelNP-NAS4
Form FactorITX-NAS4 Black Mini-ITX Form Computer Storage server Case
MateialMetal material SGCC
Metal thickness1.0mm
SecurityFront door with lock
M/B supportMini ITX (17cmX17cm)
CPU supportHeight CPU cooler (max.) 43mm
Length graphics card (max.) 190mm
SizeD*W*H(mm)191*197*254
D*W*H(inch)7.5*7.75*10
Drive Bay3.5 "or 2.5" external (hot-swap) 4
Internal 2.5"  bays1
Power Supply support1U / Flex 1U power supply ( max length 19cm)
Front panelControl buttonPower ON/OFF x 1, system reset x 1
IndicatorPower ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
PortsUSB 2.0 x 1 , USB3.0 x 1
ExpansionRiser Slot1pc (full size)
Hot-swap BackplaneS-ATA / SAS backplane (up to 12Gbit / s)
System cooling(optional)Rear80x80x25 mm with the PWM 4pin x 1 function
Net weight3kg
Gross weight3.4kg
Packing sizeD*W*H(mm)313*235*240
D*W*H(inc)12.3*9.25*9.4
Packing MaterialPolyfoam with carton box
Environment Temperature0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity5% to 95%,non-condensing
Vibration ( 5-500 Hz )1 Grms (Operating), 2 G (Non-Operating)
Shock 10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
