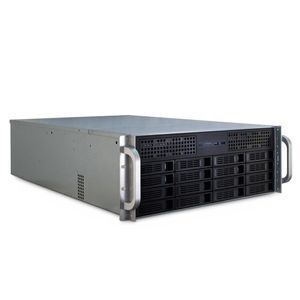

4U Rackmount Server case with 16 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector

Click here to contact

Product details

Model Number:	NP-S416650;	Motherboard Supporting:	ATX\Micro ATX\Server;
Brand Name:	NOTCHPOWER/OEM;	Place of Origin:	Guangdong China;
Single package size:	83X55.5X24 cm;	Selling Units:	Single item;
Power Supply Support:	ATX / mini redundant power supply;	Interface Type:	USB;
Fan:	4X4028, 3X12025, 2X8025;	Single gross weight:	17.5 KG;
Front Panel:	Control button, Indicator, USB Ports;	Customized Items:	LOGO and others;
Drive Bays:	3.5 "or 2.5" external (hot-swap) X16pcs;	Packaging Detail:	Carton box with PE/Polyfoam Pallet (optional);
Certification:	FCC.ROHS.CE;	Dimension:	650 x 482 x 176mm;
Backplane:	S-ATA or SAS backplane (12Gbit / s max);	USB:	USB 2.0X1, USB 3.0X1;
Products Status:	Stock;

Product Description

Model	NP-S416650
Form Factor	4U Rackmount Server case with 16 Hot-Swappable SATA/SAS Drive Bay, MiniSAS /SATA connector
Material	Metal material	SGCC
	Metal thickness	1.2mm
	Panel material	Metal
	Handle material	Metal
M/B support	EEB (12″ x 13″), microATX (9.6″ x 9.6″), CEB (12″ x 10.5″), ATX (12″ x 9.6″), Mini-ITX (6.7″ x 6.7″)
CPU support	DP Xeon(Intel)/DP Opteron(AMD)/Core(Intel)
Size	DWH(mm)	650 x 482 x 176
Size	DWH(inch)	25.5 x 19 x 7
Drive Bay	3.5 "or 2.5" external (hot-swap)	16
Drive Bay	External 5.25" bays	2
Power Supply support	ATX power supply / mini redundant power supply
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB 2.0 x 1 , USB3.0 x 1
Expansion	Riser Slot	7pcs (full size)
Hot-swap Backplane	S-ATA or SAS backplane (12Gbit / s max)
System cooling(optional)	Front	4x 40mm (standard)
	Middel	3x 120mm or 4 x 80mm ball bearing fans PWM (hot-pluggable)
	Rear	2x 80mm (standard)
Net weight	15kg
Gross weight	17.5kg
Packing size	DWH(mm)	830555240
Packing size	DWH(inch)	32.721.89.4
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
