NAS Chassis 4U 19-inch Rackmount 12-Bay Hot-swappable Server Storage Chassis CCTV Storage Server

Supplier: EUROMICRON MOULD ENGINEERING LTD
Region: Guangdong, China
Contact: Mr Tyrone He
Price: $144.00 / 1 - 49 units
$136.00 / >=50 units
Min. Order: 1 unit

Click here to contact

Product details

hard disk:	12 hot-swappable 3.5-inch hard drives	Panel settings:	2*USB2.0, power switch with indicator light, reset, hard disk indicator light
Chassis color:	Black	payment terms:	wire transfer, paypal
Expansion slot:	No	motherboard:	77(170170)
CD:	Noah	port:	Shenzhen
Origin:	Guangdong, China	Case material:	SGCC thickness: 1.2MM
power supply:	Compatible with 1U power supply or flexible power supply	model:	R428-12
product name:	12-Bay Hot-Swap Server Storage Enclosure	Package preview:
fan:	2 silent fans	Interface Type:	ESATA, RJ-45 interface, USB
Supply capacity:	5000 pieces per month	brand:	slight
Packaging Details:	carton, pallet	product status:	in stock

Product Description

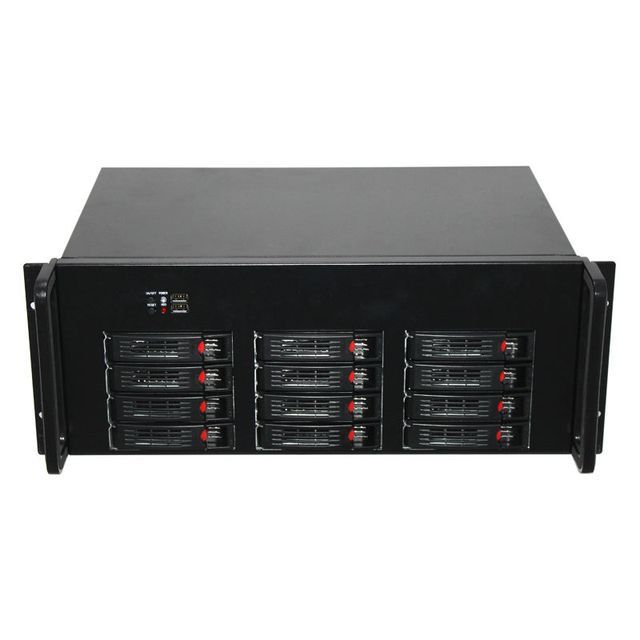

4U 19-inch rack-mount 12-bay hot-swappable server storage box CCTV storage server

Black 12-Bay ITX NAS Server Storage Box

This ultra-memory-configured server chassis is ideal for situations where space is at a premium but high-density storage is critical.

The internal storage bay configuration providesHigh drive flexibilityalthoughAllows for full ITX motherboardsBe exploited.

feature

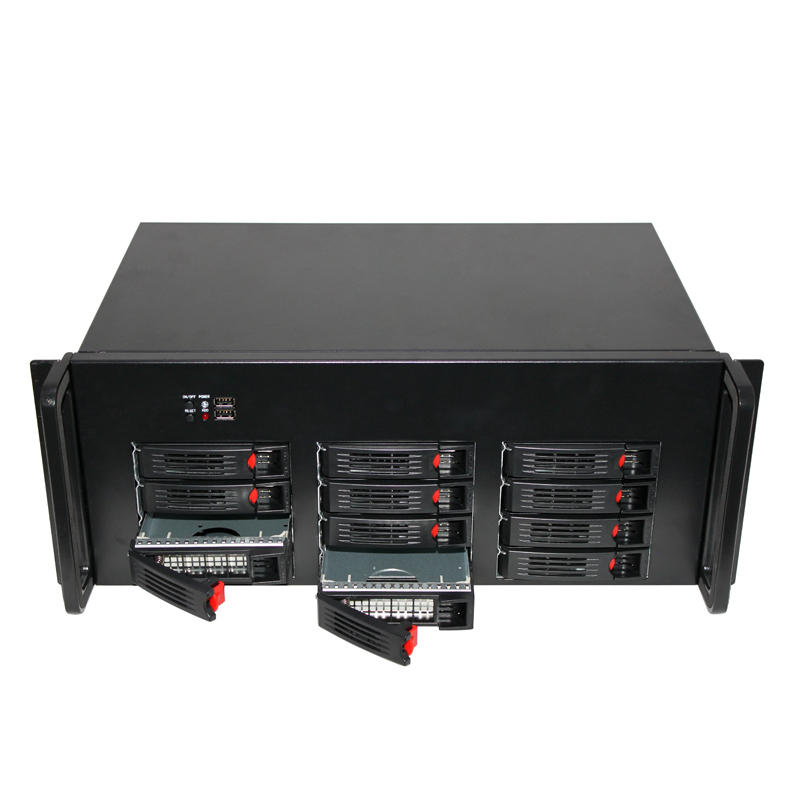

▶12 x hot-swap SATA/SAS ports, 12x3.5″ OS drive bracket forMaximum configuration flexibility. ,return2-12 bays arechoose.

▶Support mini ITX motherboard.
▶Standard with two 120mm fansSuperior airflow.

▶Support SATA backplane.

▶Available for rack-mount and stand-alone installation.

▶ Two USB 2.0 ports
▶True isolation and anti-vibration design of internal hard drive and drive cage.
▶Support standard 1U single FLEX power supply

▶Supports all operating systems

NAS application

1. Internet server (Web/Mail)
2. Firewall/VPN, enterprise Internet applications, backup; personal storage;
3. HTPC, file server

technical details

aspect	482(W)280(D)180mm(H)
motherboard	77(170170)
hard disk	12 hot-swappable 3.5-inch hard drives
CD	No

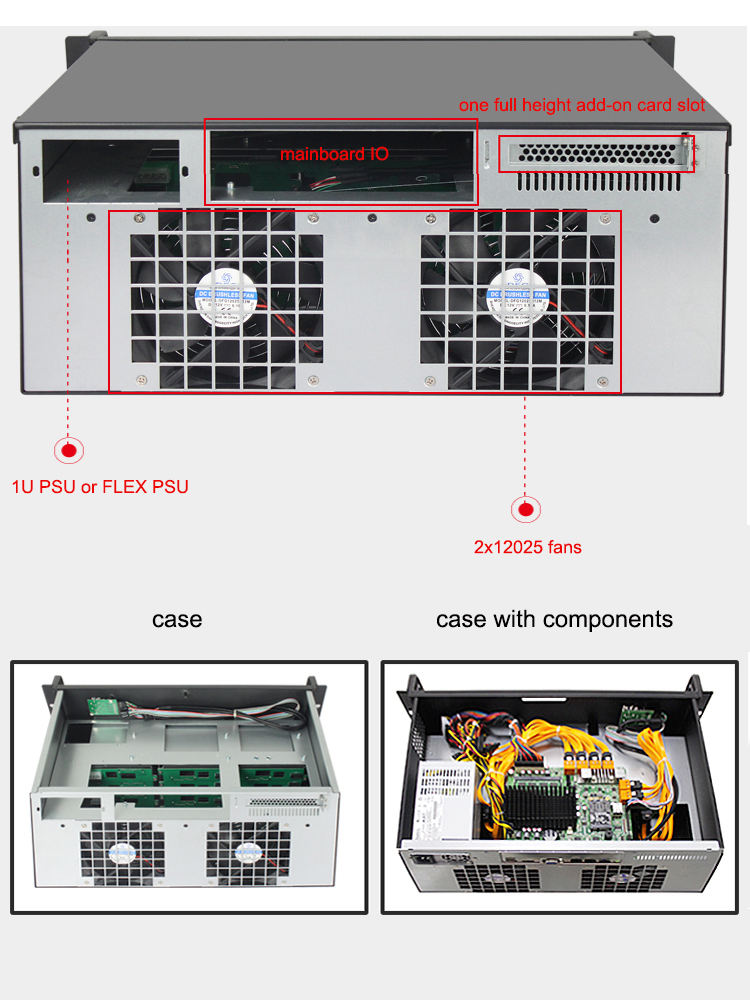

strength	Compatible with 1U power supply or flexible power supply
fan	Two 12025 fans
expansion slot	a full height slot

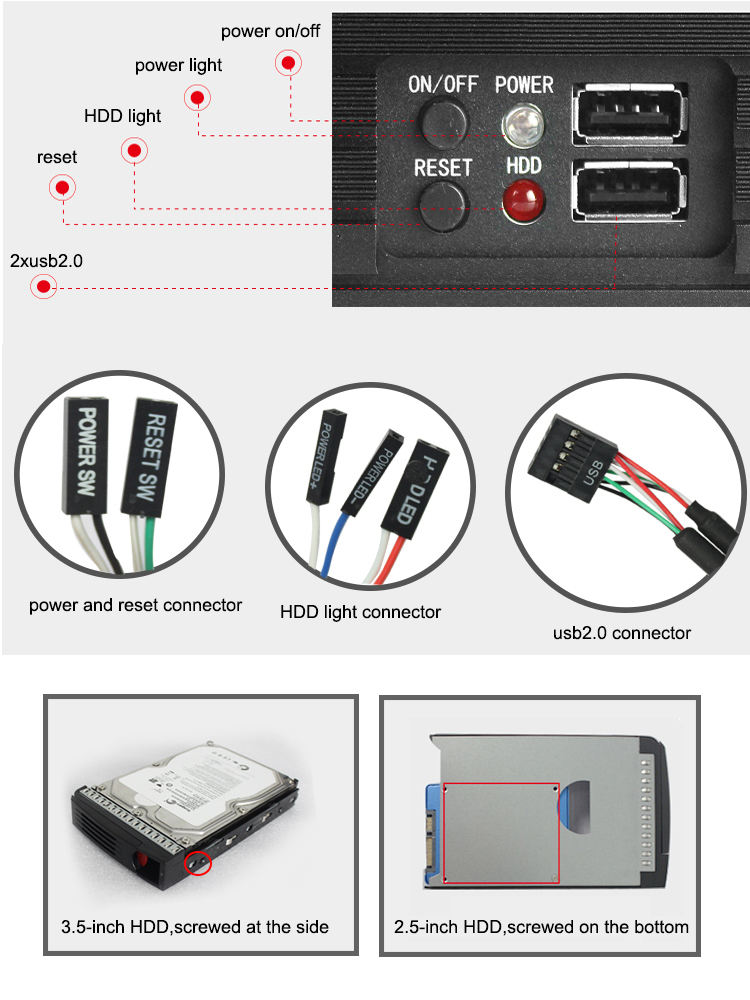

panel settings	2*USB2.0, power switch with indicator light, reset, hard disk indicator
case material	State Grid Corporation
material thickness	1.2MM
Package Size	56.542.528CM
gross weight	10.51KG
northwest	9.2KG

detailed image
