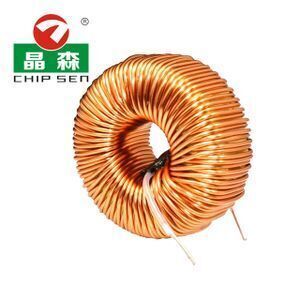

High current inductors chokes/inductor inductance/toroidal core inductor

Click here to contact

Product details

Place of Origin:	Guangdong China;	Working frequency:	High frequency;
Packaging Detail:	EPE foam + export carton, or plastic tray+export carton corton size 1: 25.5cm21.5cm21cm 2: 43.5cm24.5cm21cm;	Color:	Green;
Core:	Ferrite core;	Size:	As your needs;
Port:	Shenzhen,China;	Wire diameter:	0.1-2.0mm;
Model Number:	Toroidal choke;	Brand Name:	Chipsen;
Certificates:	SGS and UL;	Turns:	As your needs;
Supply Ability:	1000000 Piece/Pieces per Month;	Wire:	enamelled wire/Litz wire/TEX-E;
Payment Terms:	T/T;

production decriptio

Item Name	High current inductors chokes/inductor inductance/toroidal core inductor
Model No.	T1065

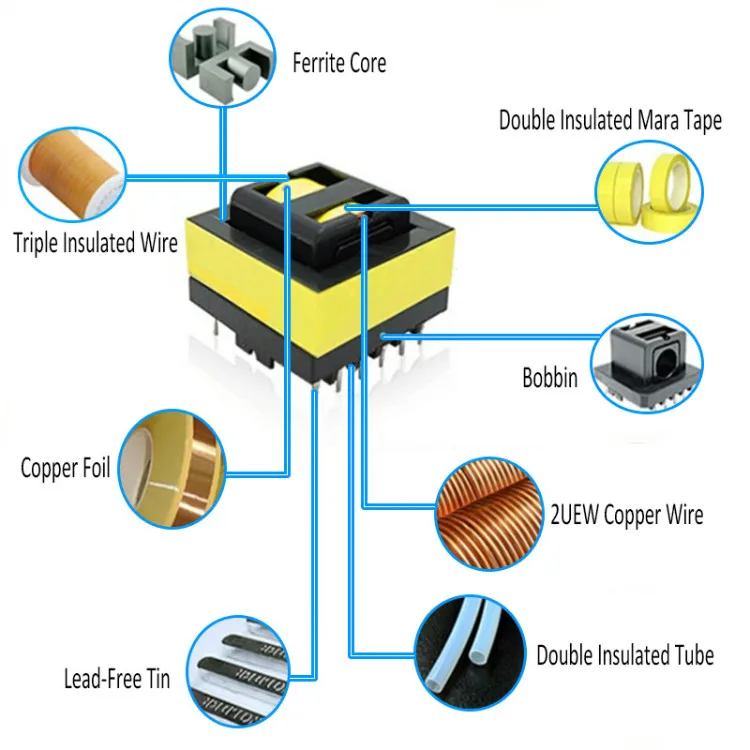

Components	Ferrite core, Copper wire;Basing;Shielding case
Core	NiZn/Iron /MnZn/MPP/Amorphous magnetic
Wire	Enameled copper wire-UEW/PEW
Functions	Power line filter/Signal line filter/Energy saving/Voltage step-up etc/Choke etc
Mounting type	Surface mount ;Through hole ; Wire lead
Shape Types	Vertical;Horizontal;with/without base;shielded/unshielded ;SMD
Coil Structure	Toroidal
Working Frequency Range	1KHZ-100MHZ
Inductance Range	1uH-1H
DCR Range	unknown-Depend on customers' request
Storage Temperature	-20℃ to +85℃
Working Temperature	-20℃ to +105℃
Storage Humidity	30% to 95%
Test Items	Ø Turns Ratio Ø Inductance Ø DC resistance test Ø Safety test Ø Current test Ø Hi-POT
Certifications	ISO9001:2008, ISO14001:2008, UL, CQC
MOQ	1000 pcs
OEM	Acceptable
Sample	Free
Sample Time	3-5 working days
Package	EPE foam + export carton, or plastic tray+export carton
Delivery time	7-15 days after order confirmed
Feature	5 years warranty High current High power High efficiency Low temperature rise Stable performance
Applications	1. VCRS, Copy machine , Audio equipment , Game machines 2. TV sets, Microcomputer equipment, printers, Terminals 3. communications control equipment 4.Switching power supply, chargers, alarm system 5. UPS, VCD/DVD players, audio and visual equipment 6. OA machines, inverters, chargers, alarm system
