Shielded wire Wound magnetic coil inductors SWPA4012S1R5NT passive component size 441.2mm smd power ferrite Inductor 1.5uh

Supplier: Shenzhen Futian District Weilinbin Trade International Firm
Region: Guangdong, China
Price: $0.10 / 100 - 1999 pieces
$0.08 / 2000 - 4499 pieces
$0.05 / >=4500 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Sitting height (maximum):	1.2 mm	Minimum order quantity:	1000 pieces
Maximum DC resistance (Ω):	0.085	Packing/box:	Tube Pallet Reel Bag
Function:	Magnetic Resin Shield	inductance:	SWPA4012S 1.5uH
type:	Wirewound SMD Power Inductors	Ask@Frequency:	100kHz, 1V
minute. Self-resonant frequency:	90	Maximum thermal current resistance (A):	1.46
brand:	Shunluo	tolerant:	±30%
feature:	RoHS, halogen-free and REACH compliance	rated power:	100kHz
Material - Core:	Magnetic resin shielding structure	letter of credit:	new
Supplier type:	OEM/ODM	application:	Smartphones, smart TVs, set-top boxes, notebooks
payment terms:	wire transfer	Dimensions/Dimensions:	441.2mm
Package preview:		Operating temperature:	-40℃~+125℃
high:	1.2 mm	Rated current current type (A):	2.2
type of packaging:	Tube Pallet Reel Bag	model:	SWPA4012S1R5NT
Payment:	wire transfer	Maximum saturation current (A):	2.1
Typical saturation current (A):	2.7	Installation type:	surface mount
Place of origin:	Shenzhen, China	Shipping:	DHL UPS FedEx EMS
Certification:	Restriction of Hazardous Substances Directive

Product Description

product name	SWPA4012S1R0NT
Material	Wire wound/STD, shielded type with magnetic glue
usage	Car navigation system, telecommunications base station

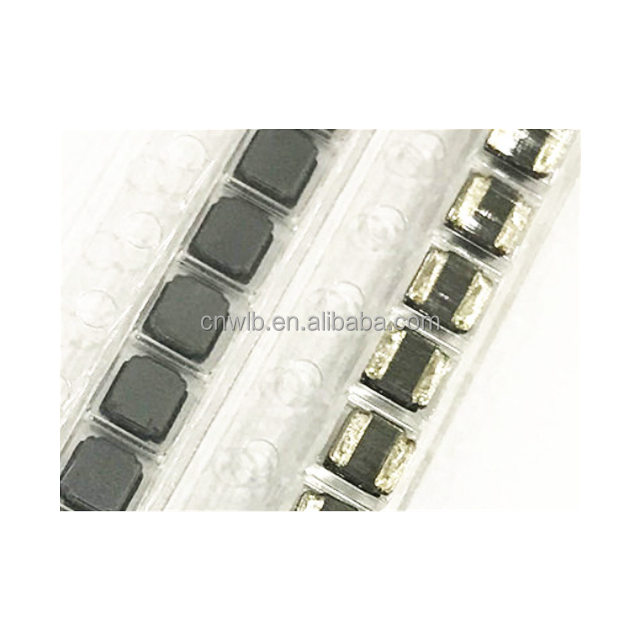

pack	5000 pieces/roll, carton

feature
1. Magnetic resin shielding structure reduces buzzing noise to ultra-low levels
2. The ferrite core is metallized and has excellent impact resistance and damage resistance.
-No durability
3. Closed magnetic circuit design reduces magnetic flux leakage and electromagnetic interference (EMI)
Rated current is 4.30% higher than conventional inductors of the same size
5. Occupies less PCB space and saves more power

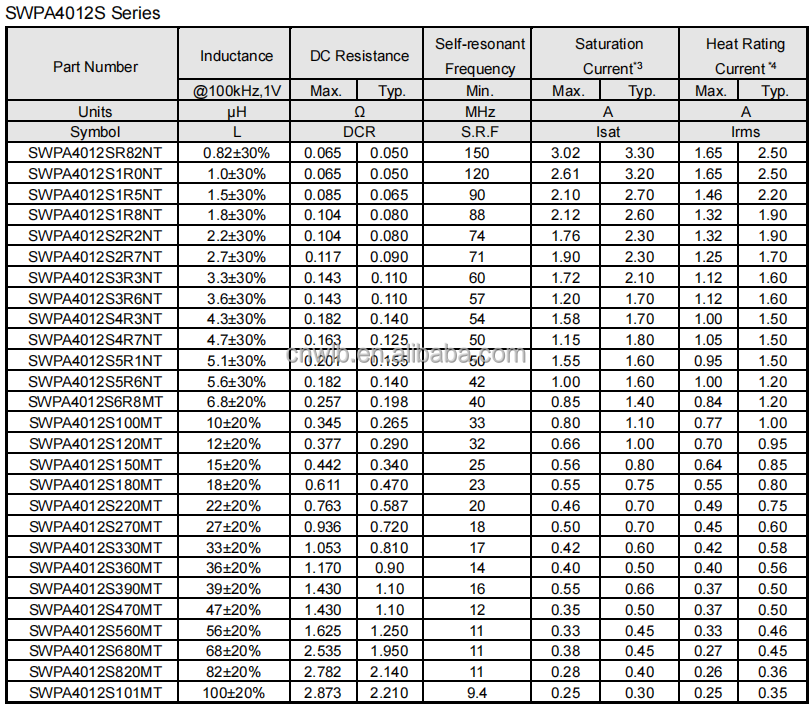

※1: All test data refer to 20℃ environment; ※2: Rated current: Isat or Irms, whichever is smaller; ※*3: Isat: DC current when the inductance value drops by about 30% compared with no current; ※* 4: Irms: DC current relative to the ambient temperature rise of 20°C (ΔT=40°C).

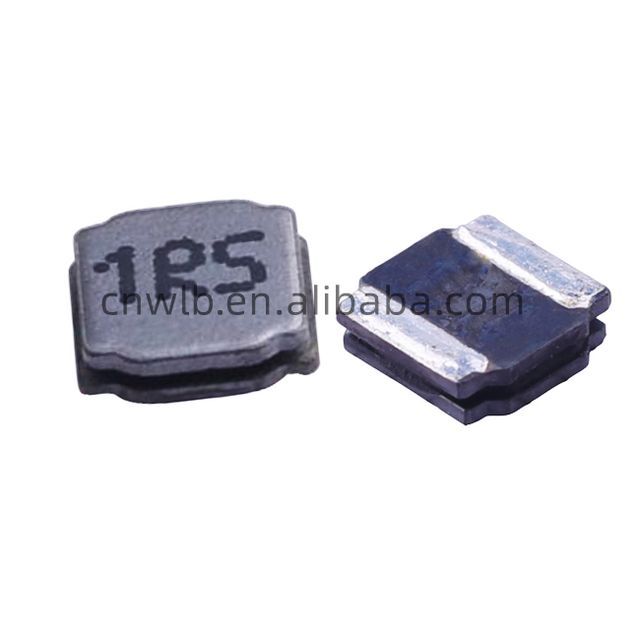

detailed picture

Product Usage

- Product usage introduction

LED lighting next generation multifunctional mobile devices such as add color TV and digital movie cameras flat screen TVs, Blu-ray disc recorders set top boxes laptops, desktop computers, servers, graphics cards portable gaming devices, personal navigation systems, personal multimedia devices.

Product usage effect description

Our products are widely used in communications, automotive electronics, LED lighting, security products, smart grids, POS machines, smart TVs, drones, robots and other fields

Application areas

1. Smartphones, smart TVs, set-top boxes,

notebook

2. Car navigation system, telecommunications base station

3. Virtual reality, augmented reality

4.LED lighting
